Engine Oil Dip Stick - Dip Stick Tube: Service and Repair



AR18.40-P-3510CV Remove/install oil dipstick guide tube
- Vehicles with rear sump

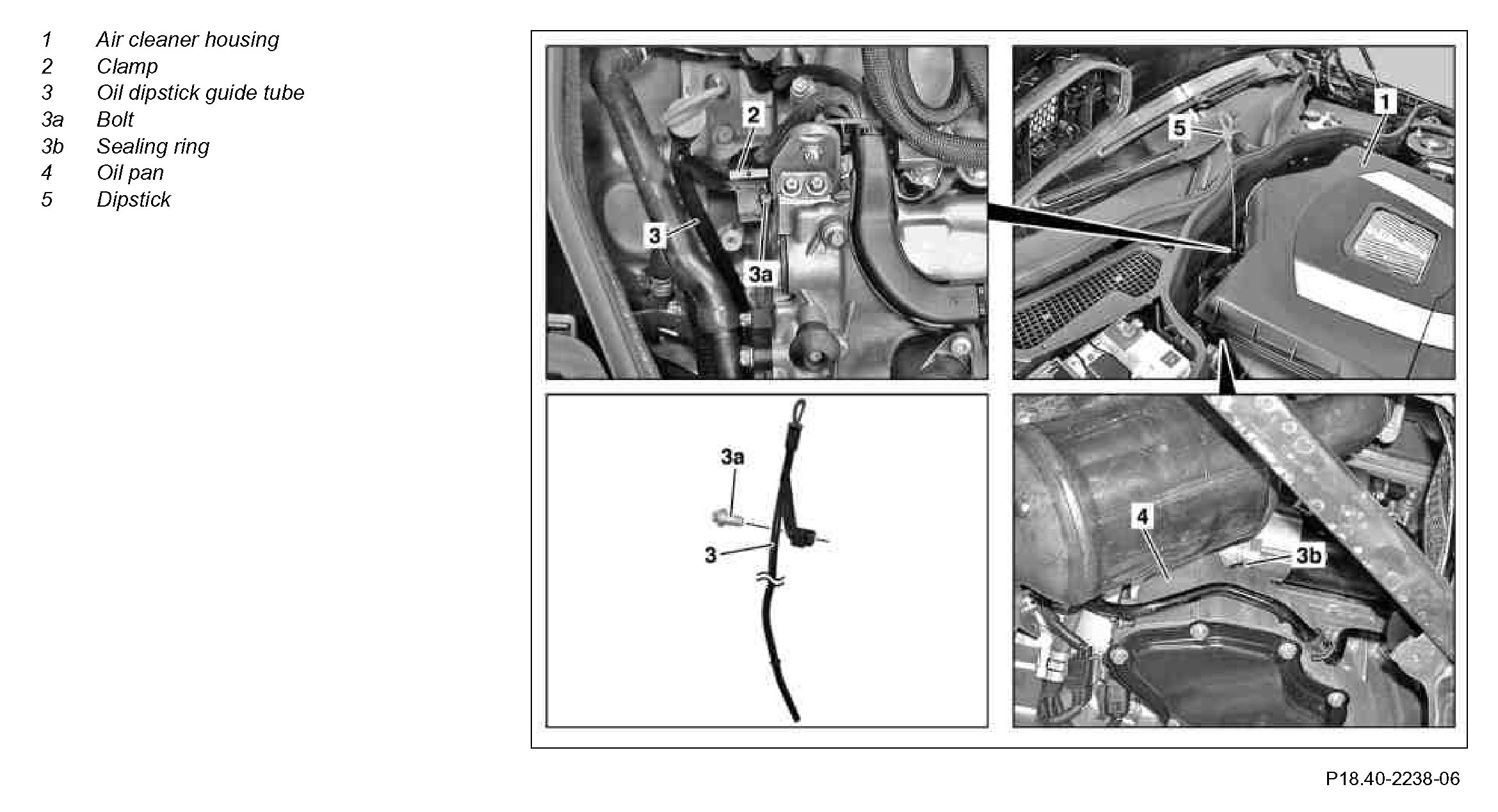

Component Identification:

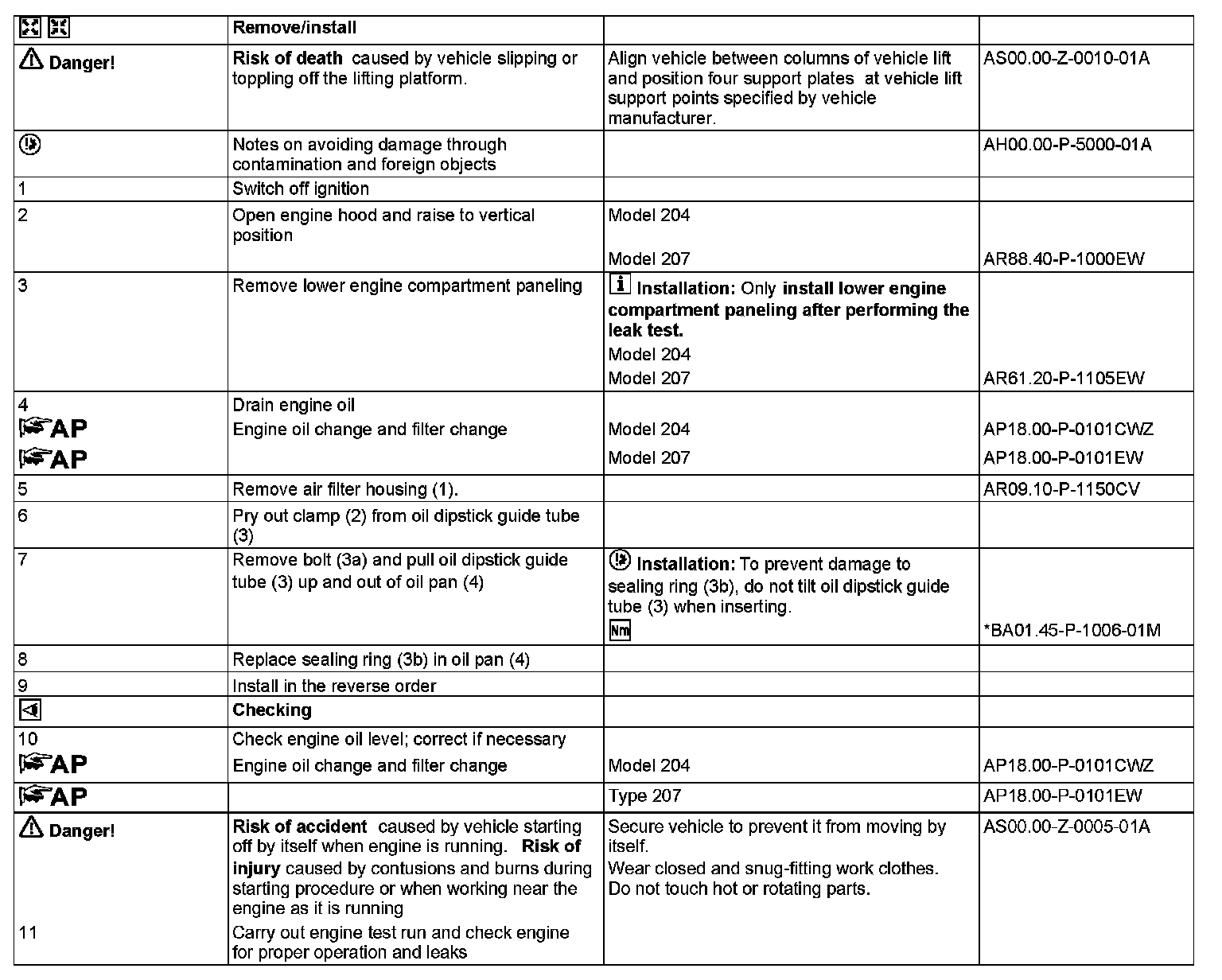

Steps 1-11:

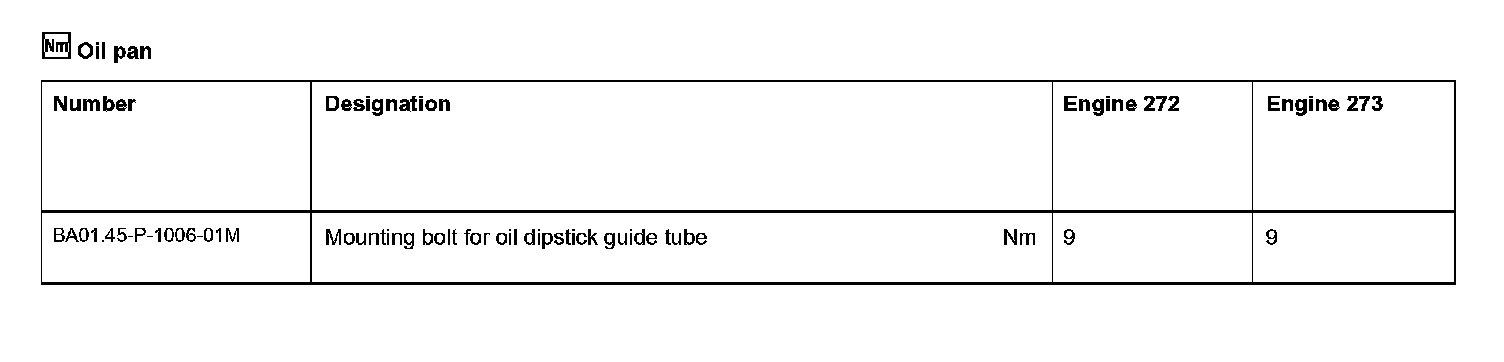

Oil pan:
