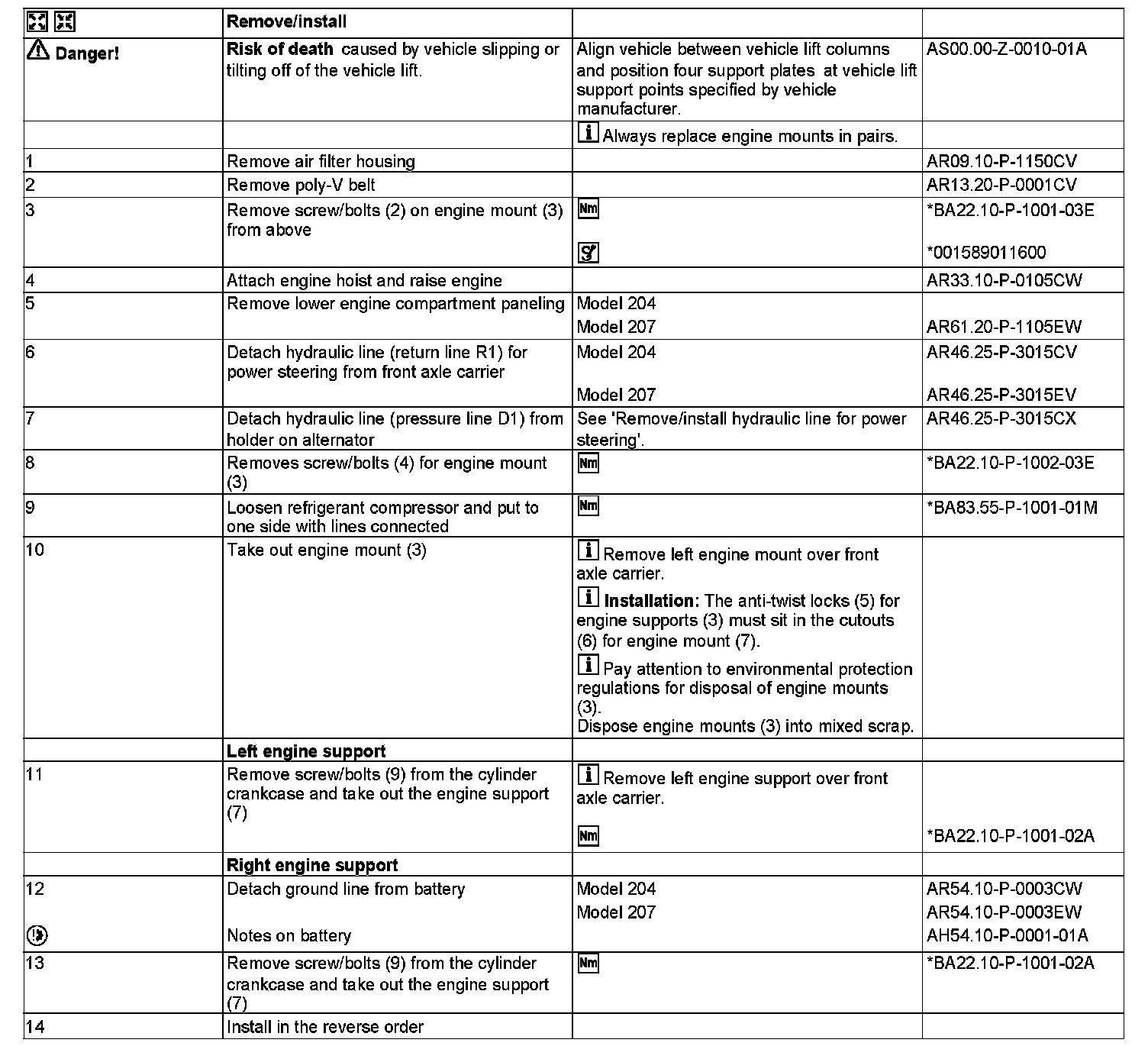

AR22.10-P-1260CV Remove/Install Front Engine Mounts and/or Engine Support

AR22.10-P-1260CV Remove/Install Front Engine Mounts And/Or Engine Support
ENGINES 272 in MODEL 204.05 /25
ENGINES 272.982 in MODEL 204.065
ENGINES 272, 273 in MODEL 207

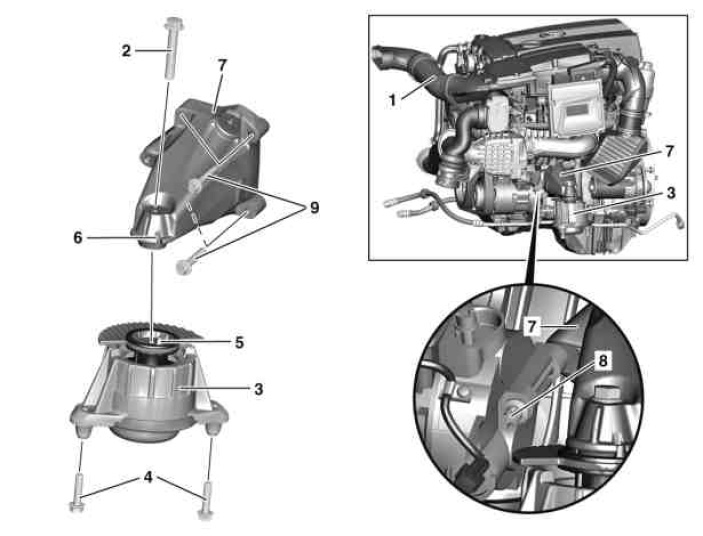

2 Screw/bolt
3 Engine mount
4 Screw/bolts
5 Anti-twist lock
6 Cutout
7 Engine support
9 Screw/bolts


























001 589 01 16 00
Set of engine bearing wrenches
