AR01.20-P-5014-03SX Bolt Tightening Procedure For Cylinder Head Cover

AR01.20-P-5014-03SX Bolt Tightening Procedure For Cylinder Head Cover





Tighten cylinder head cover bolts in the numerical sequence.

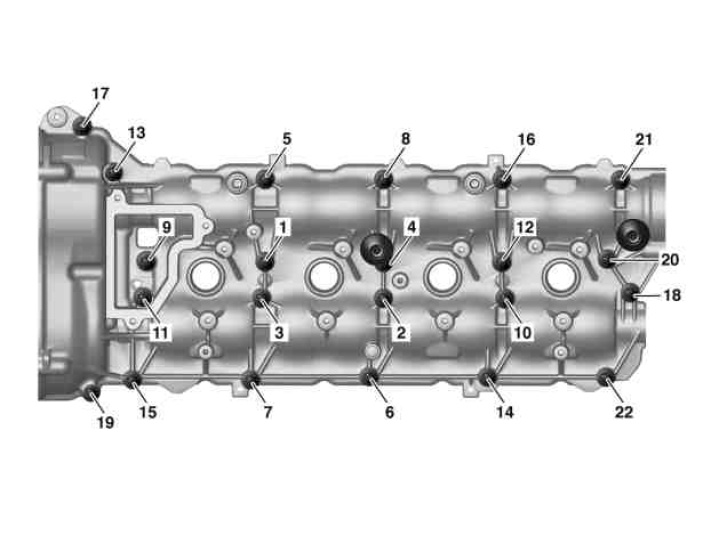

Right cylinder head cover

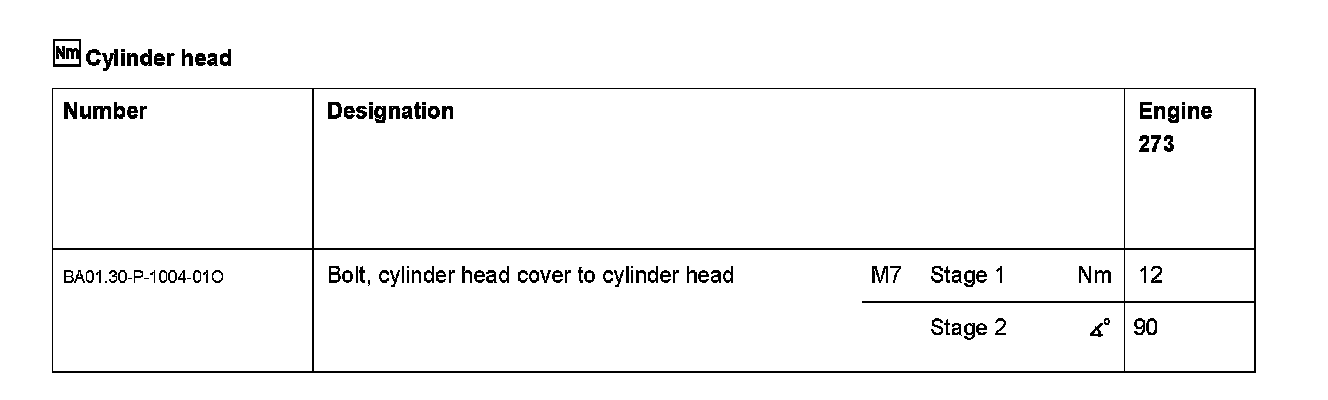

1 Tighten bolts (1 to 22) with Stage 1.
2 Tighten bolts (1 to 22) with Stage 2.

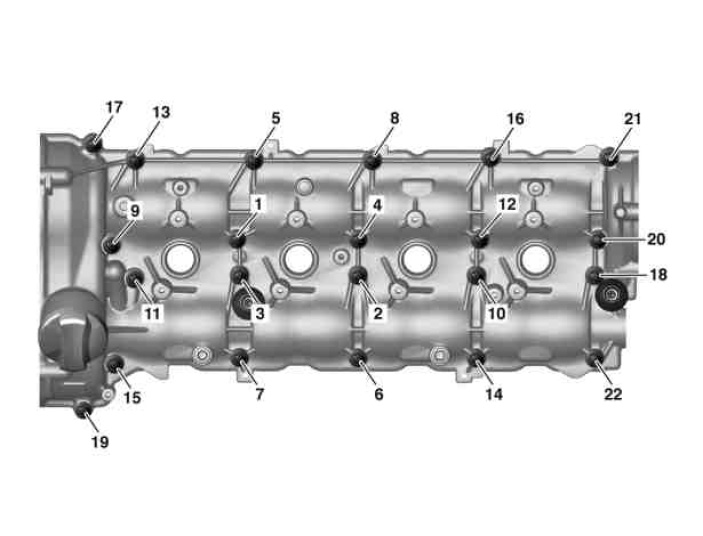

Left cylinder head cover

1 Tighten bolts (1 to 22) with Stage 1.
2 Tighten bolts (1 to 22) with Stage 2.
