Connecting Rod: Testing and Inspection

AR03.10-P-6111-01VA Check connecting rod bolts

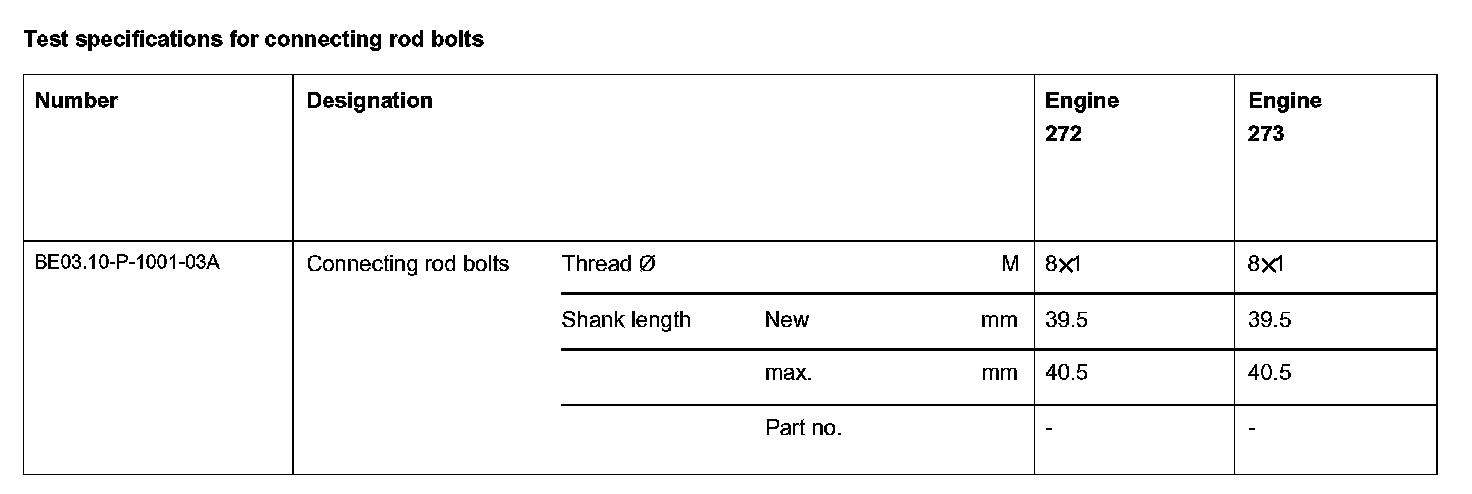

Test specifications for connecting rod bolts:

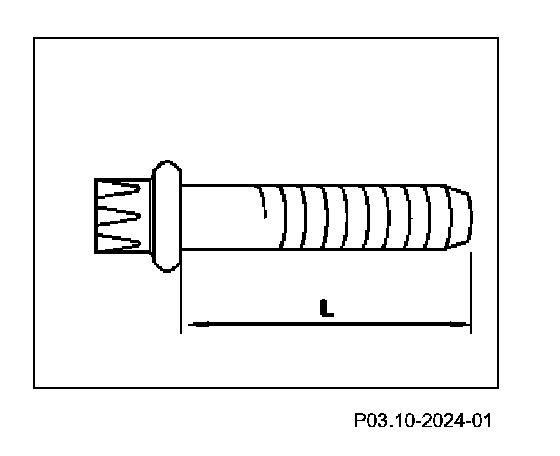

Connecting rod bolt shank length inspection:

1 Measure length (L).

If the length (L) exceeds maximum permissible size, the connecting rod bolts must be replaced!
