Home >> Mercedes Benz >> 2011 >> E 550 Coupe (207.372) V8-5.5L (273.966) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Camshaft, Lifters and Push Rods >> Camshaft >> Service and Repair >> Removal and Replacement >> AR05.20-P-7201CVA Remove/Install Camshafts

AR05.20-P-7201CVA Remove/Install Camshafts



AR05.20-P-7201CVA Remove/install camshafts
- On exhaust camshafts

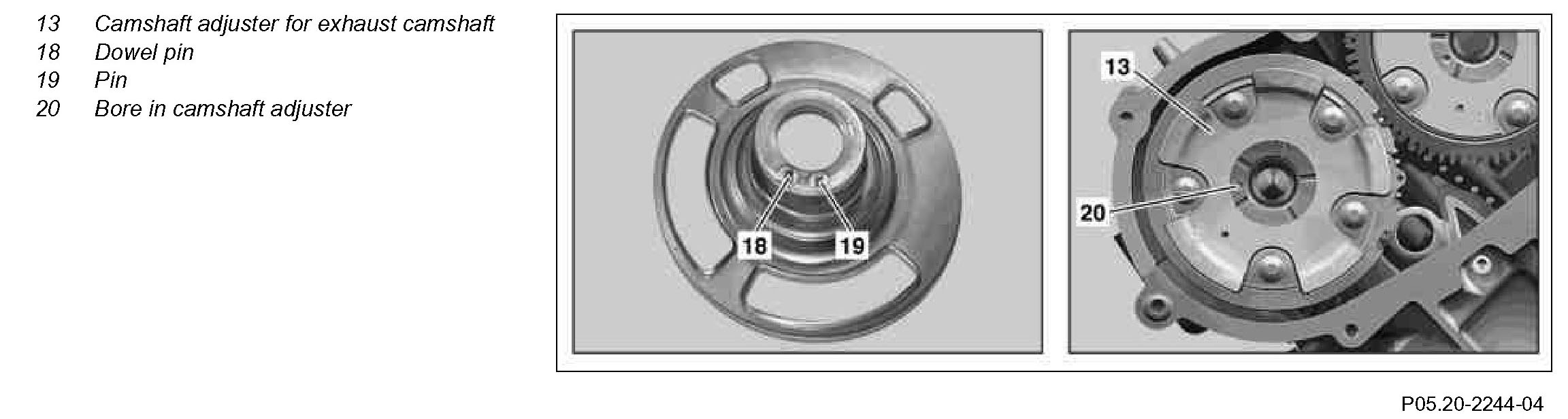

Component Identification:

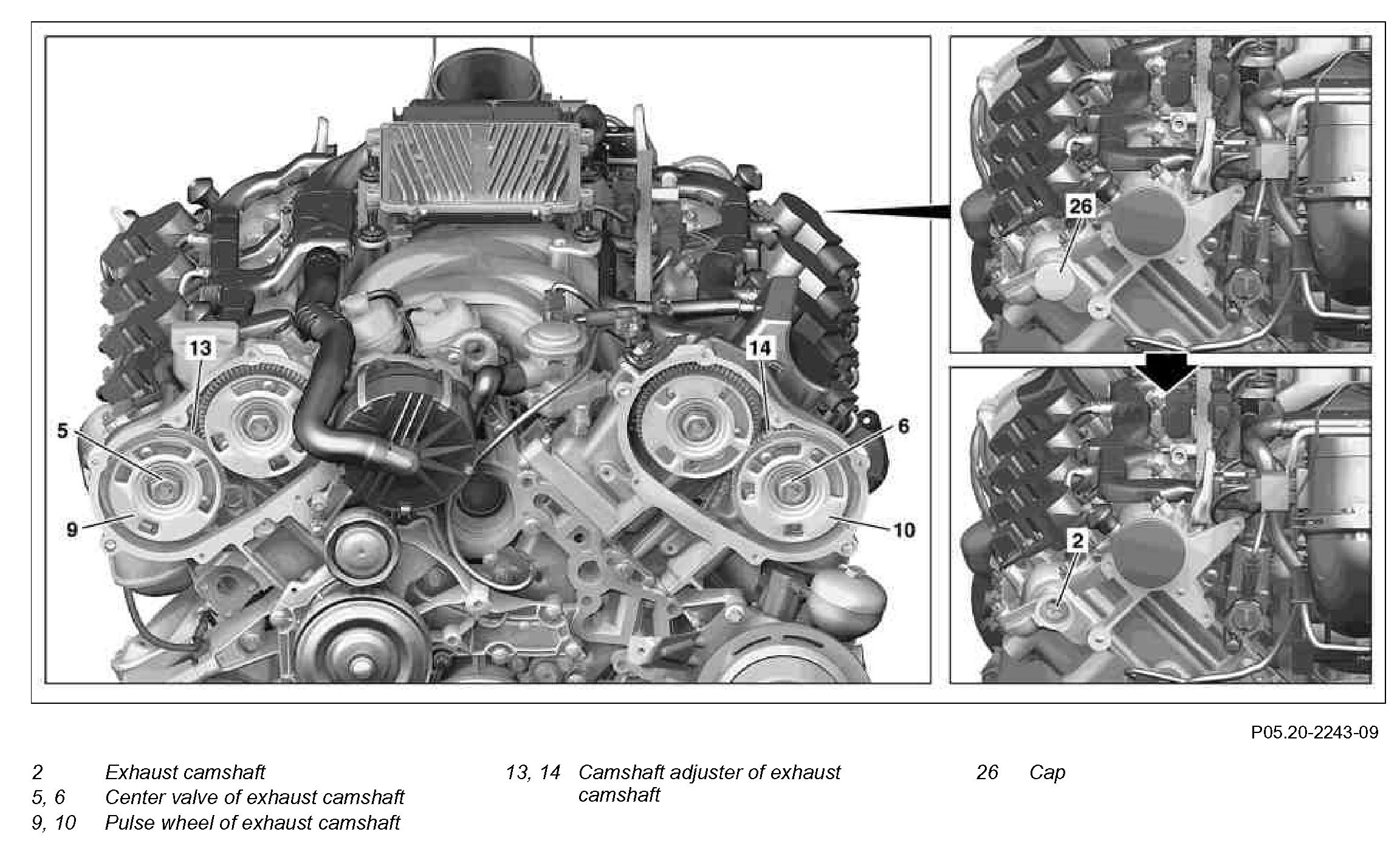

Component Identification:

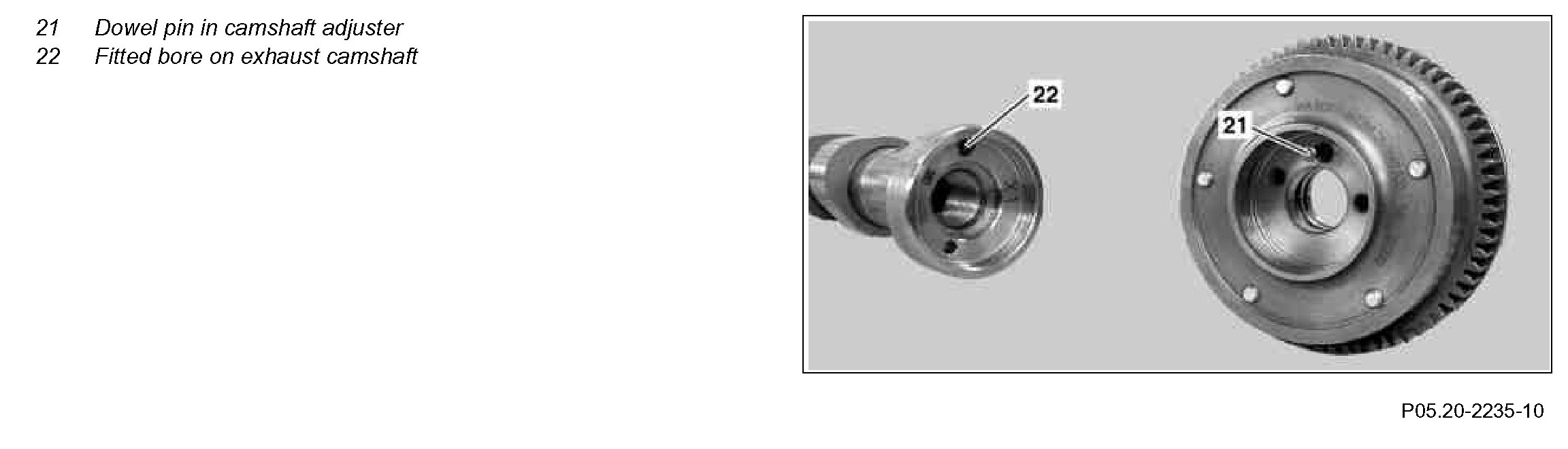

Component Identification:

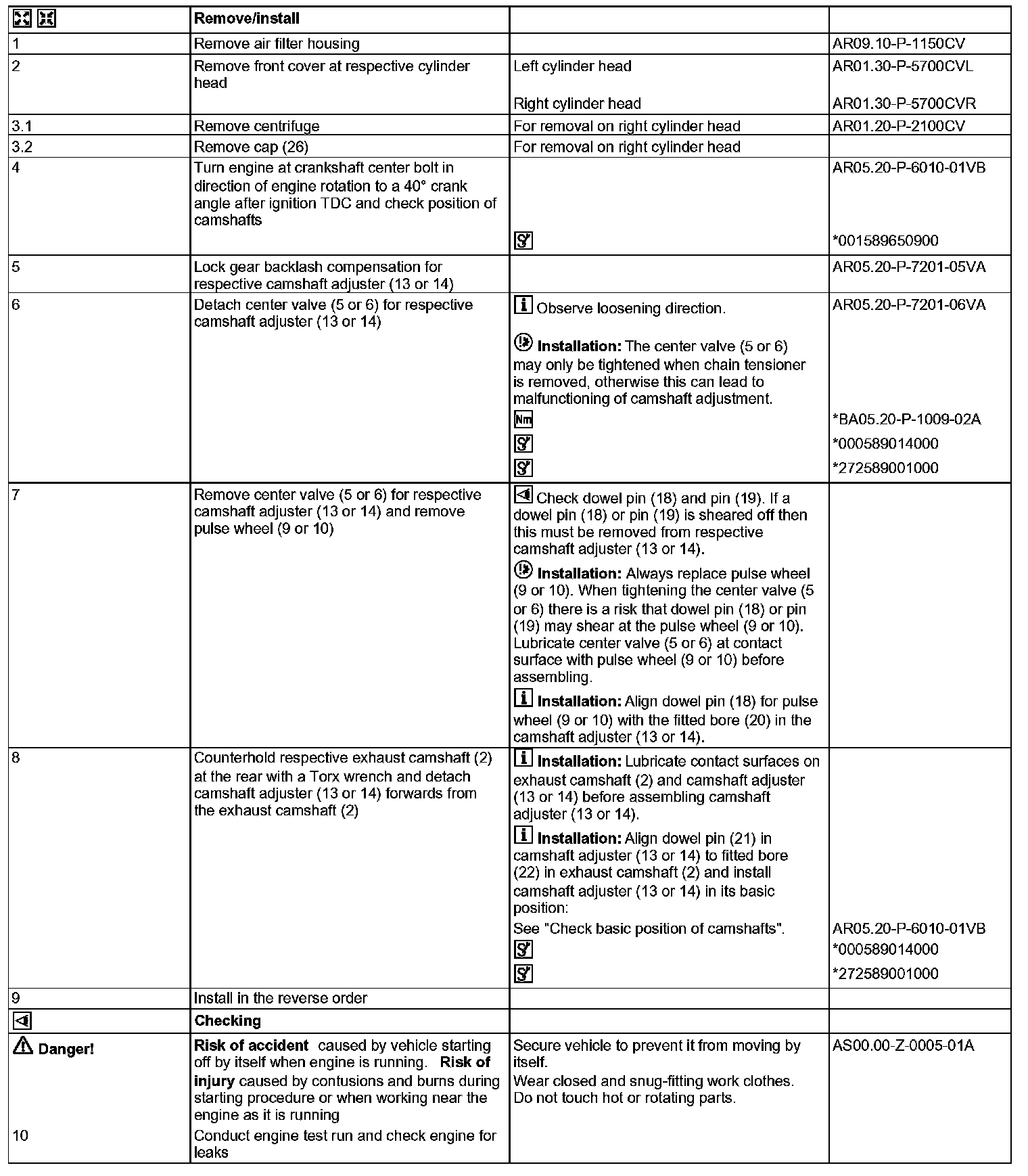

Steps 1-10:

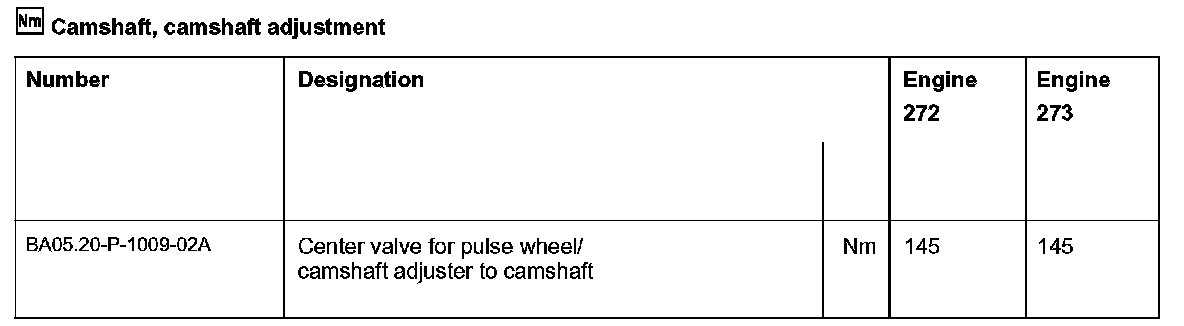

Camshaft, camshaft adjustment:

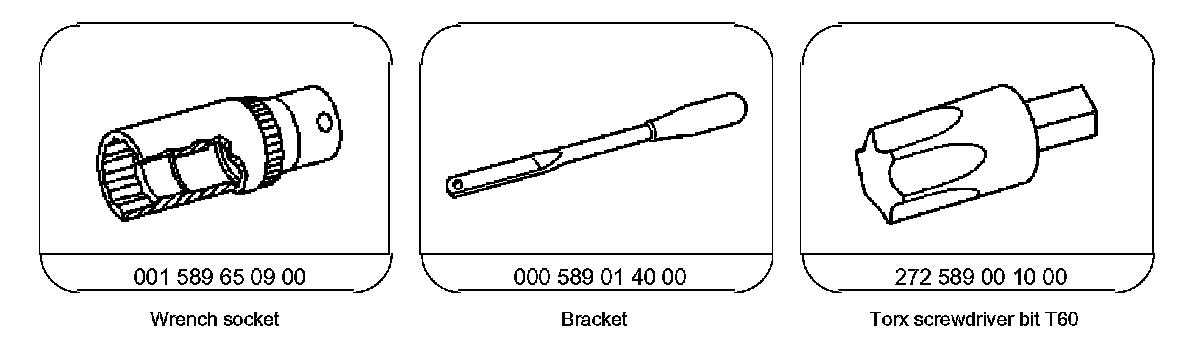

Special Tools:
