Thermostat: Testing and Inspection
AR20.10-P-2455CV Test coolant thermostat

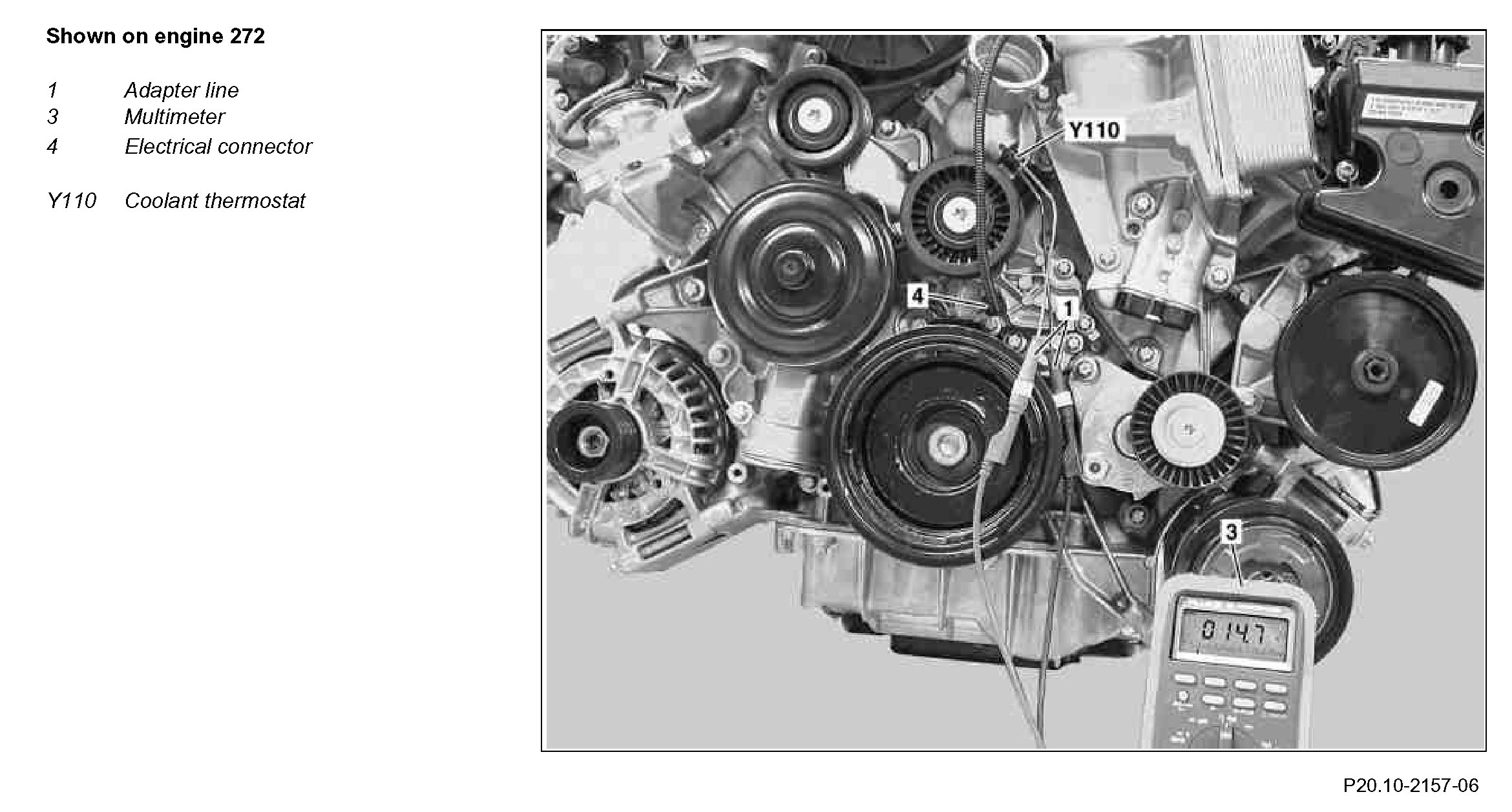

Component Identification:

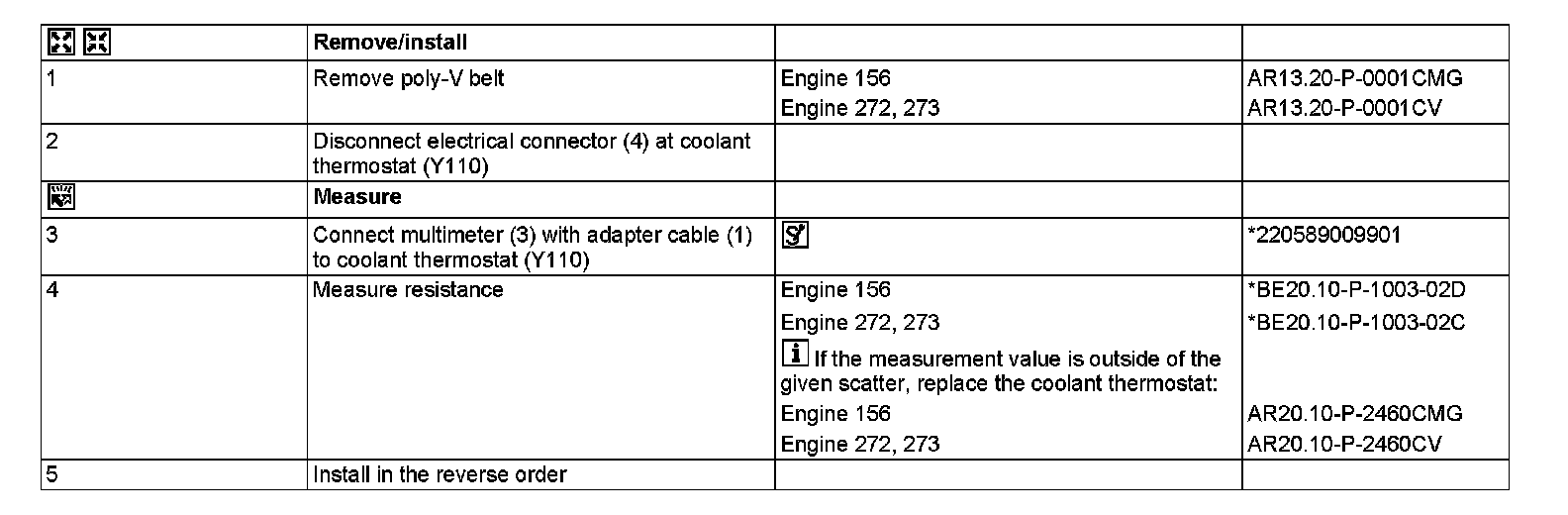

Steps 1-5:
Coolant thermostat:

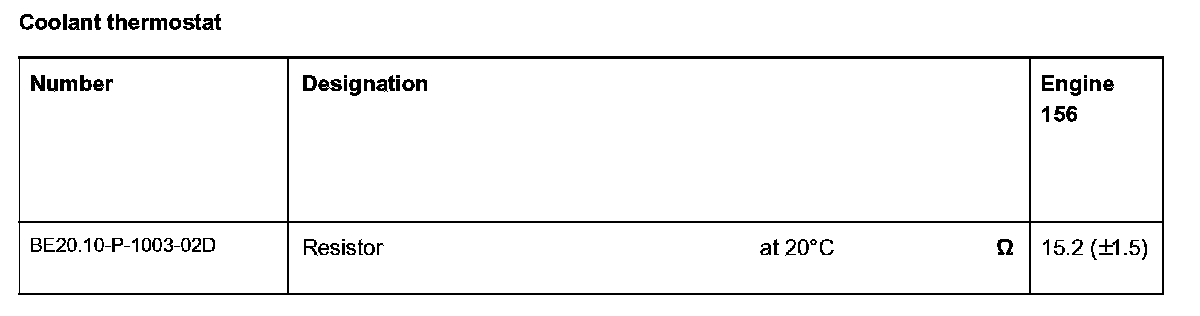

Check values for coolant thermostat:

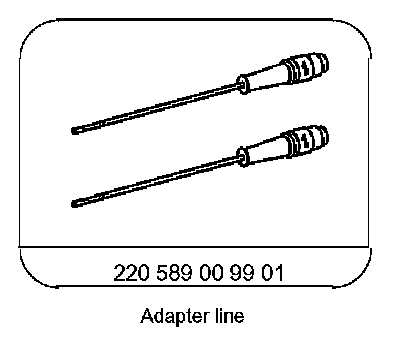

Special Tools:
