Underbody Cover: Service and Repair
AR61.30-P-1001EC Remove/install Underbody Paneling

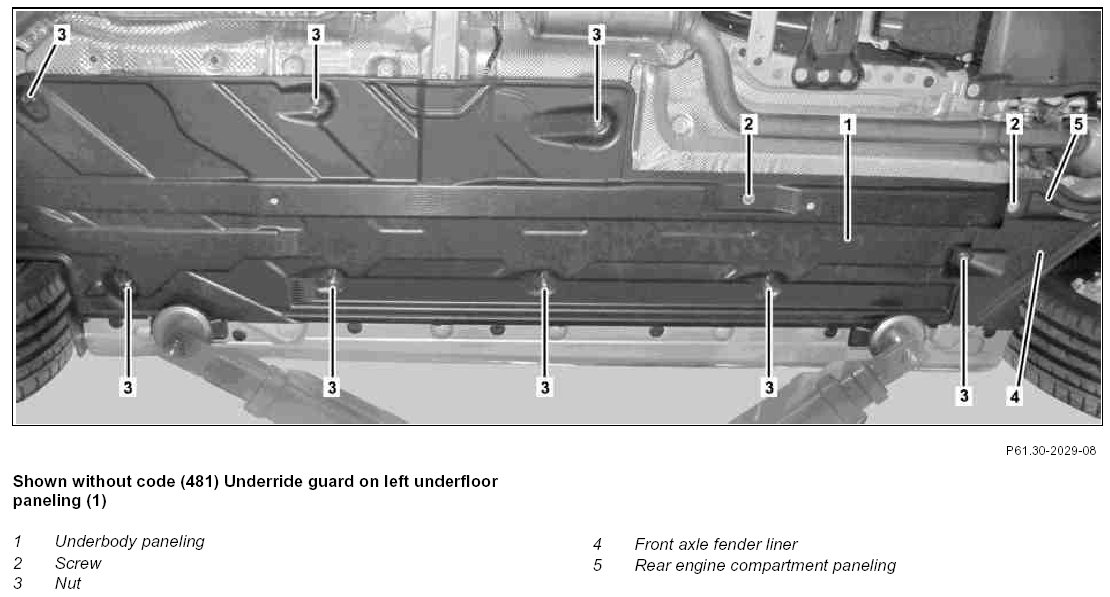

Component Identification:

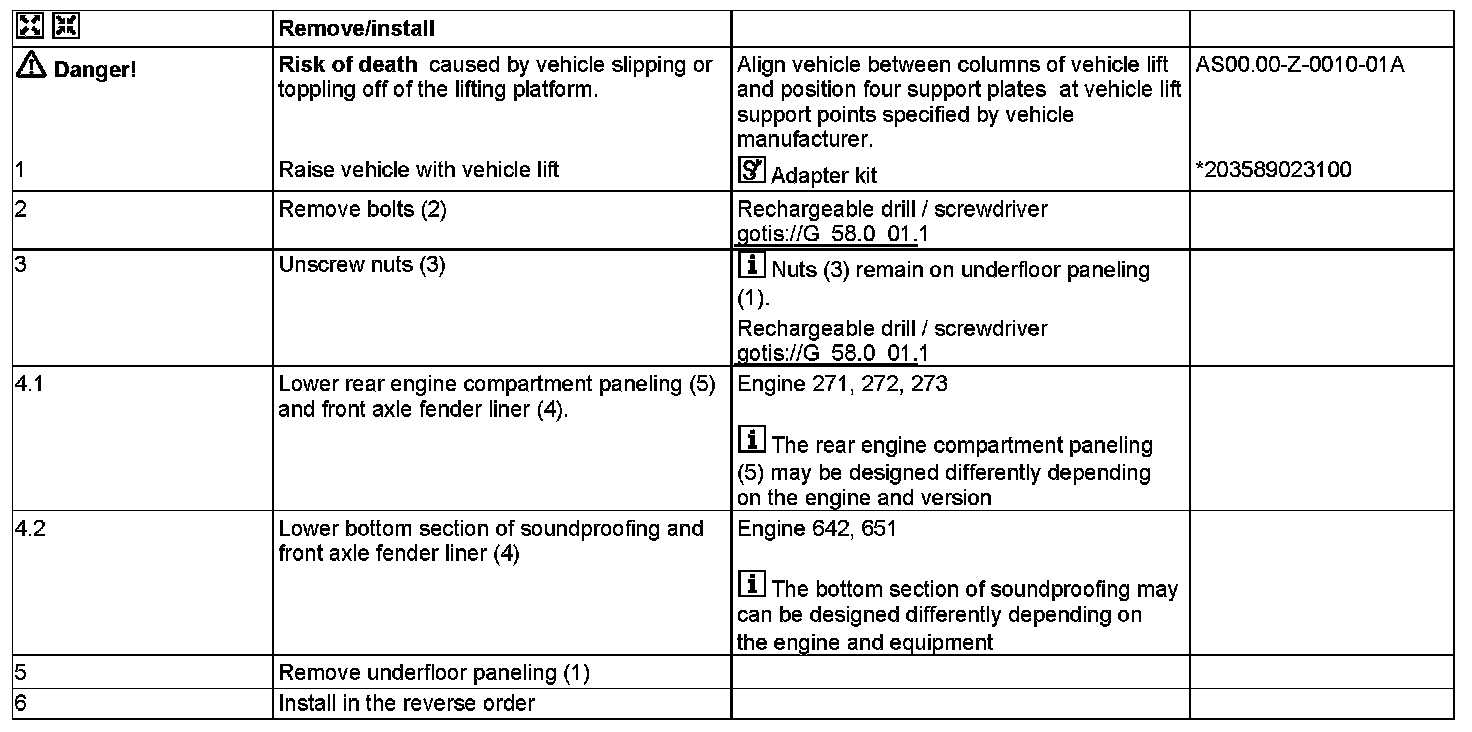

Steps 1 - 6:
Special Tools:
