AR40.20-P-0261CW Rear Axle Toe
AR40.20-P-0261CW Rear Axle Toe
AR40.20-P-0261CW Rear Axle Toe
Toe

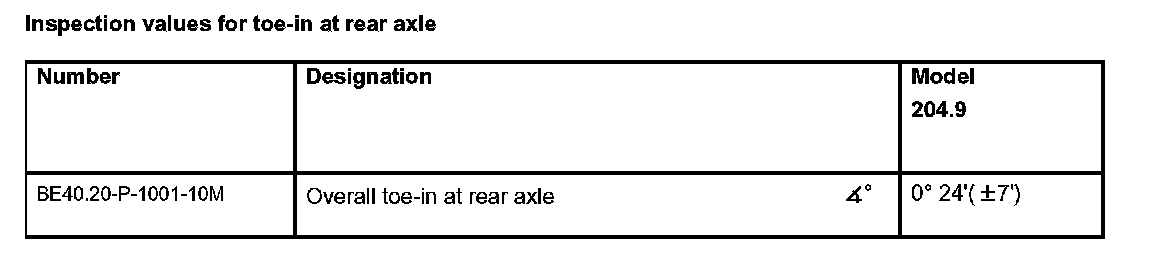

Inspection values for toe-in at rear axle:

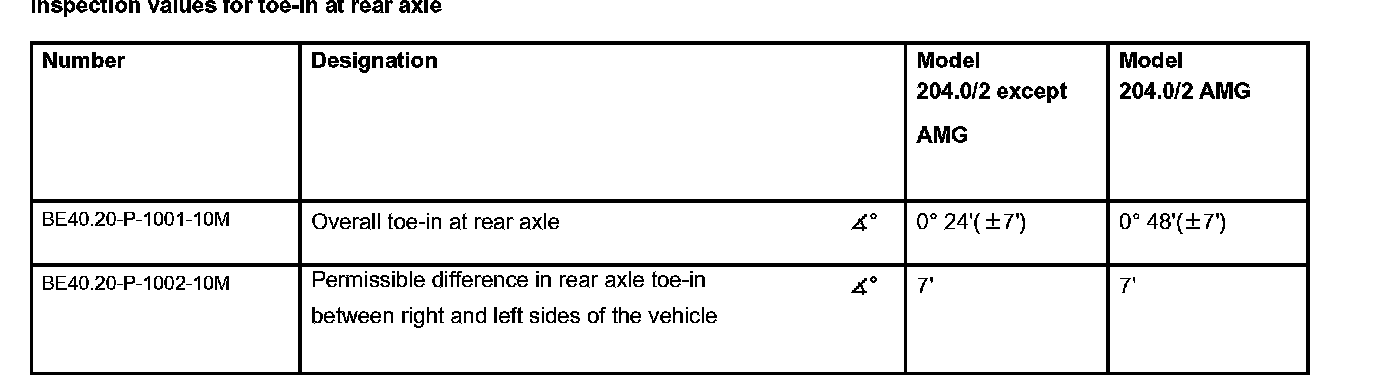

Inspection values for toe-in at rear axle:

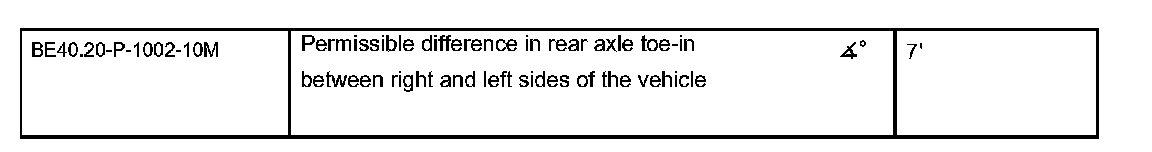

Inspection values for toe-in at rear axle:
