PE82.85-P-2101EAC Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram

PE82.85-P-2101EAC Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram

MODEL 207
- up to 06/30/11
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version

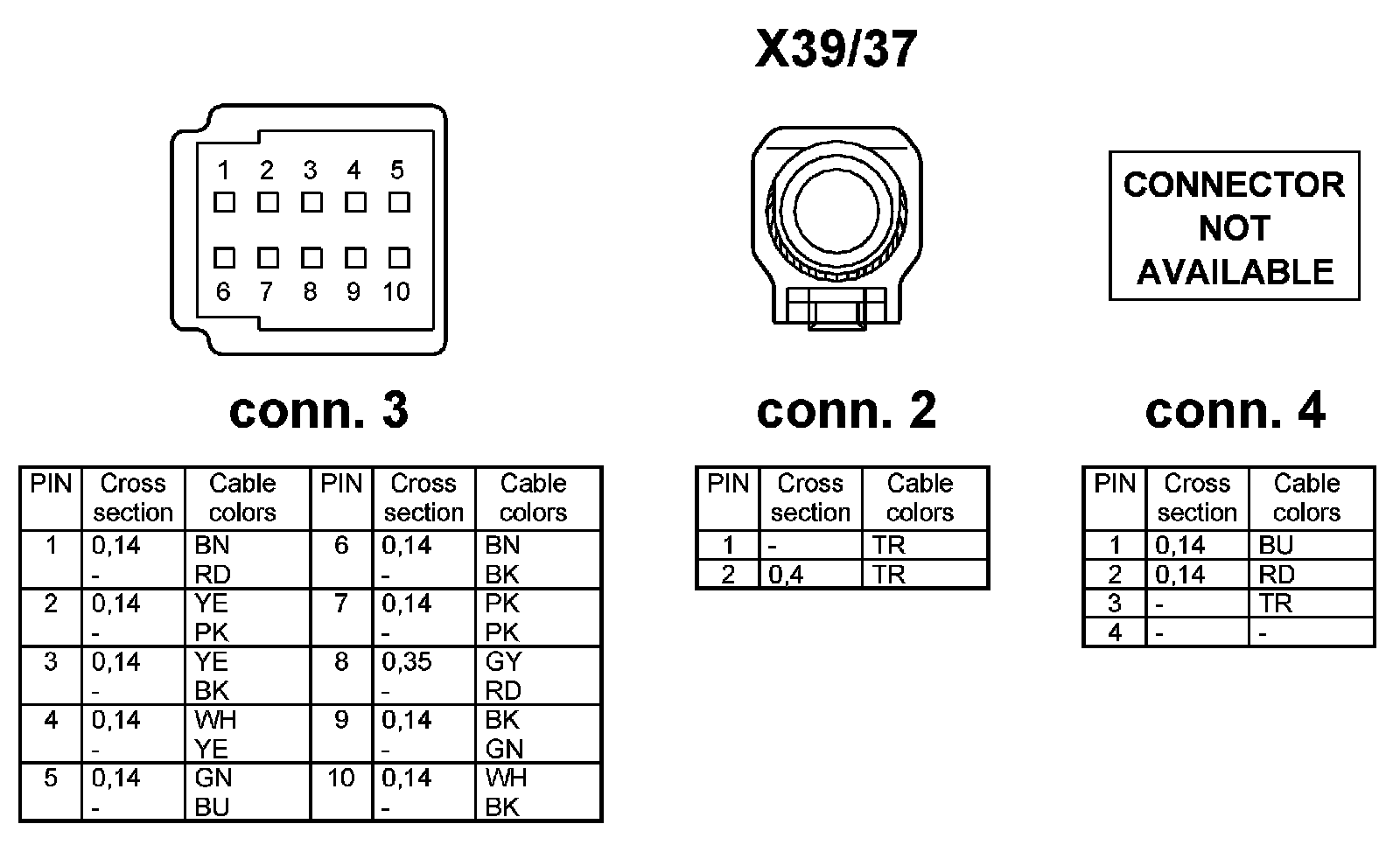

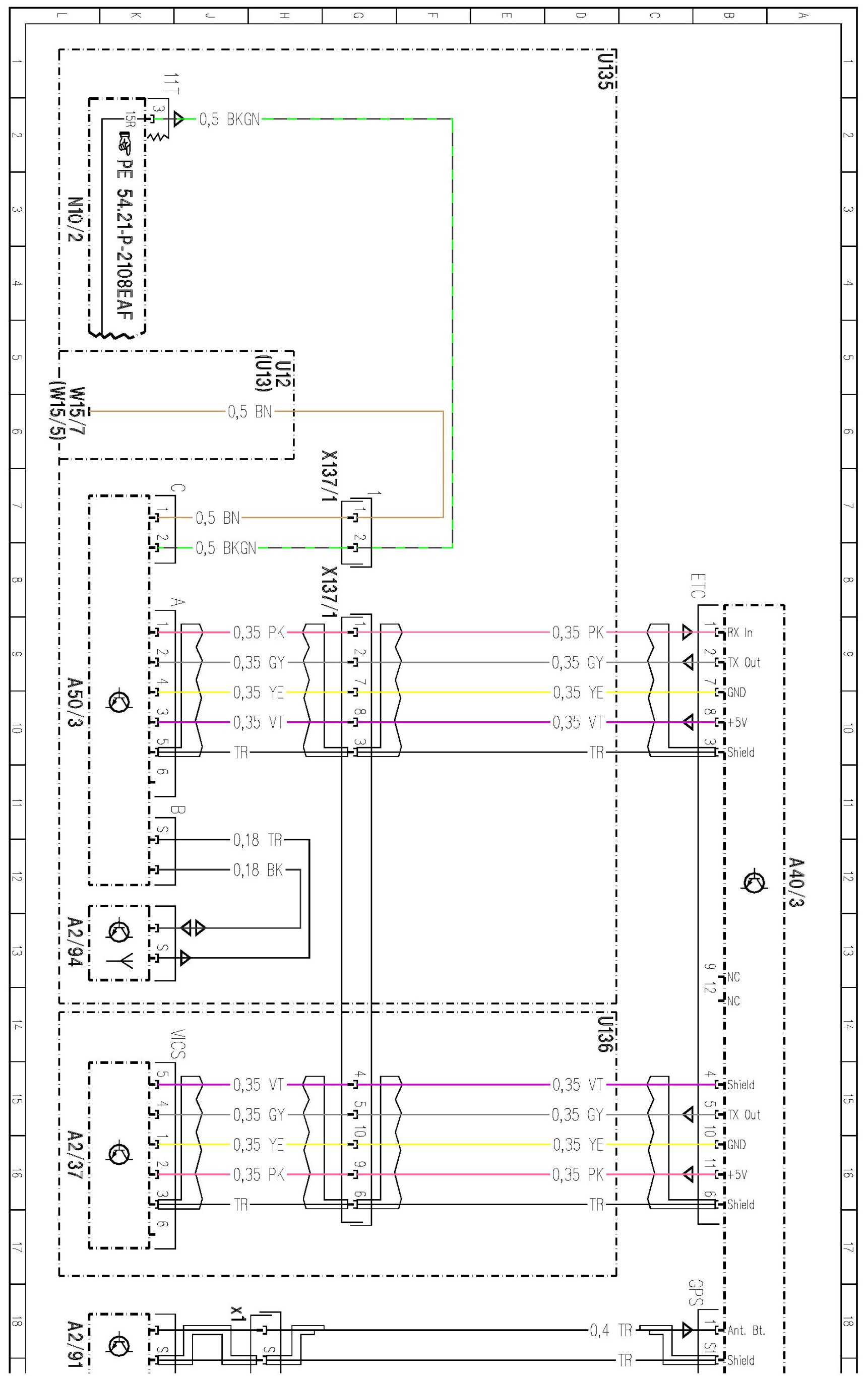

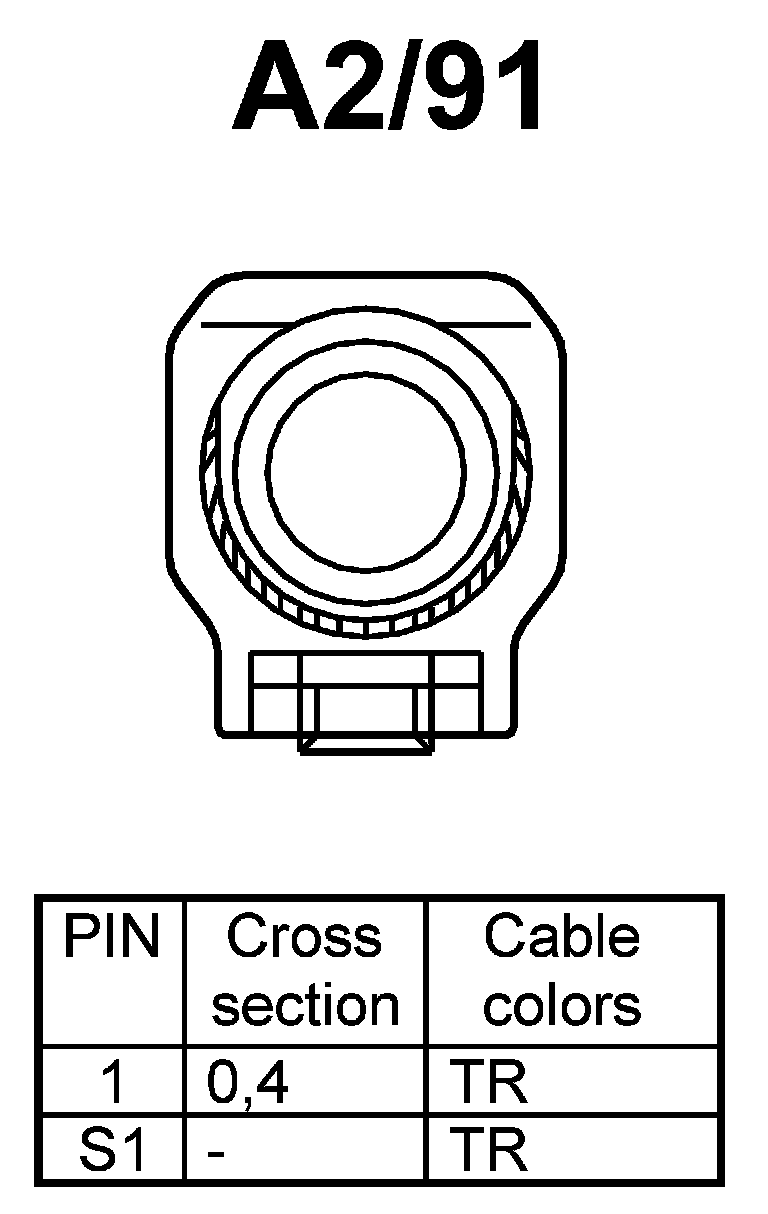

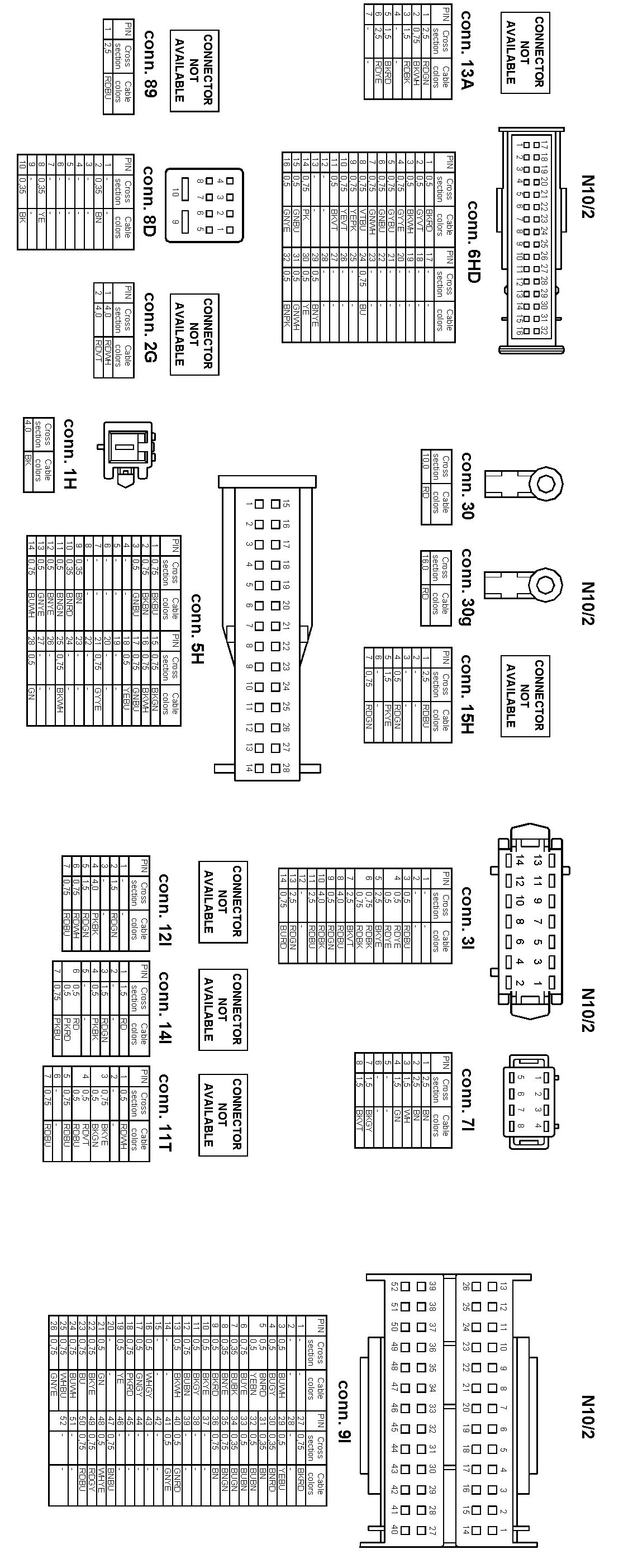

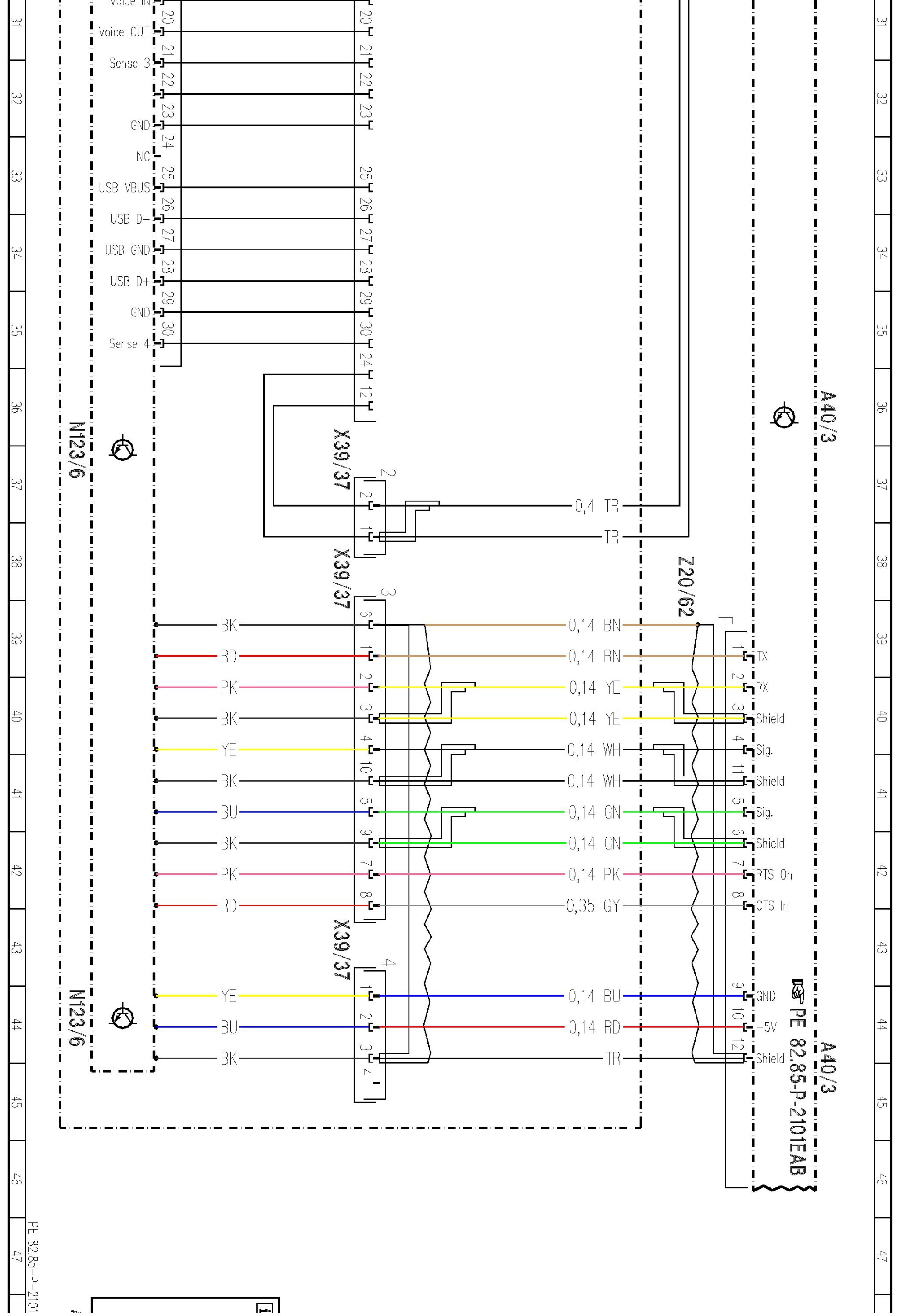

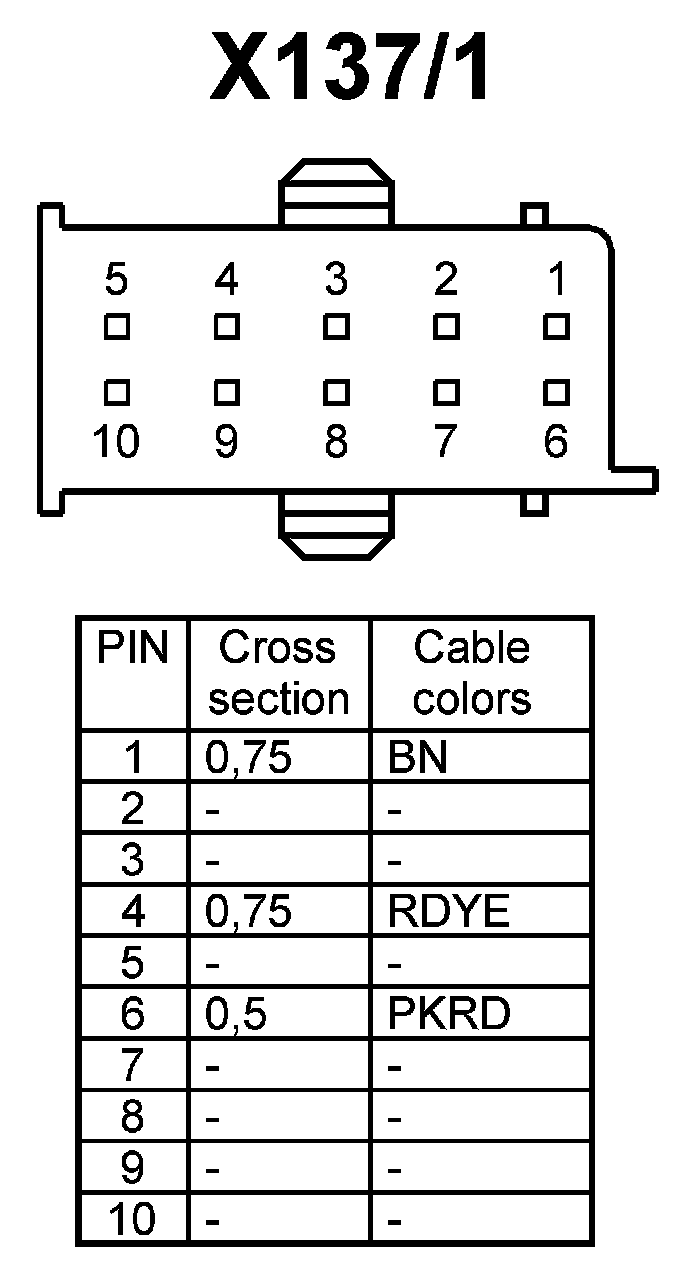

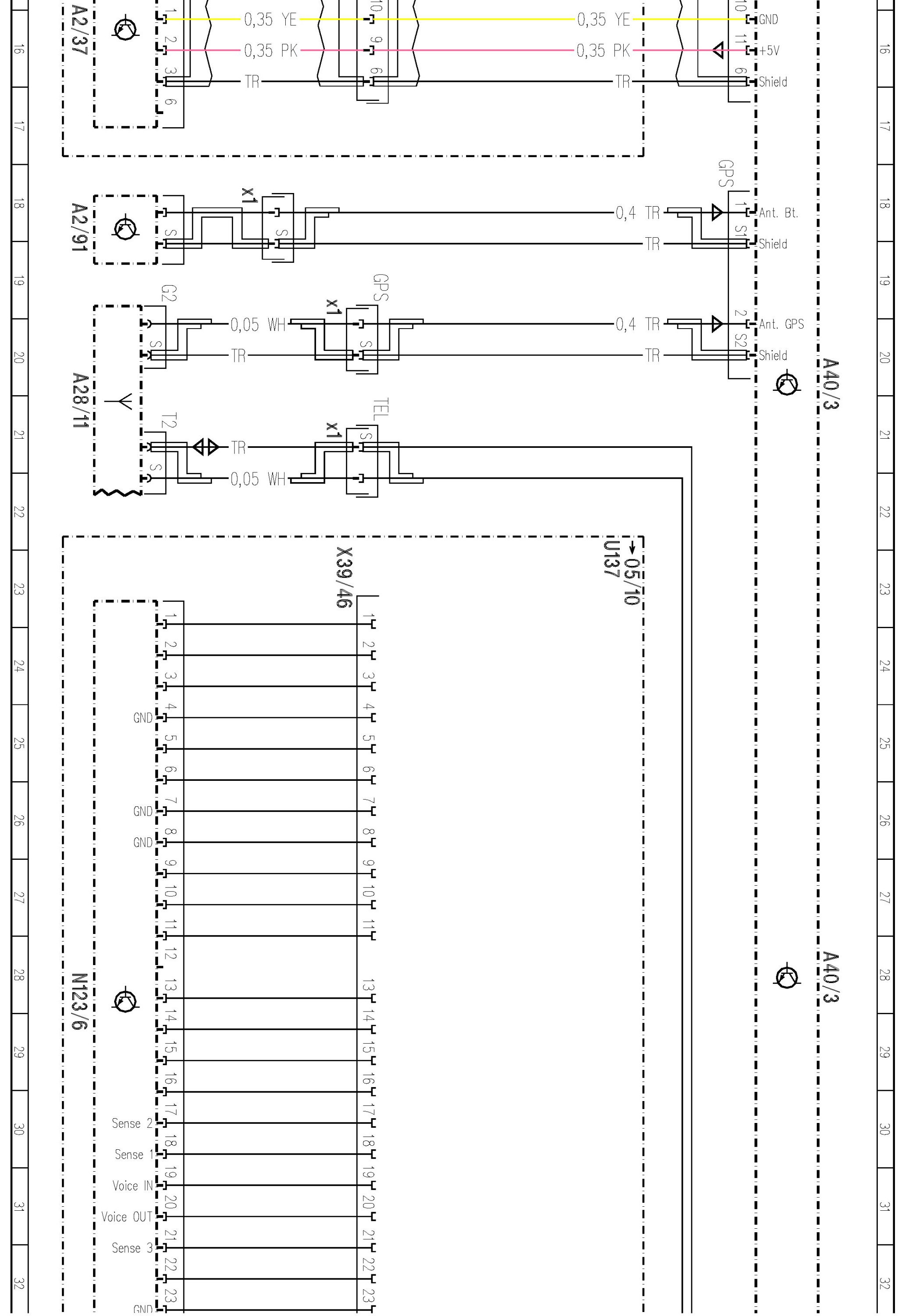

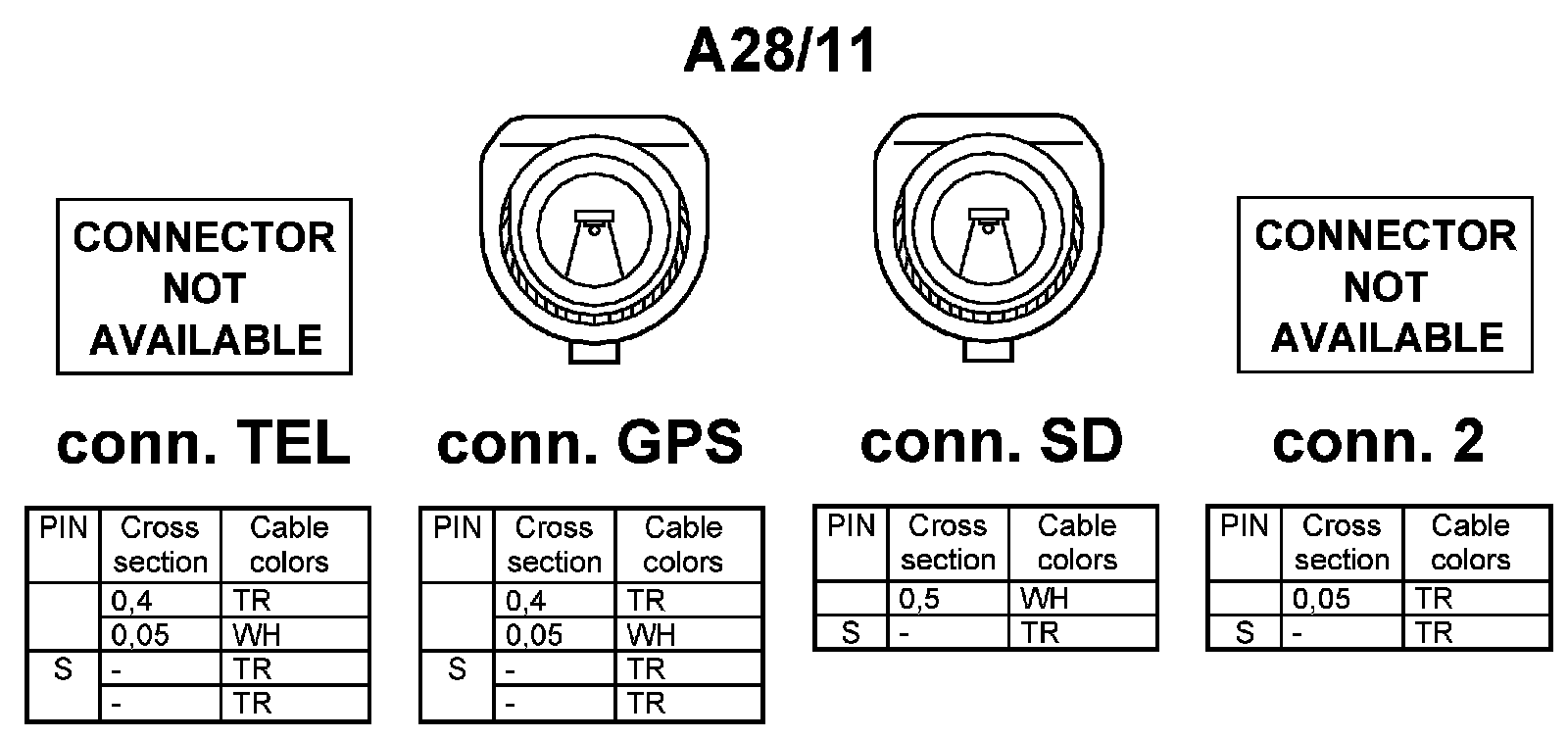

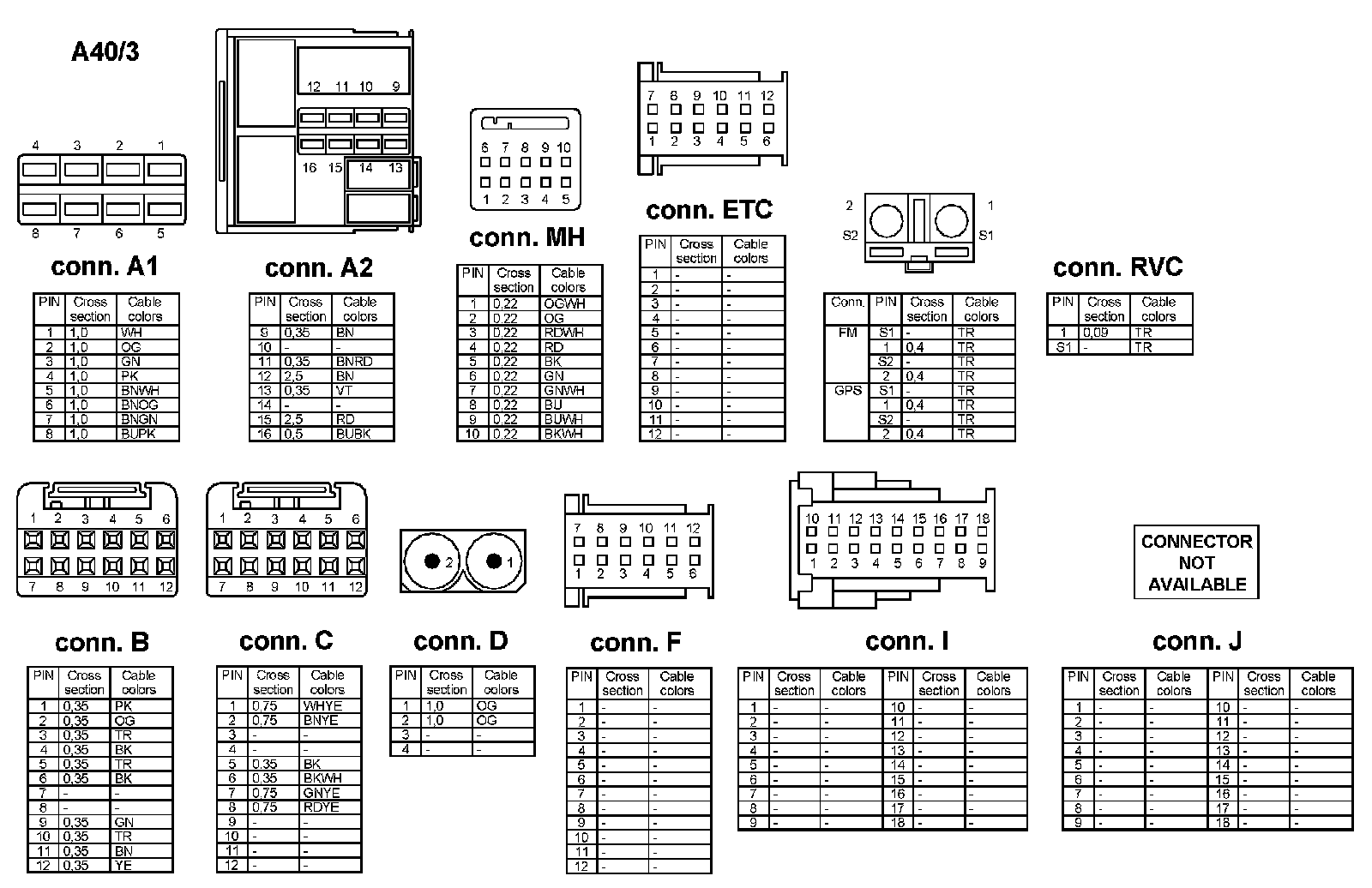

- Control unit A40/3, sheet 2














































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
