Fuel Tank Pressure Sensor: Service and Repair
AR47.50-P-0050CW Remove/Install
Fuel Tank Pressure Sensor

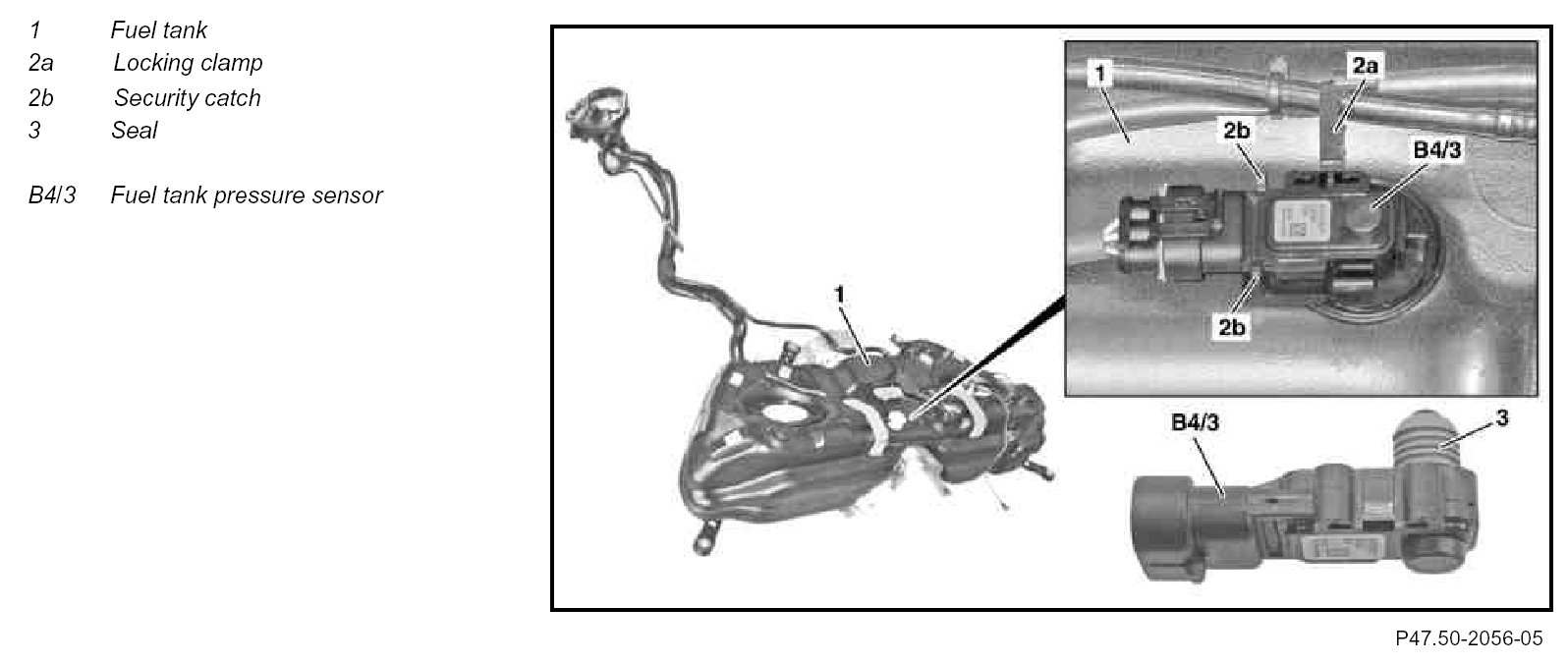

Component Identification:

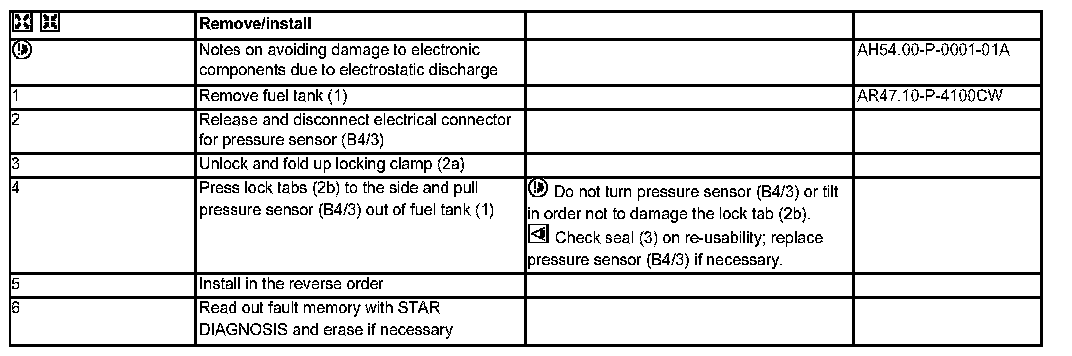

Steps 1 - 6:
