Home >> Mercedes Benz >> 2011 >> E 350 Coupe (207.356) V6-3.5L (272.961) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Service and Repair >> Procedures

Procedures



AR20.00-P-1142CW Drain/fill in coolant

Component Identification:

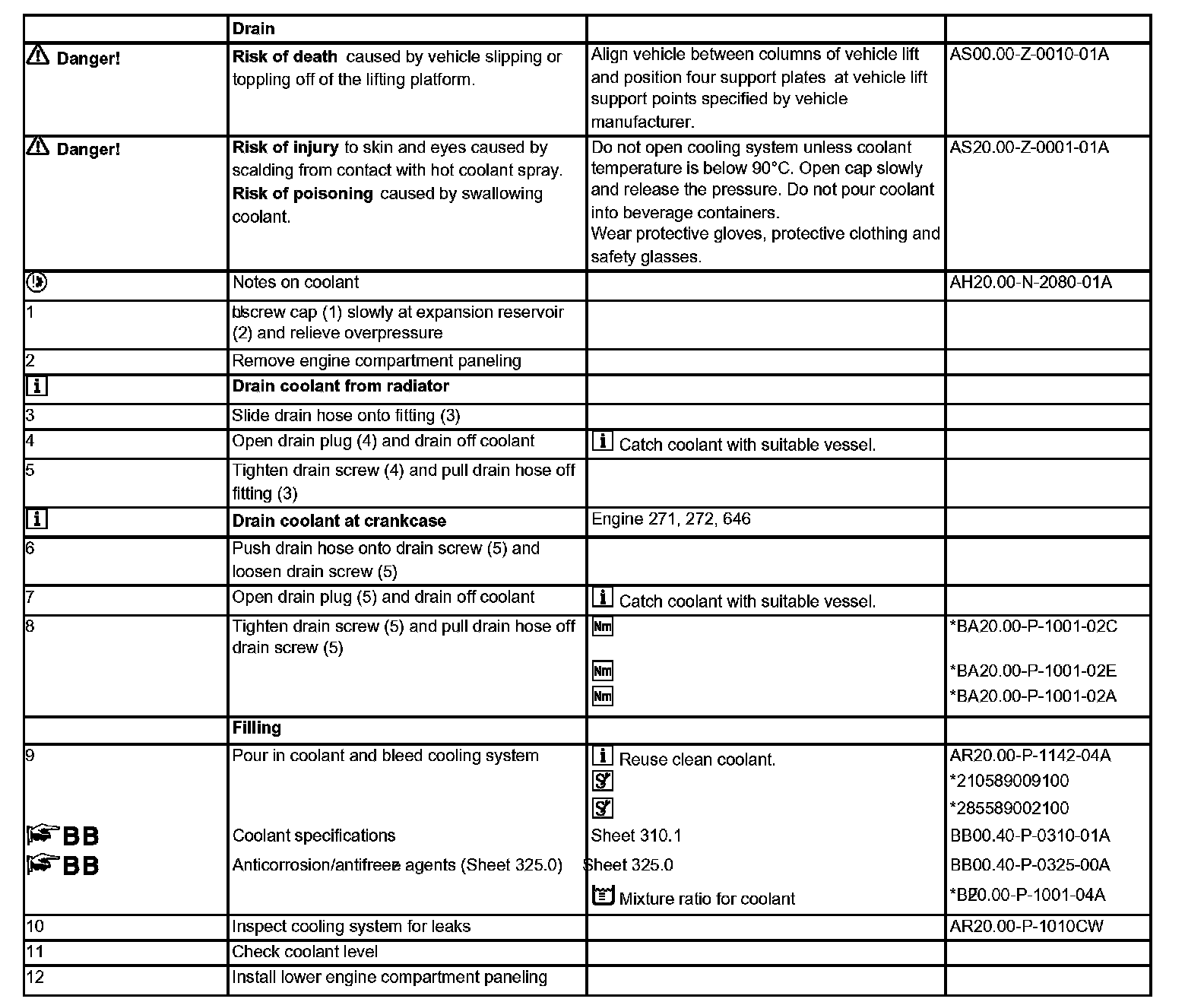

Steps 1-12:

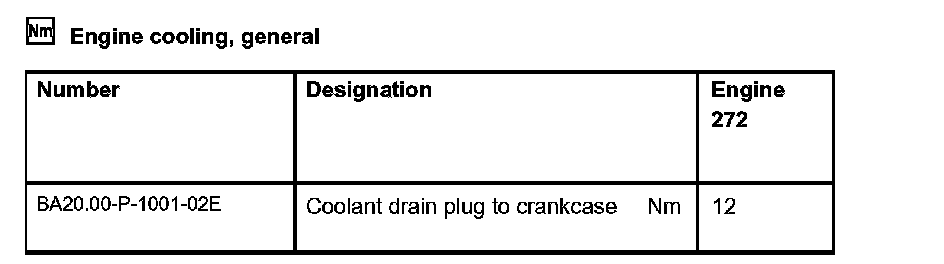

Engine cooling, general:

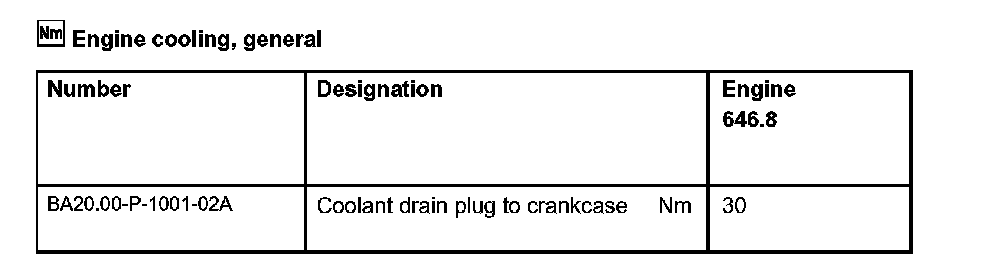

Engine cooling, general:




Engine cooling, general:

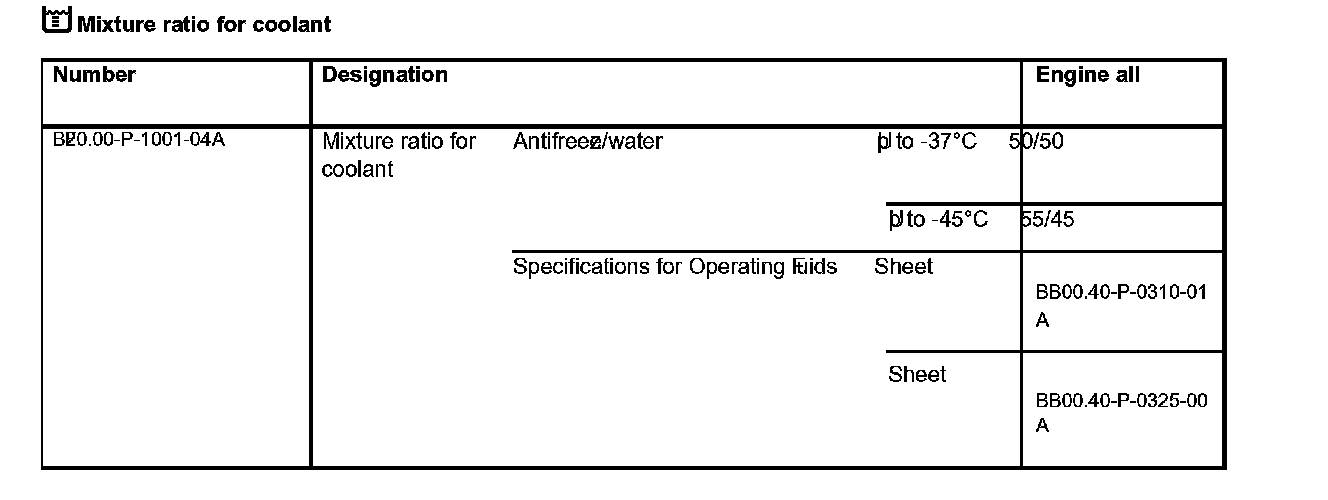

Mixture ratio for coolant:




Special Tools:
