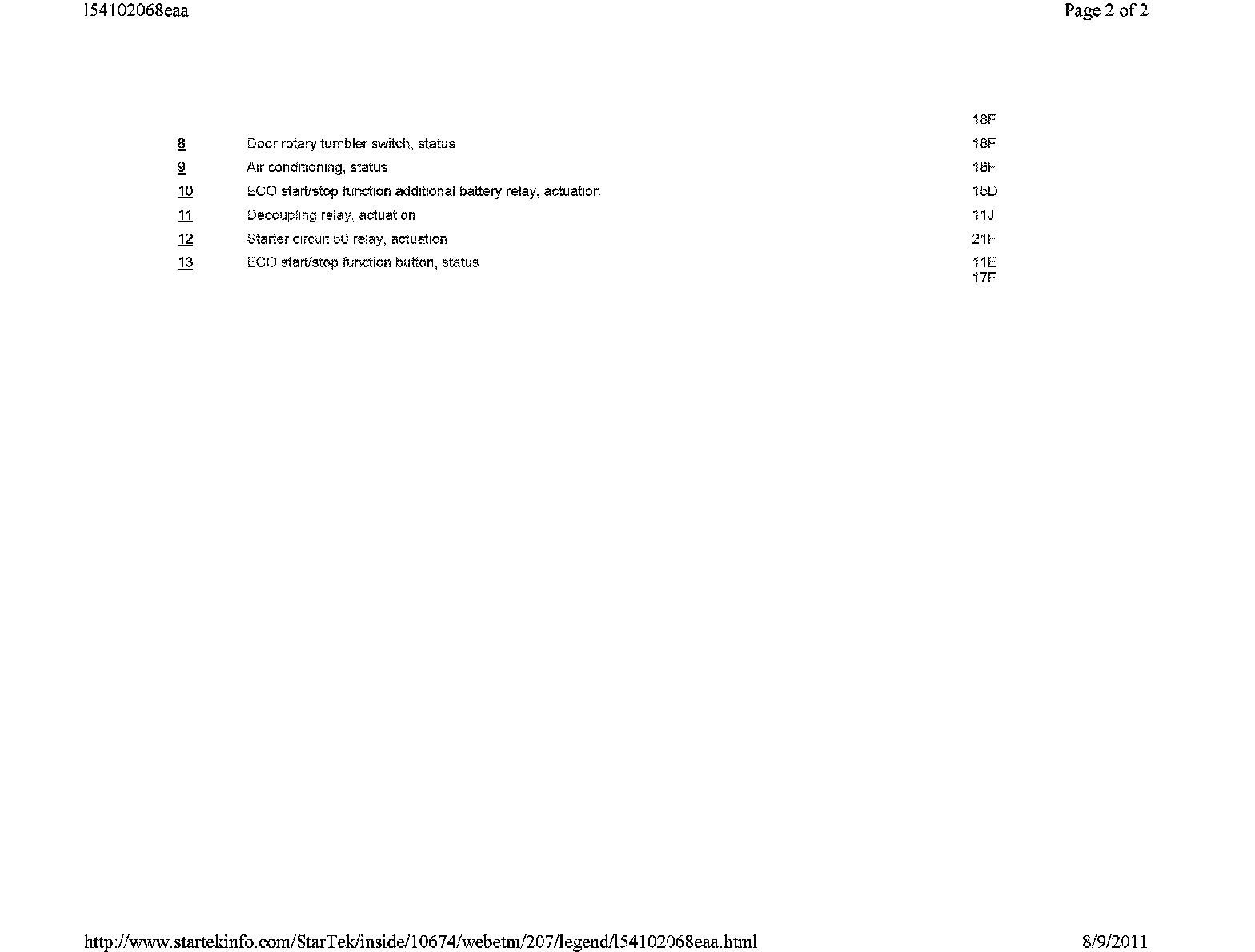

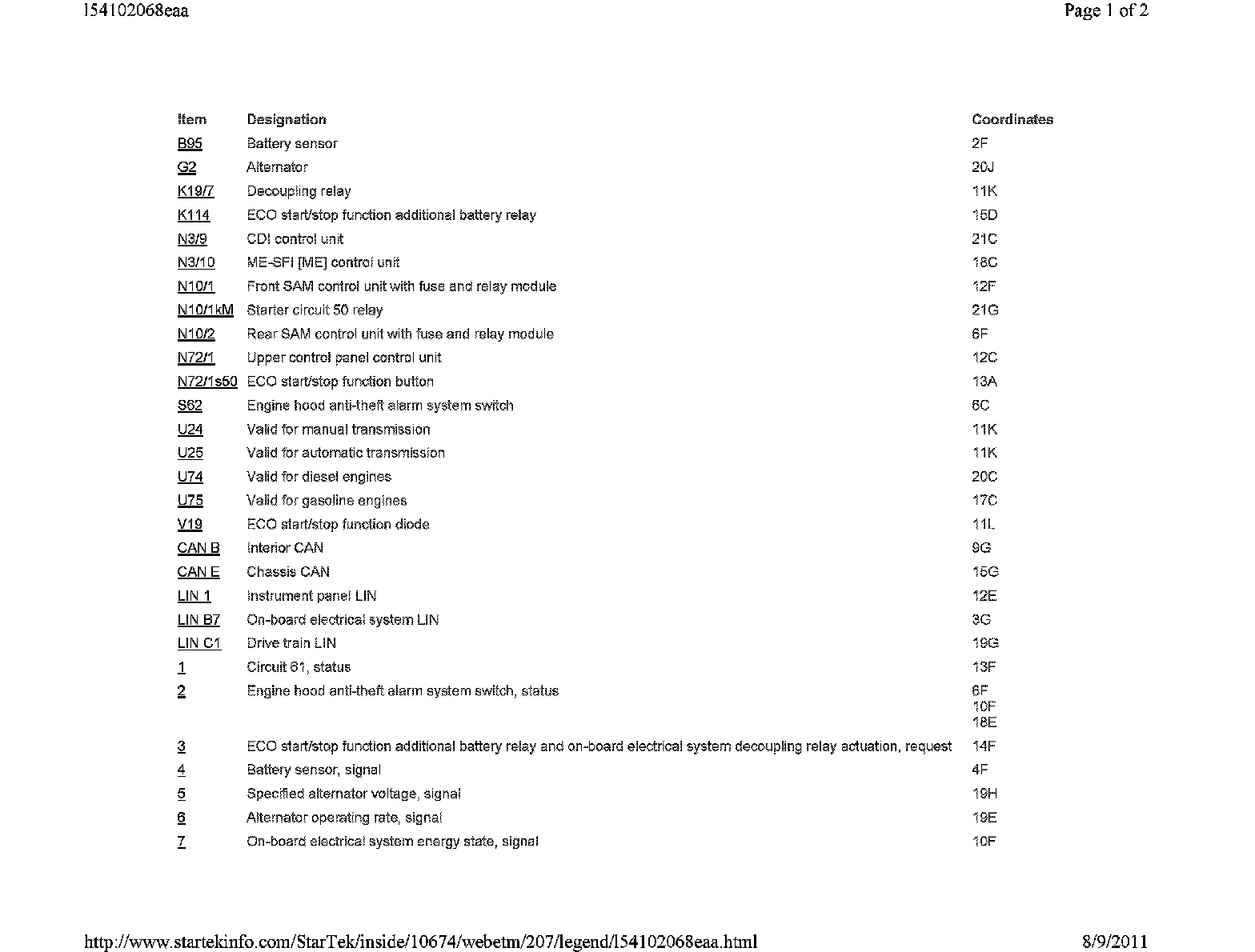

PE54.10-P-2068EAA Electrical Function Schematic For Automatic Engine Start/Stop



PE54.10-P-2068EAA Electrical Function Schematic For Automatic Engine Start/Stop
- with CODE (B03) ECO start/stop function
