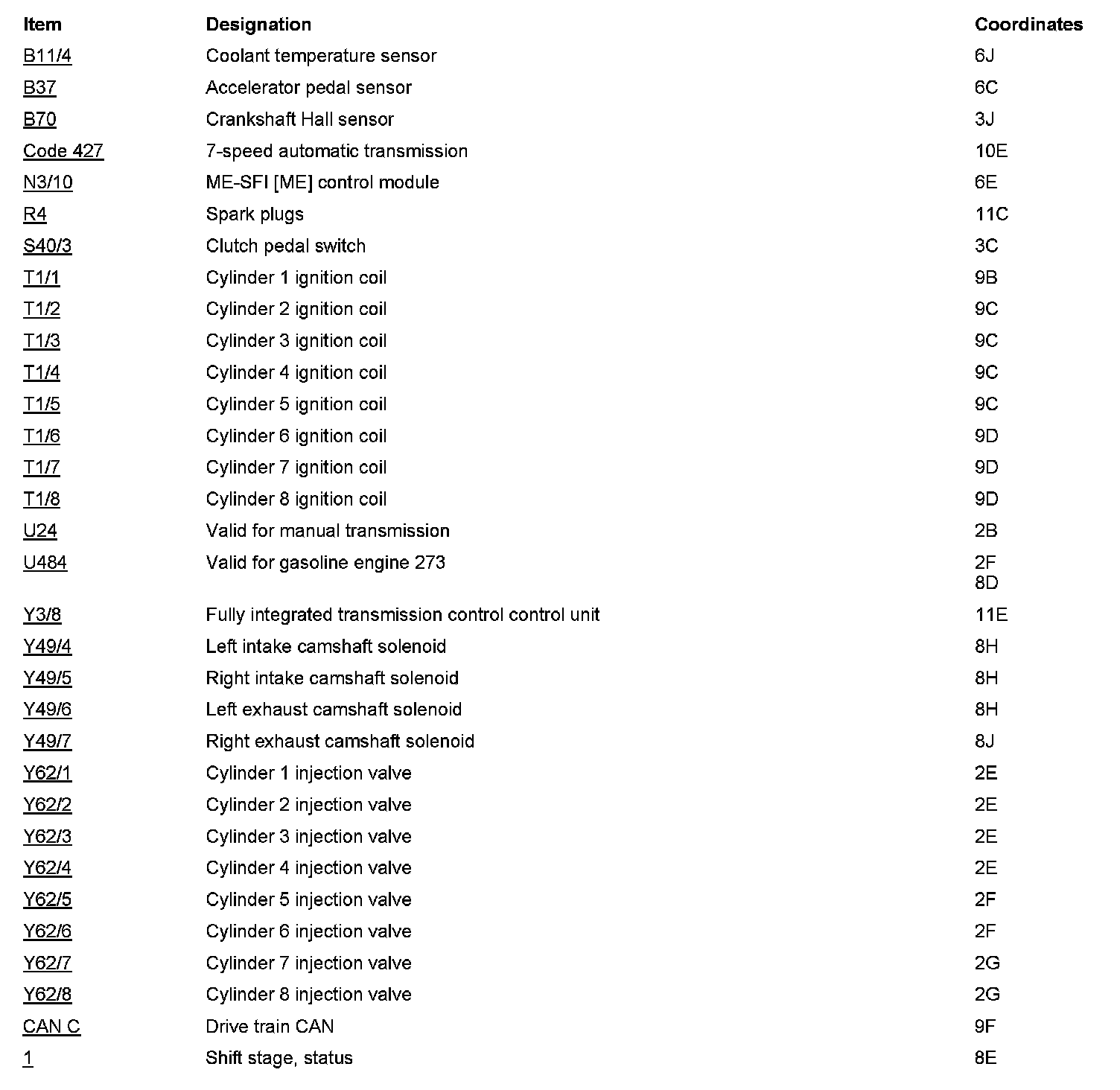

PE07.10-P-2714EAB Electrical Function Schematic For Deceleration Fuel Shutoff

PE07.10-P-2714EAB Electrical Function Schematic For Deceleration Fuel Shutoff

ENGINE 272, 273 (except 272.98) in MODEL 207






























































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
