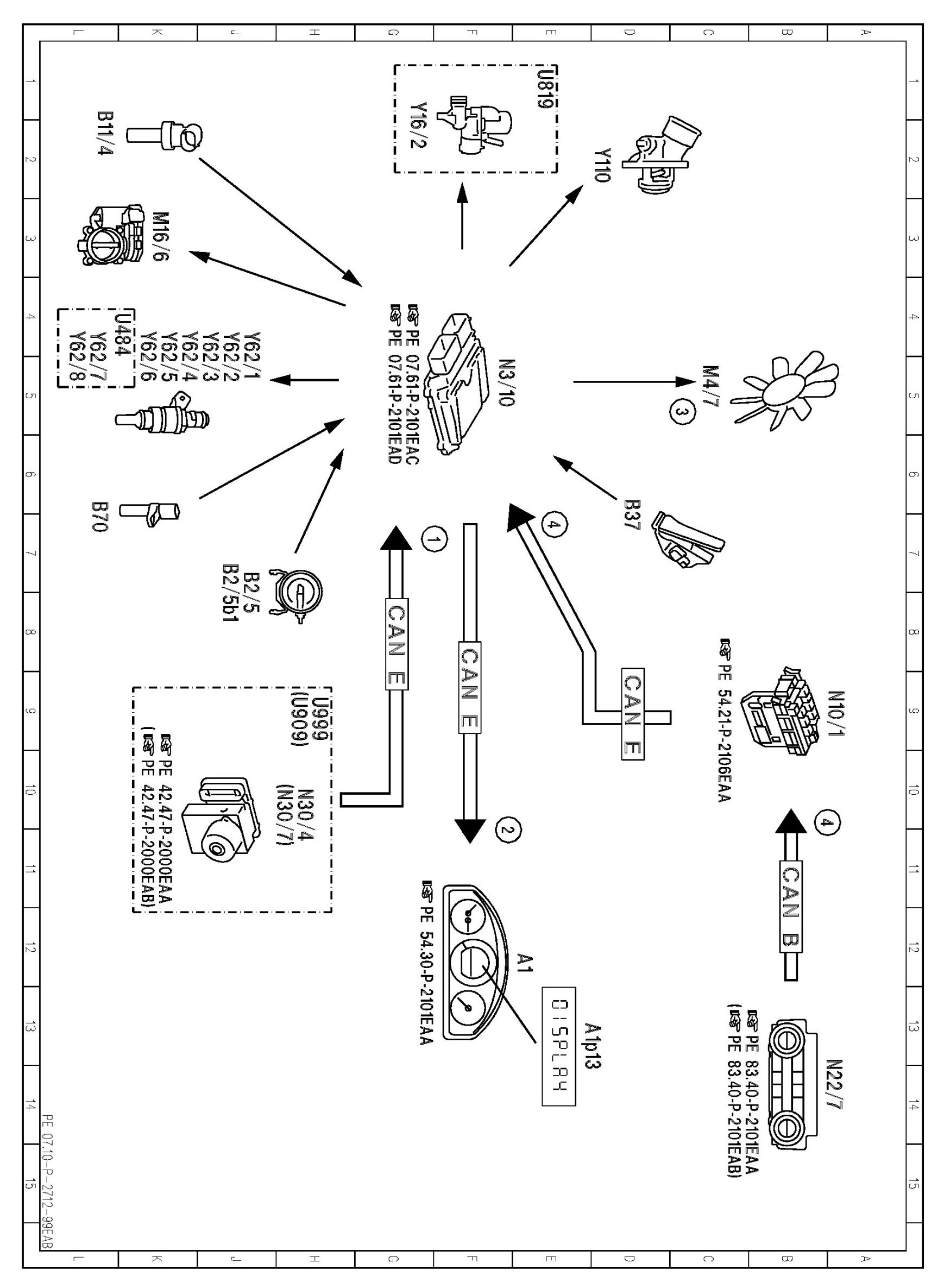

PE07.10-P-2712EAB Electrical Function Schematic For Thermal Management

PE07.10-P-2712EAB Electrical Function Schematic For Thermal Management

ENGINE 272, 273 (except 272.98) in MODEL 207










































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
