PE07.10-P-2709EAB Electrical Function Schematic, Alternator Interface

PE07.10-P-2709EAB Electrical Function Schematic, Alternator Interface

ENGINE 272, 273 (except 272.98) in MODEL 207

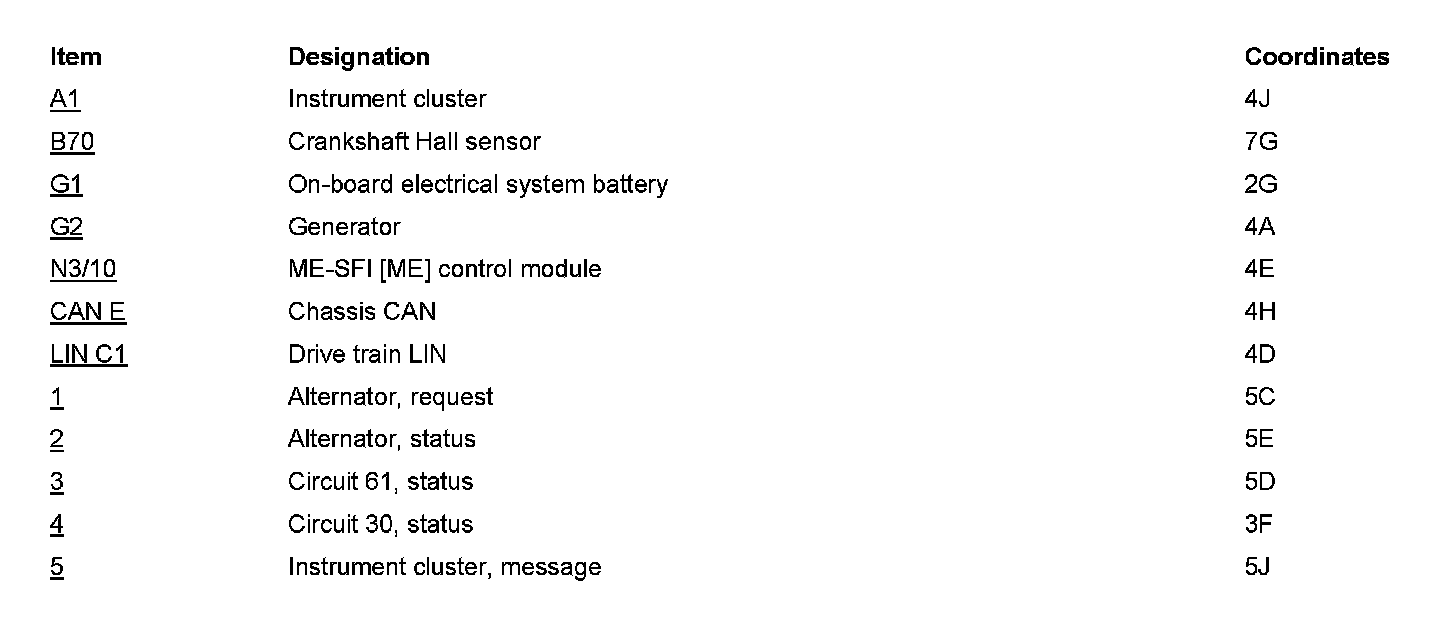

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
