PE07.10-P-2708EAB Electrical Function Schematic For RPM Control

PE07.10-P-2708EAB Electrical Function Schematic For RPM Control

ENGINE 272, 273 (except 272.98) in MODEL 207

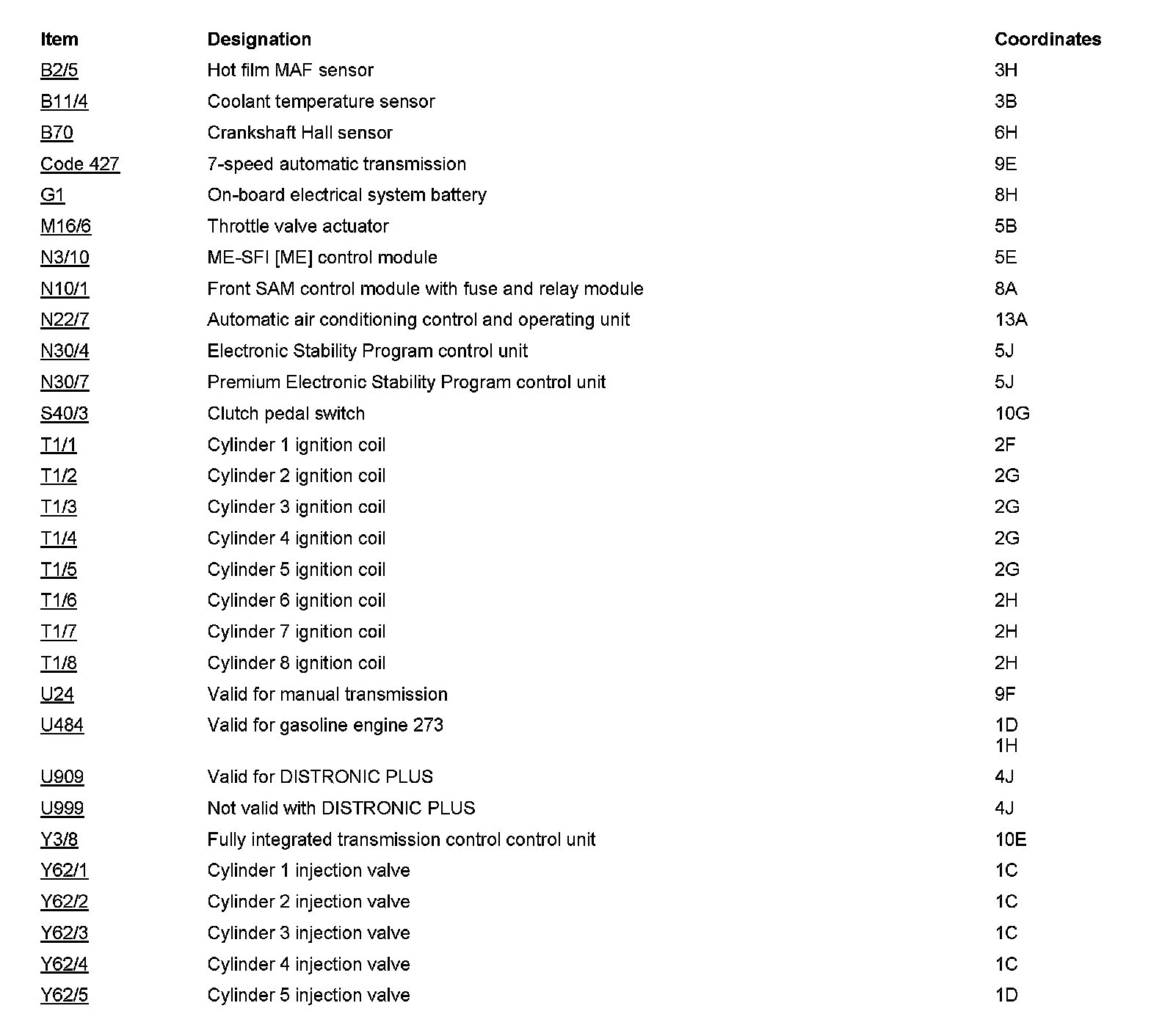

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
