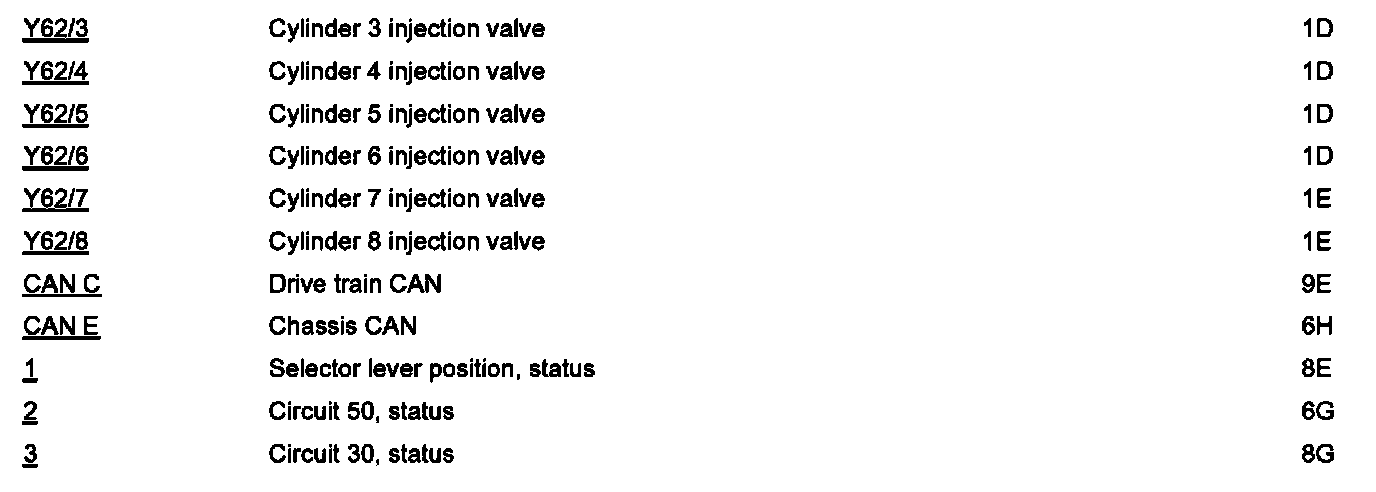

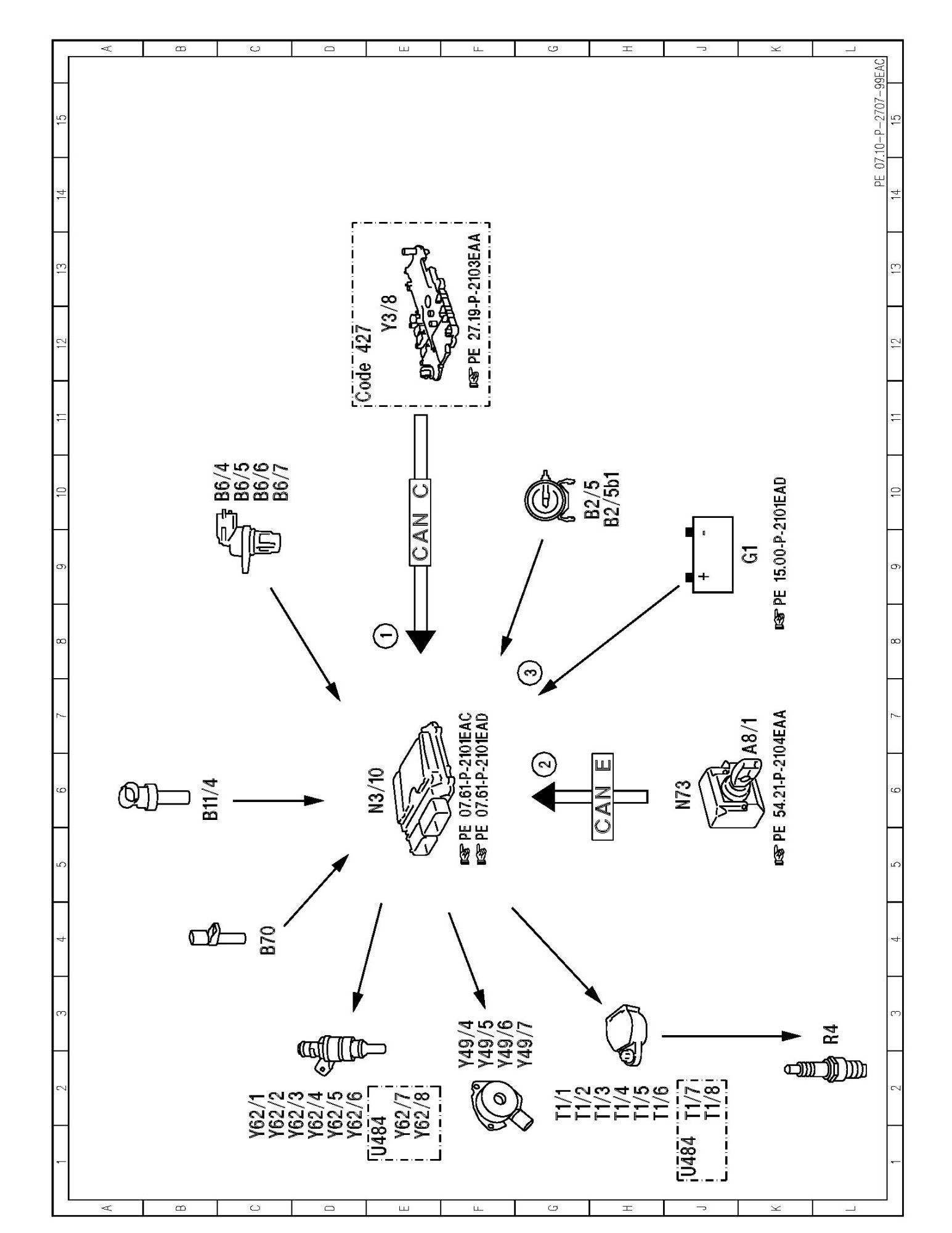

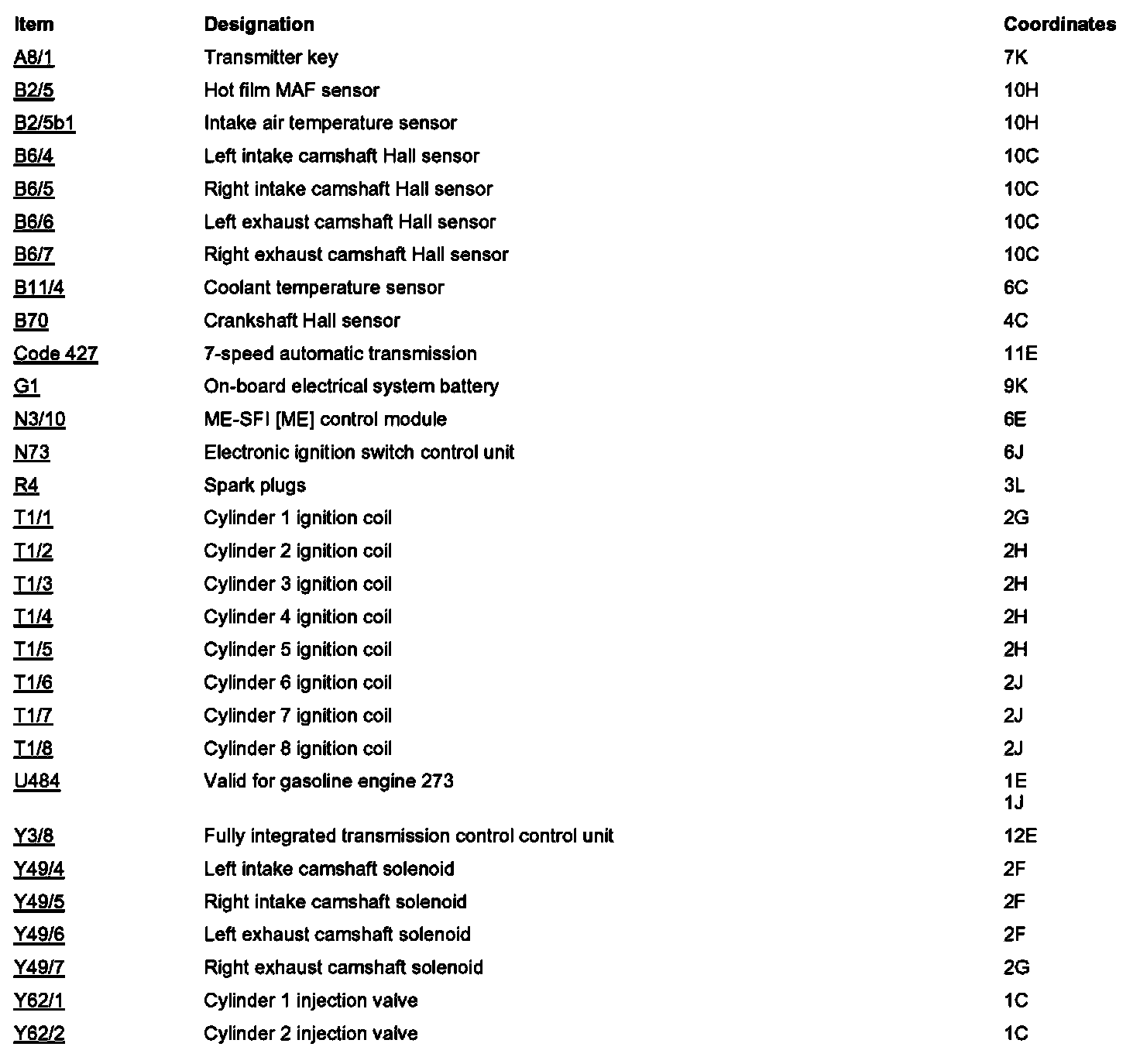

PE07.10-P-2707EAB Electrical Function Schematic For Start Phase, Post-Start Phase and Warm-Up Enrichment

PE07.10-P-2707EAC Electrical Function Schematic For Start Phase, Post-Start Phase and Warm-Up Enrichment















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
