PE07.10-P-2704EAB Electrical Function Diagram For Injection Control

PE07.10-P-2704EAB Electrical Function Diagram For Injection Control

ENGINE 272, 273 (except 272.98) in MODEL 207

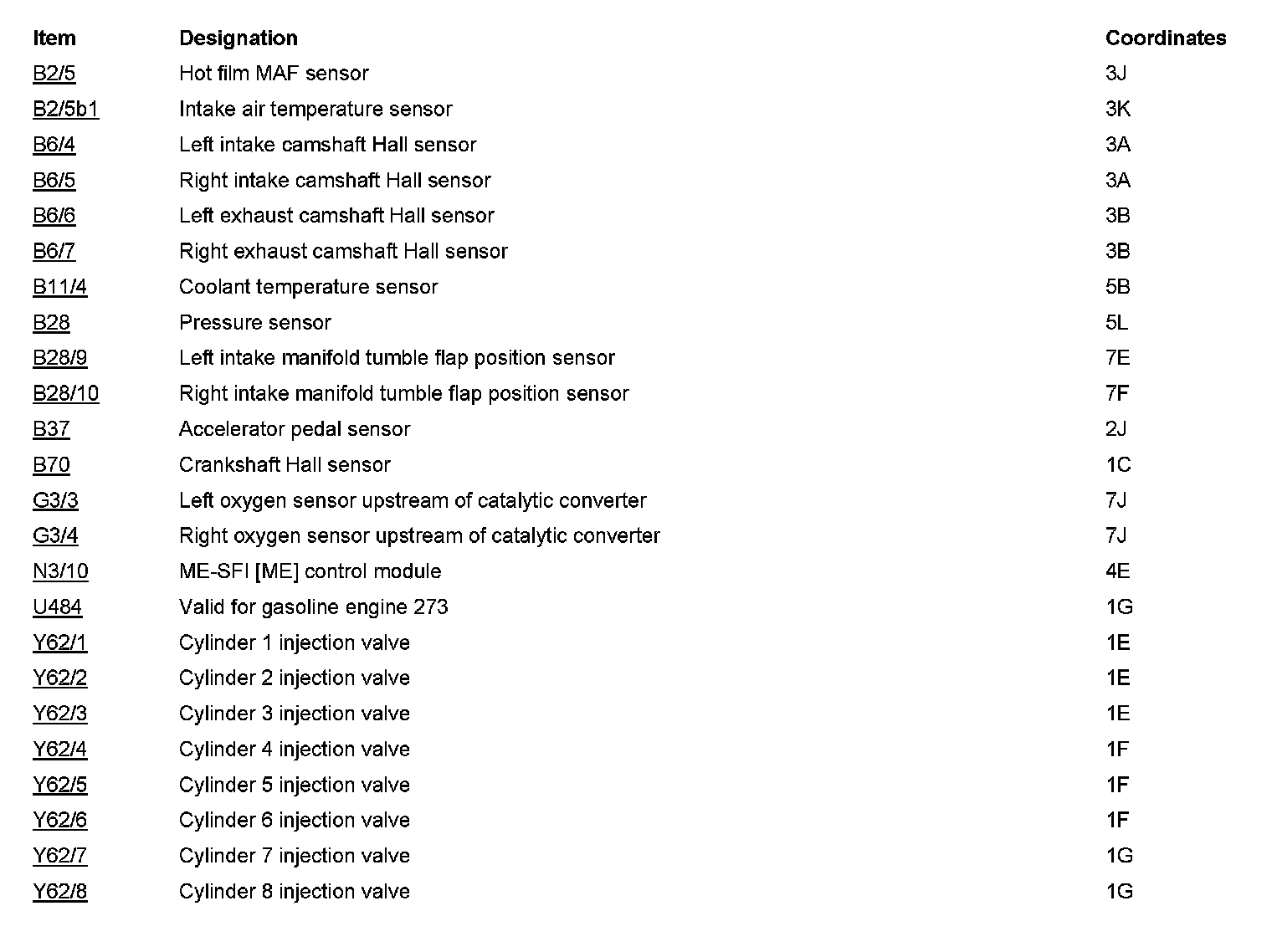

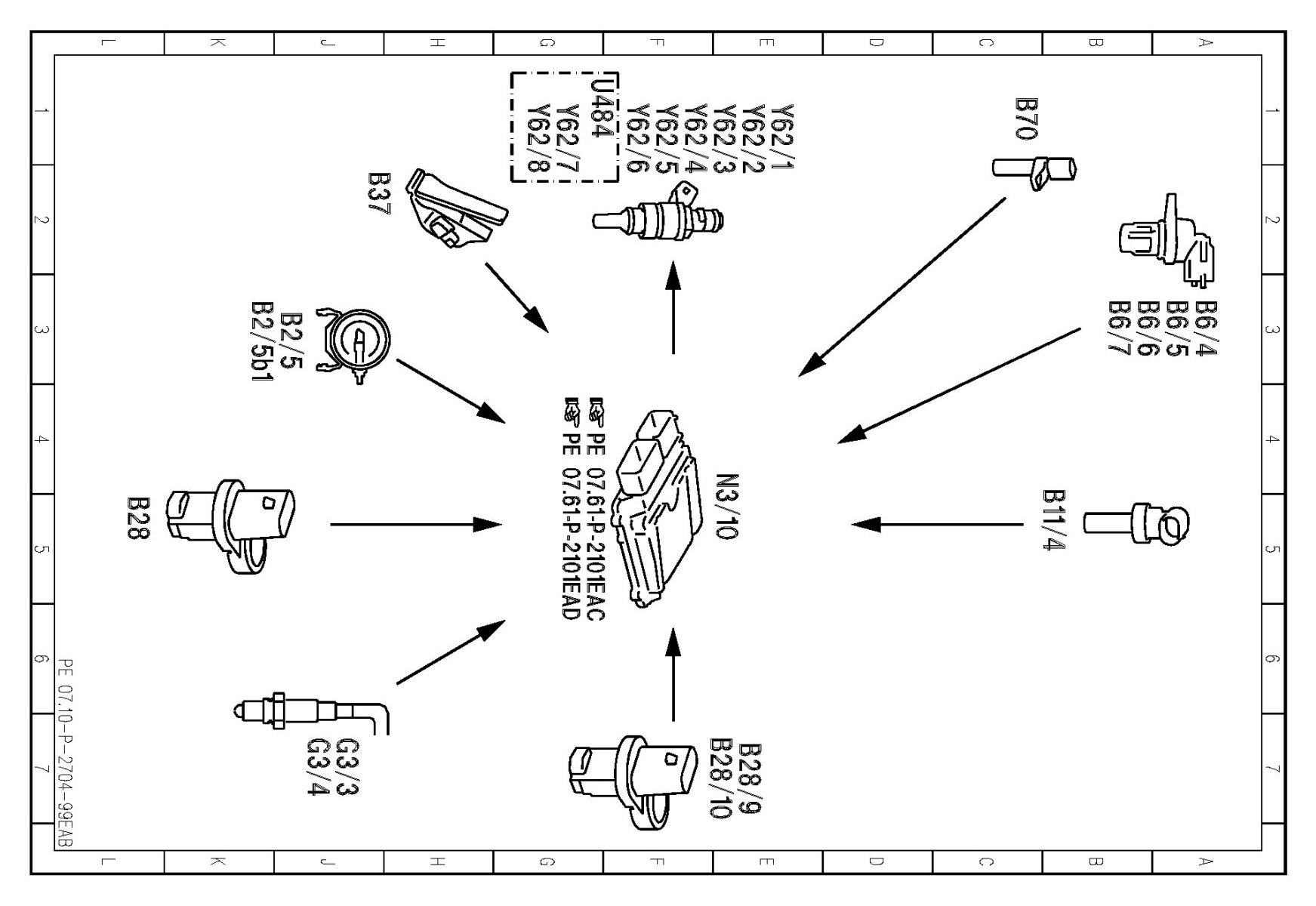

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
