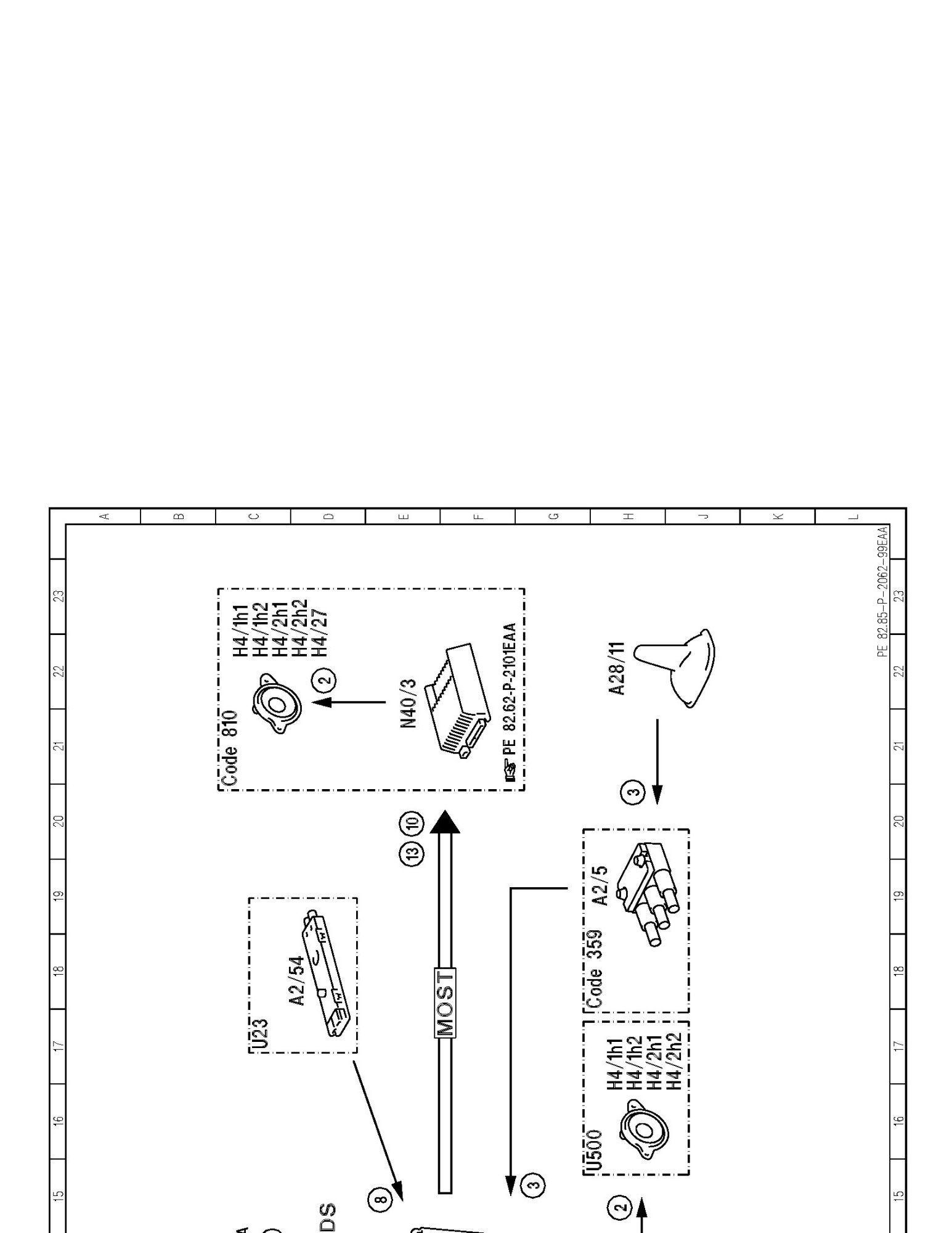

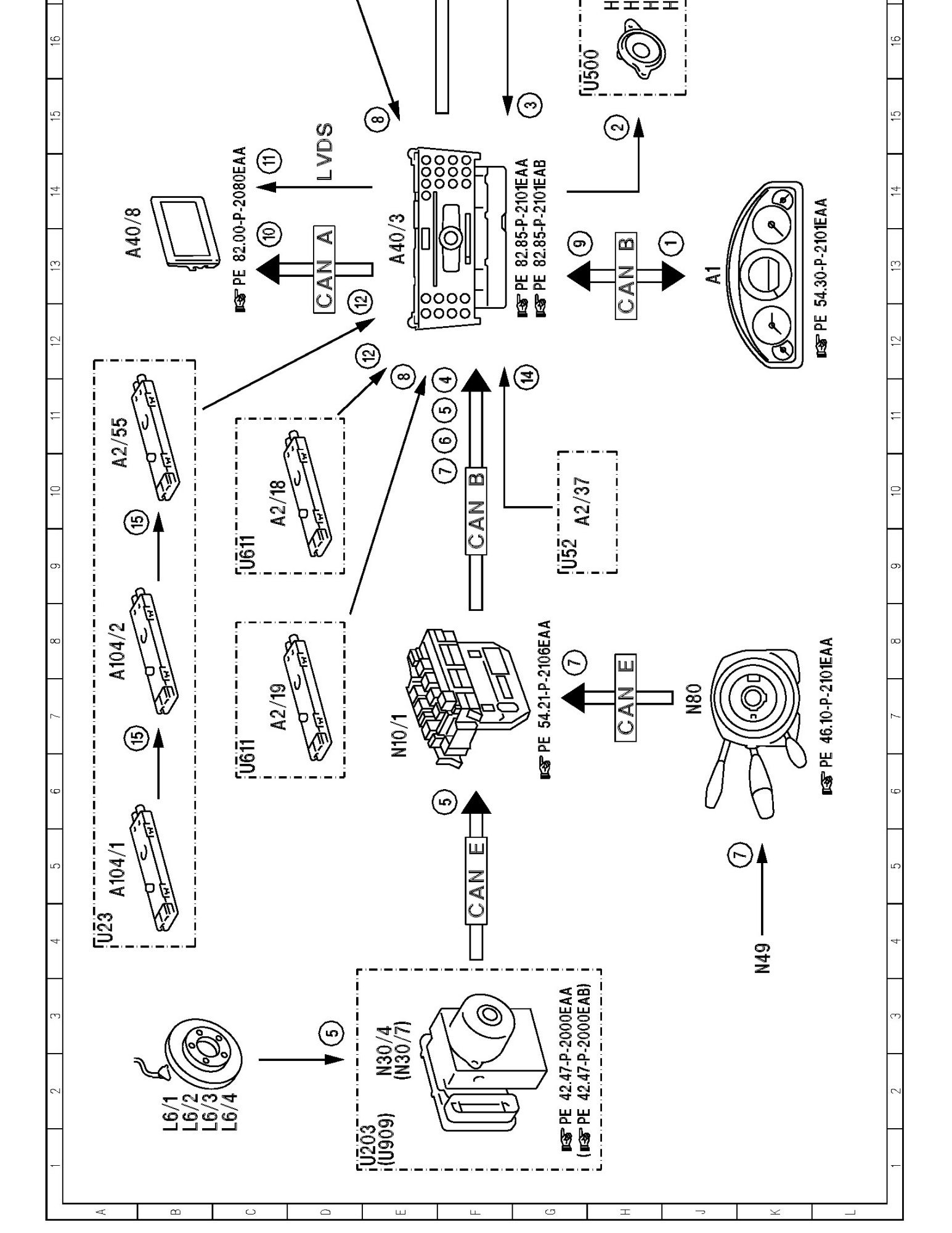

PE82.85-P-2062EAA Electrical Function Diagram For Position Finding and Navigation (COMAND), Function

PE82.85-P-2062EAA Electrical Function Diagram For Position Finding and Navigation (COMAND), Function
- with CODE (512) COMAND APS with DVD changer
- with CODE (527) COMAND APS with single DVD drive (with navigation)



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
