PE80.45-P-2053EAA Electrical Function Diagram For Convenience Opening/Closing Via Air Recirculation Function

PE80.45-P-2053EAA Electrical Function Diagram For Convenience Opening/Closing Via Air Recirculation Function
- except CODE (494) USA version

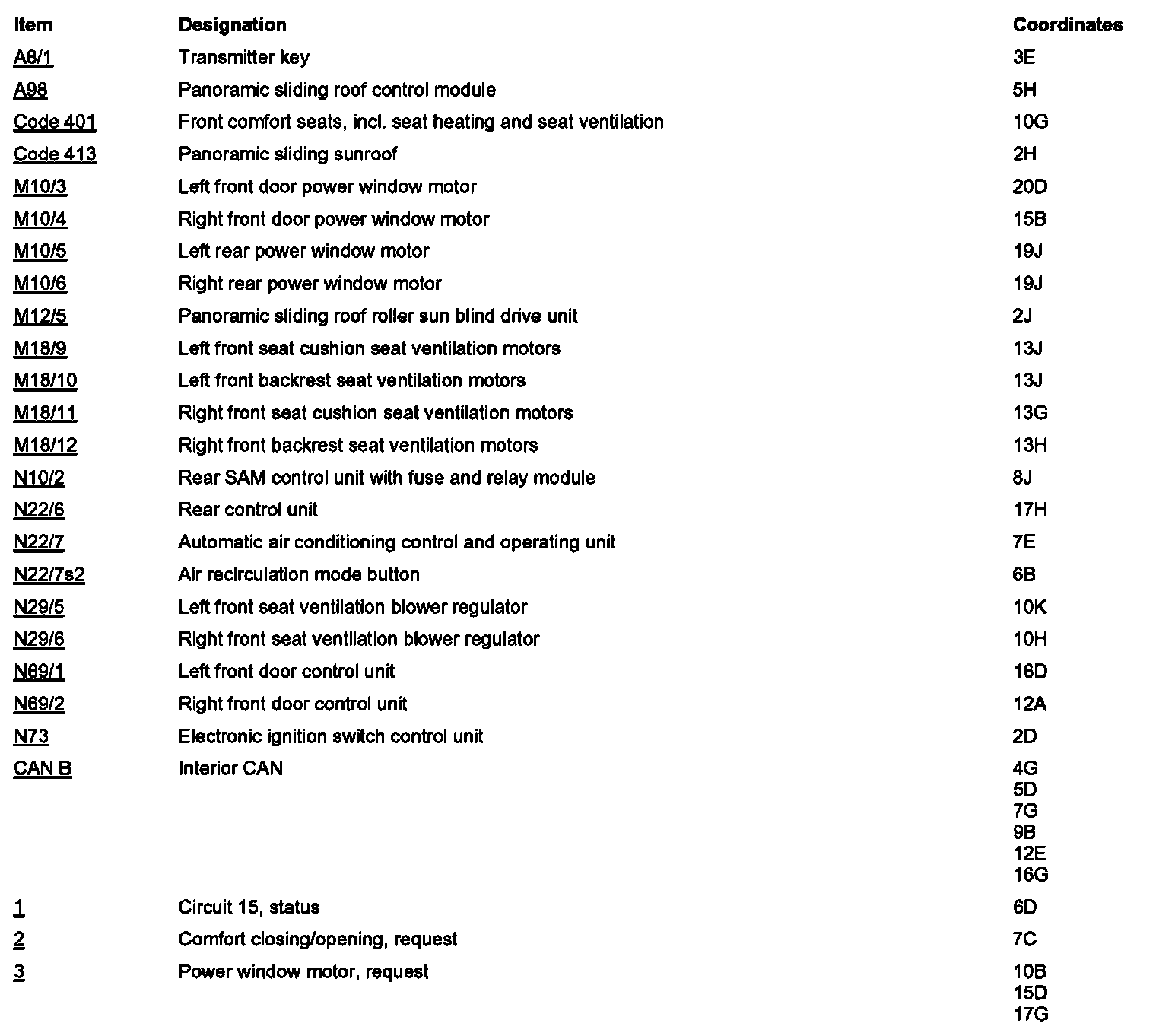

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
