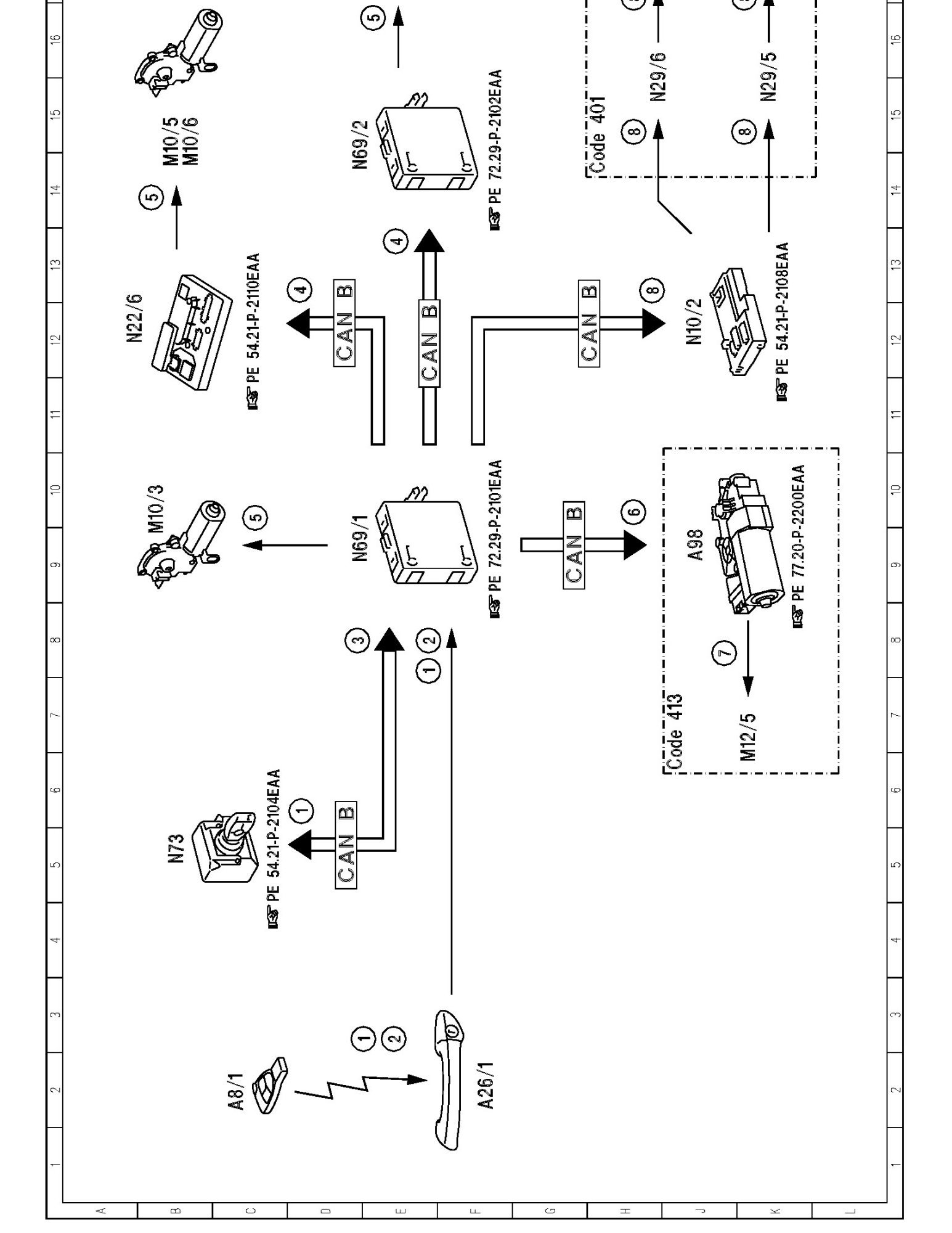

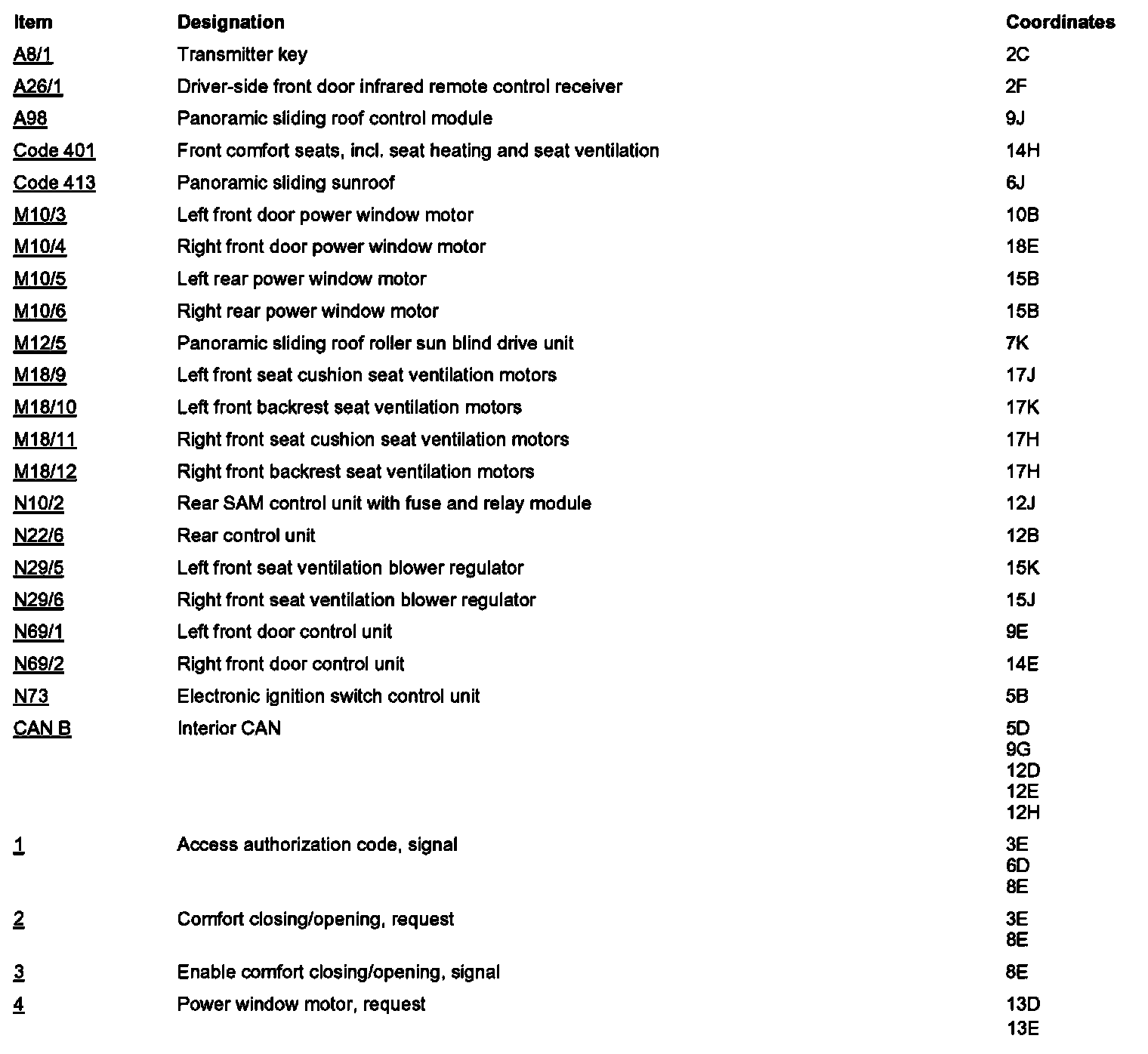

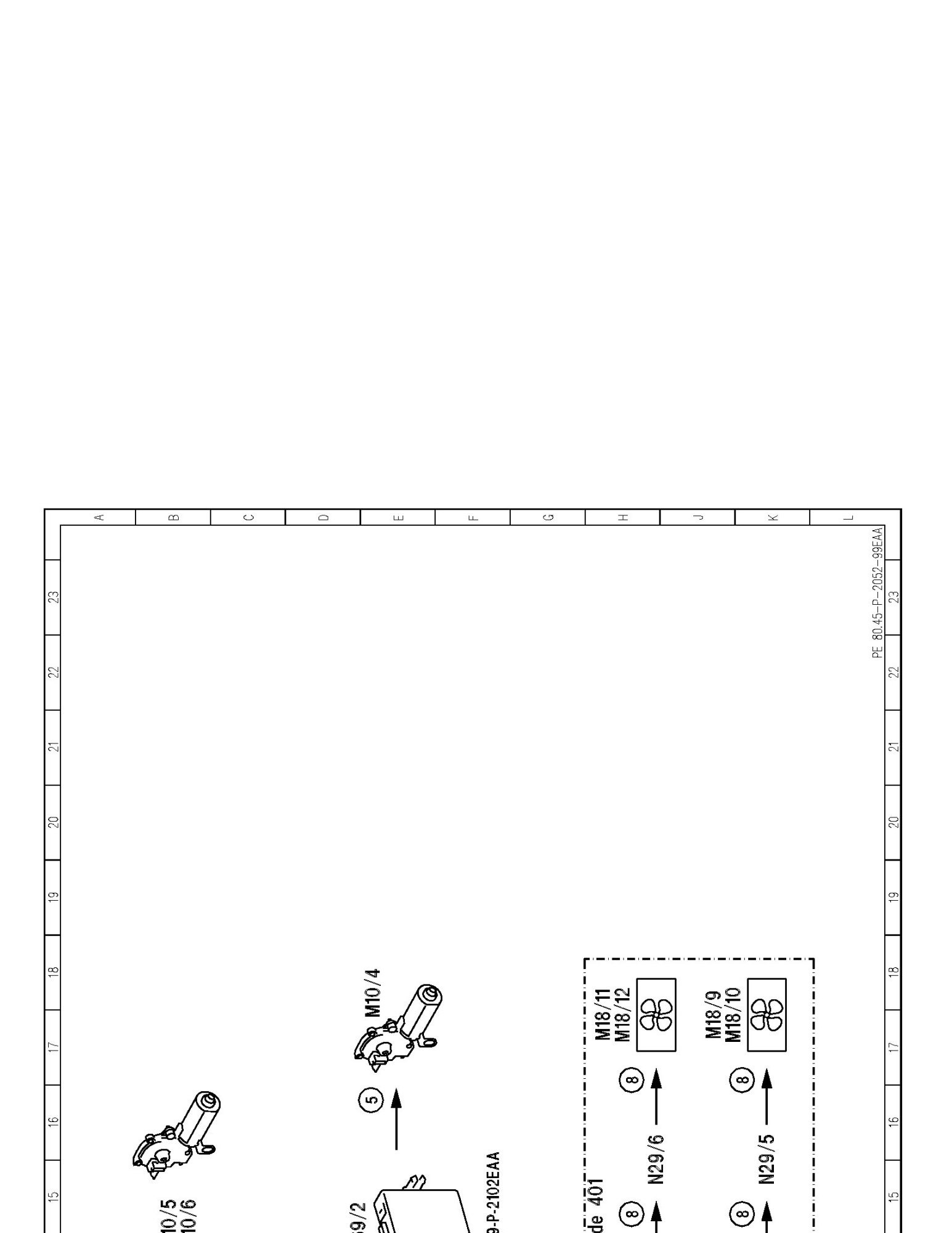

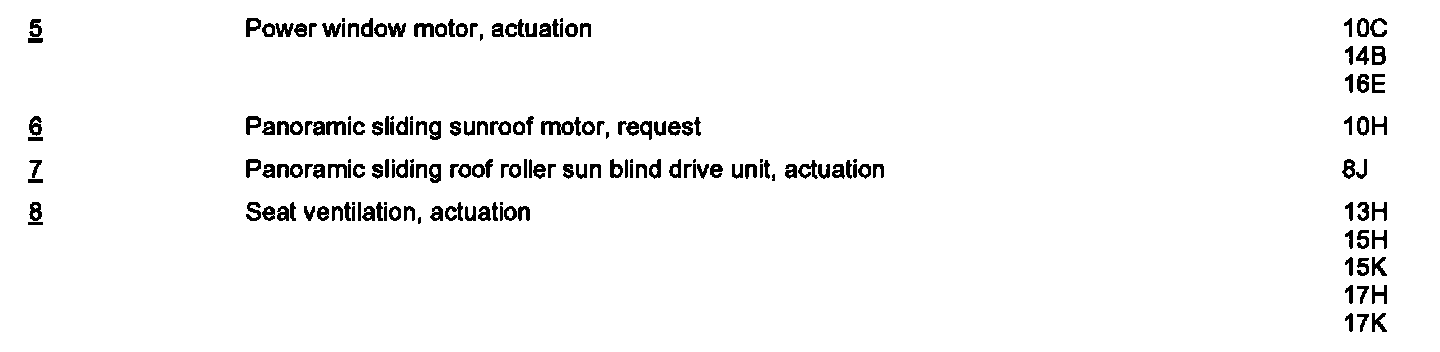

PE80.45-P-2052EAA Function Schematic For Electric Convenience Opening/Closing With Transmitter Key

PE80.45-P-2052EAA Function Schematic For Electric Convenience Opening/Closing With Transmitter Key



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
