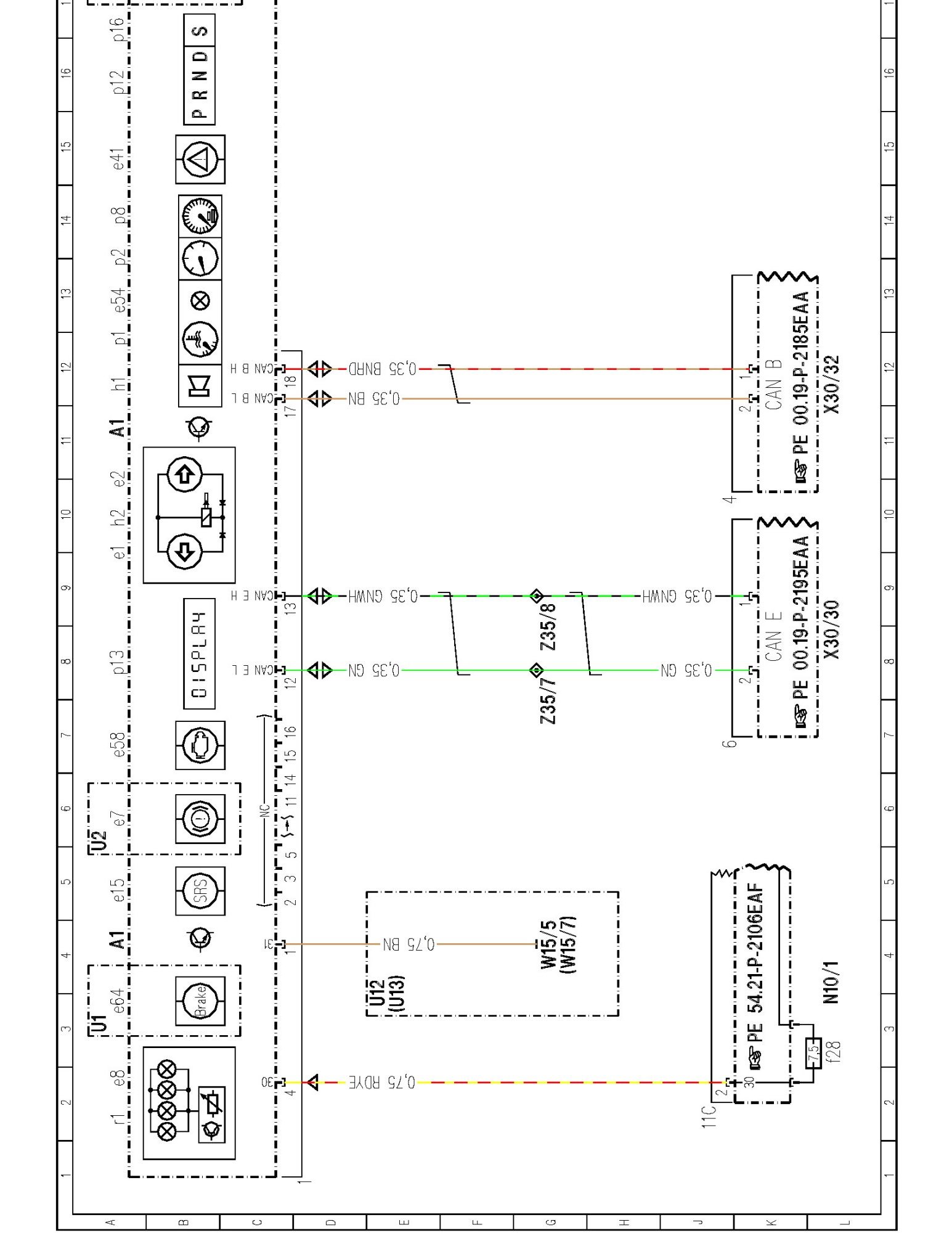

PE54.30-P-2101EAA Electrical Function Schematic, Instrument Cluster Trip Computer

PE54.30-P-2101EAA Electrical Function Schematic, Instrument Cluster Trip Computer

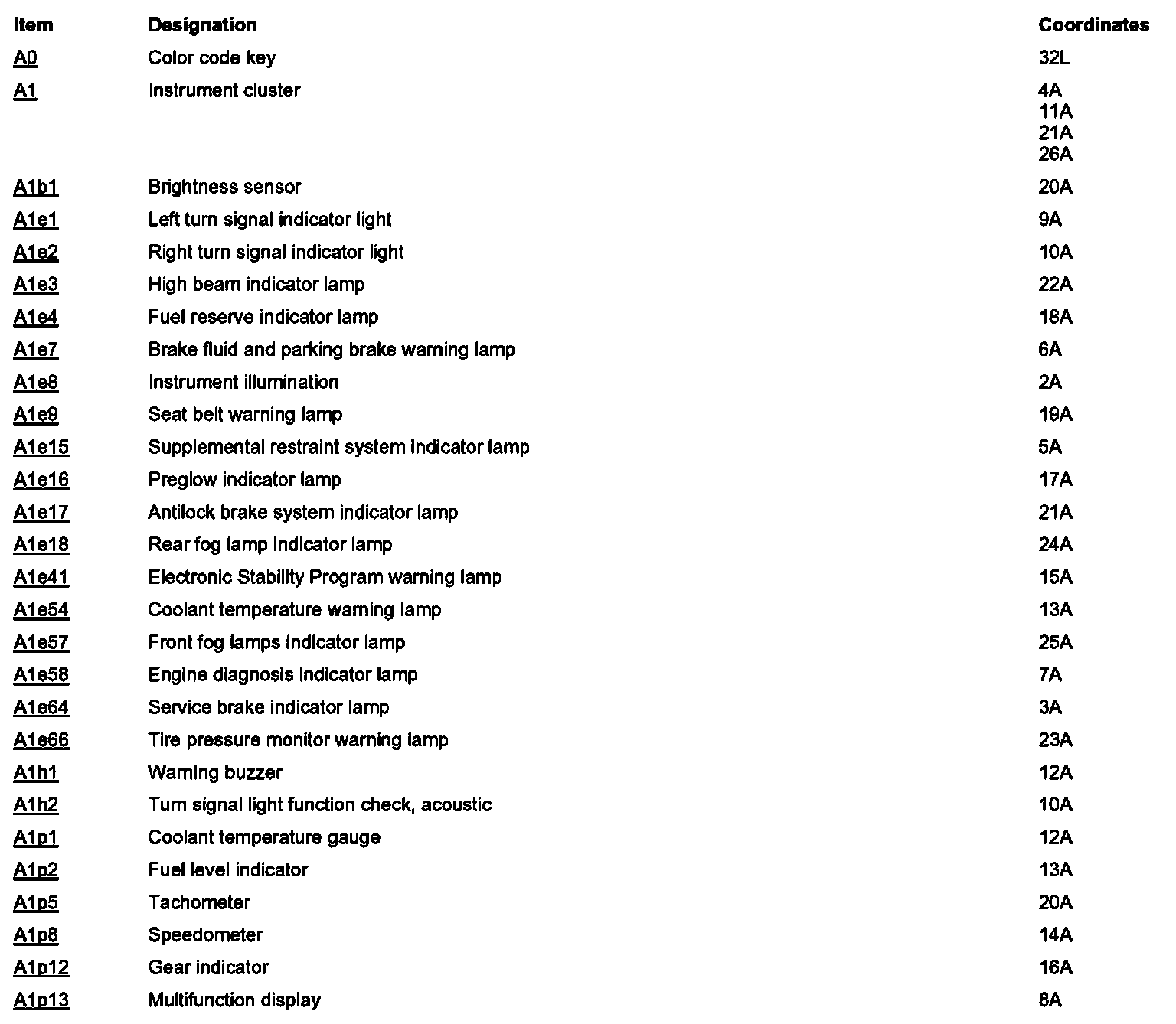

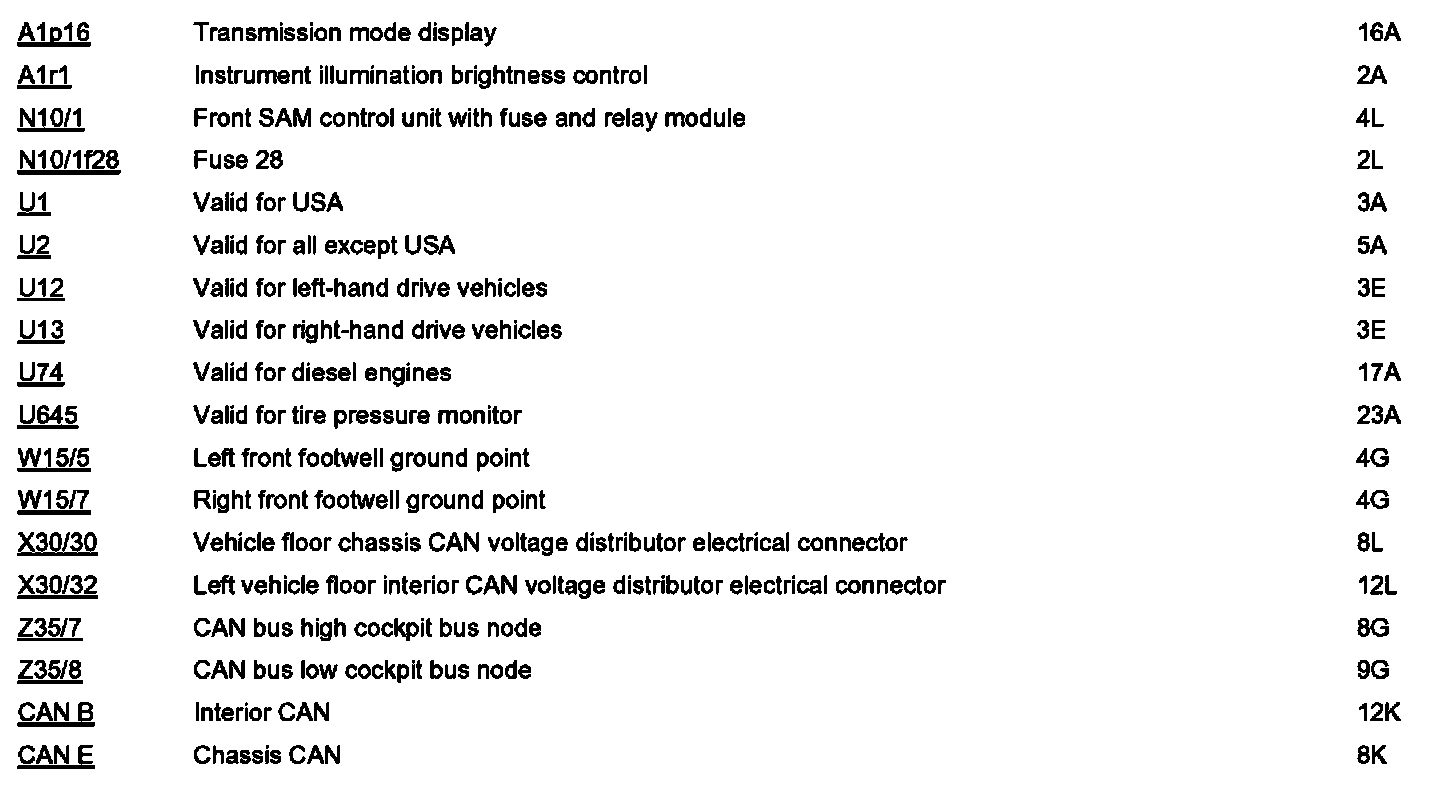

- Control unit A1



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
