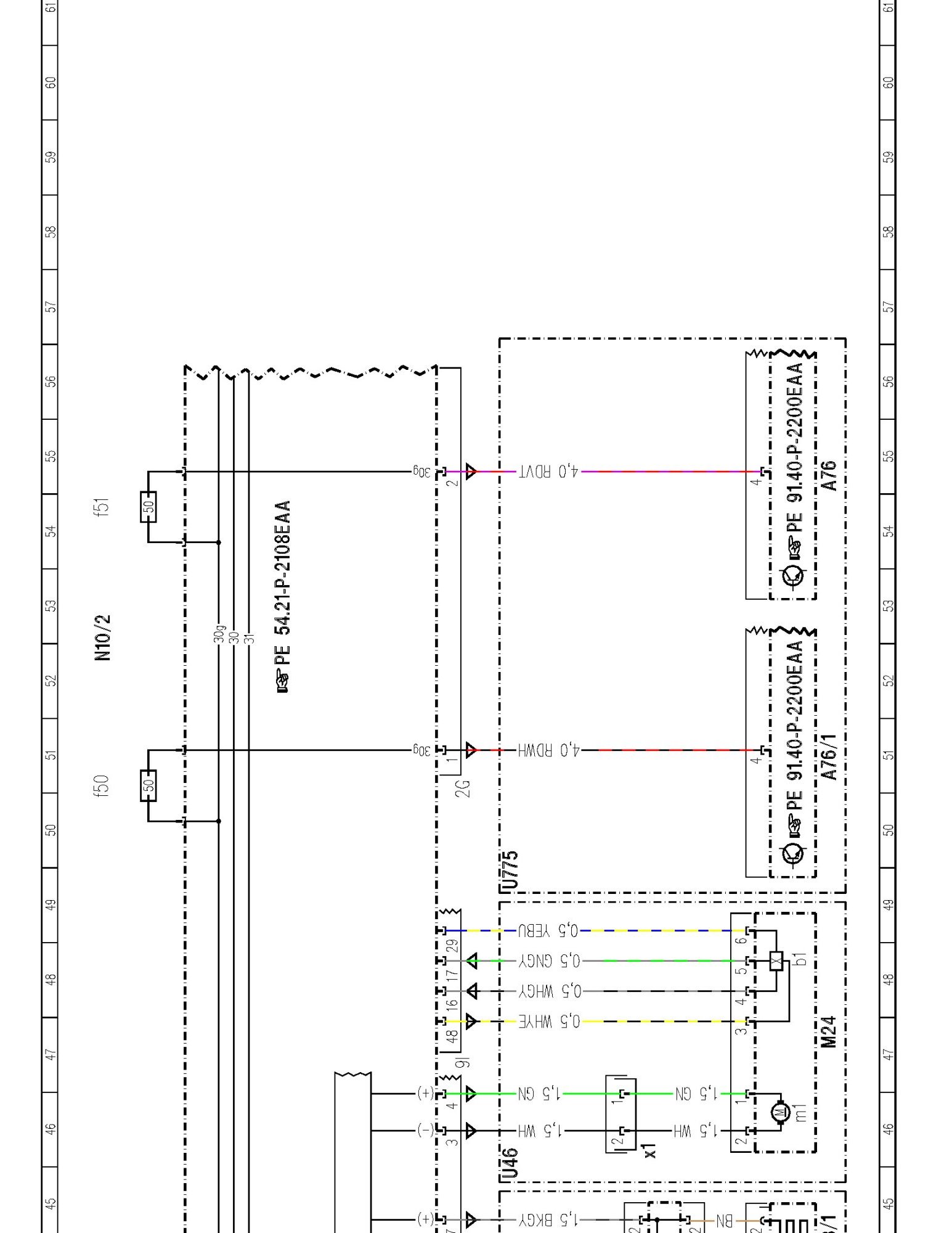

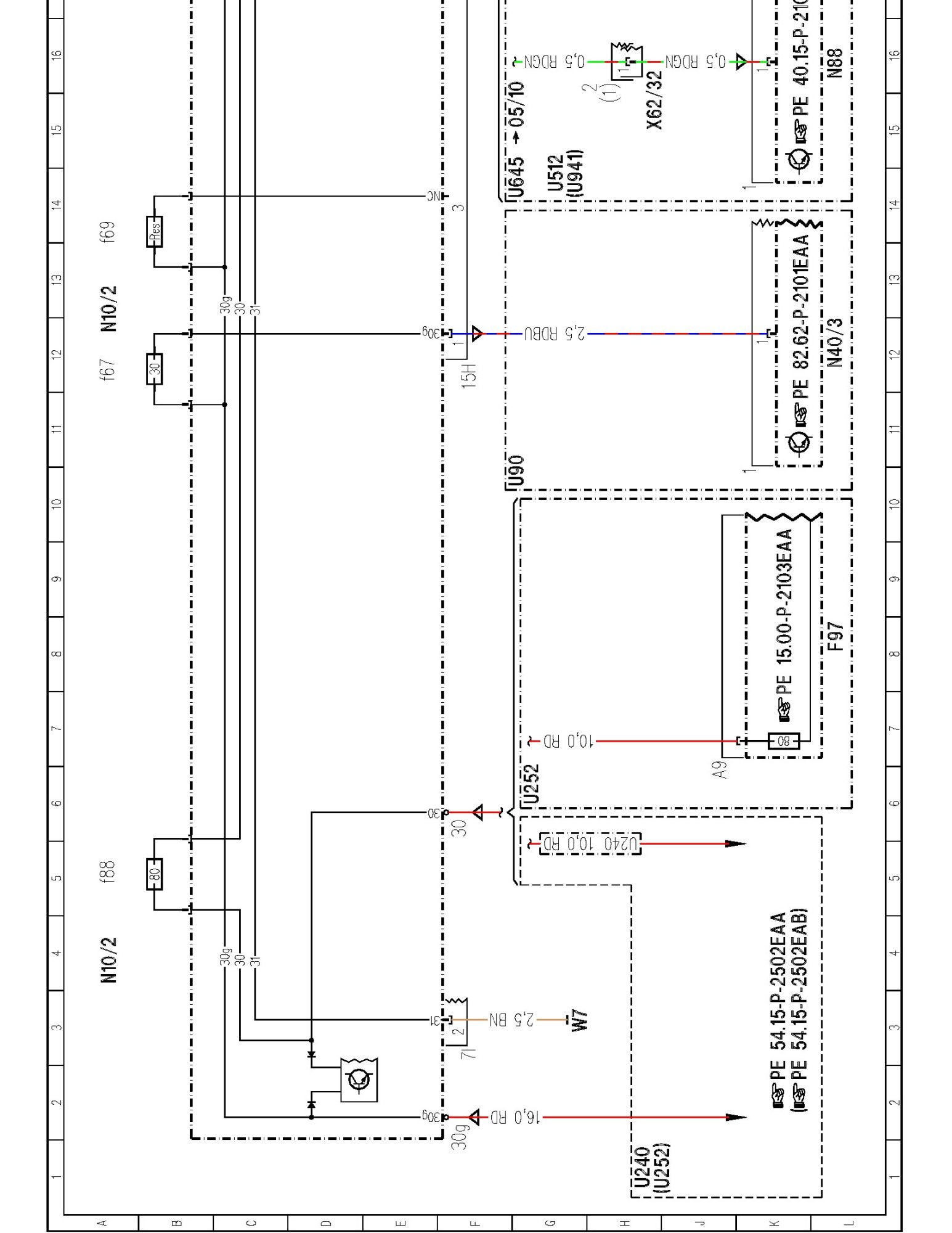

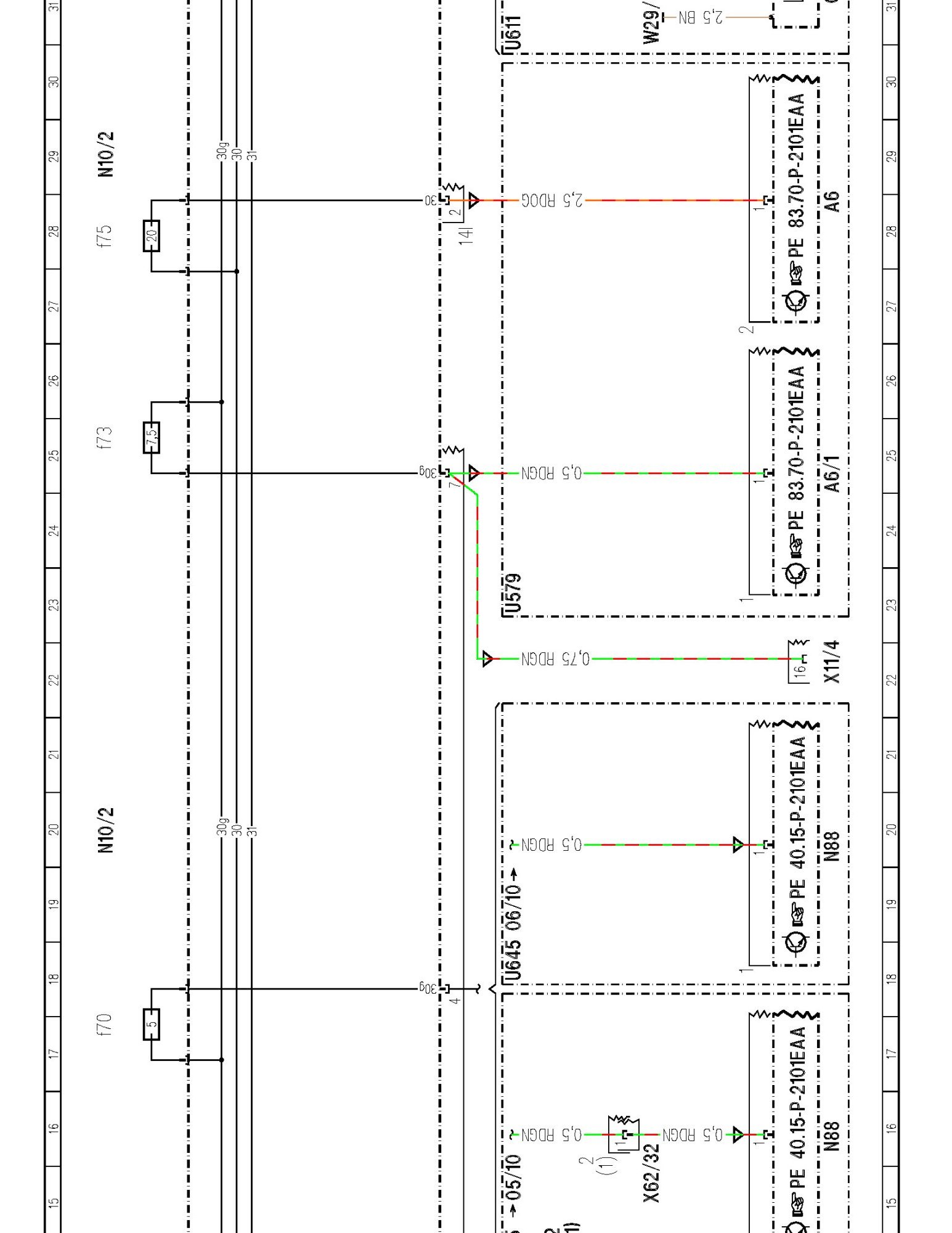

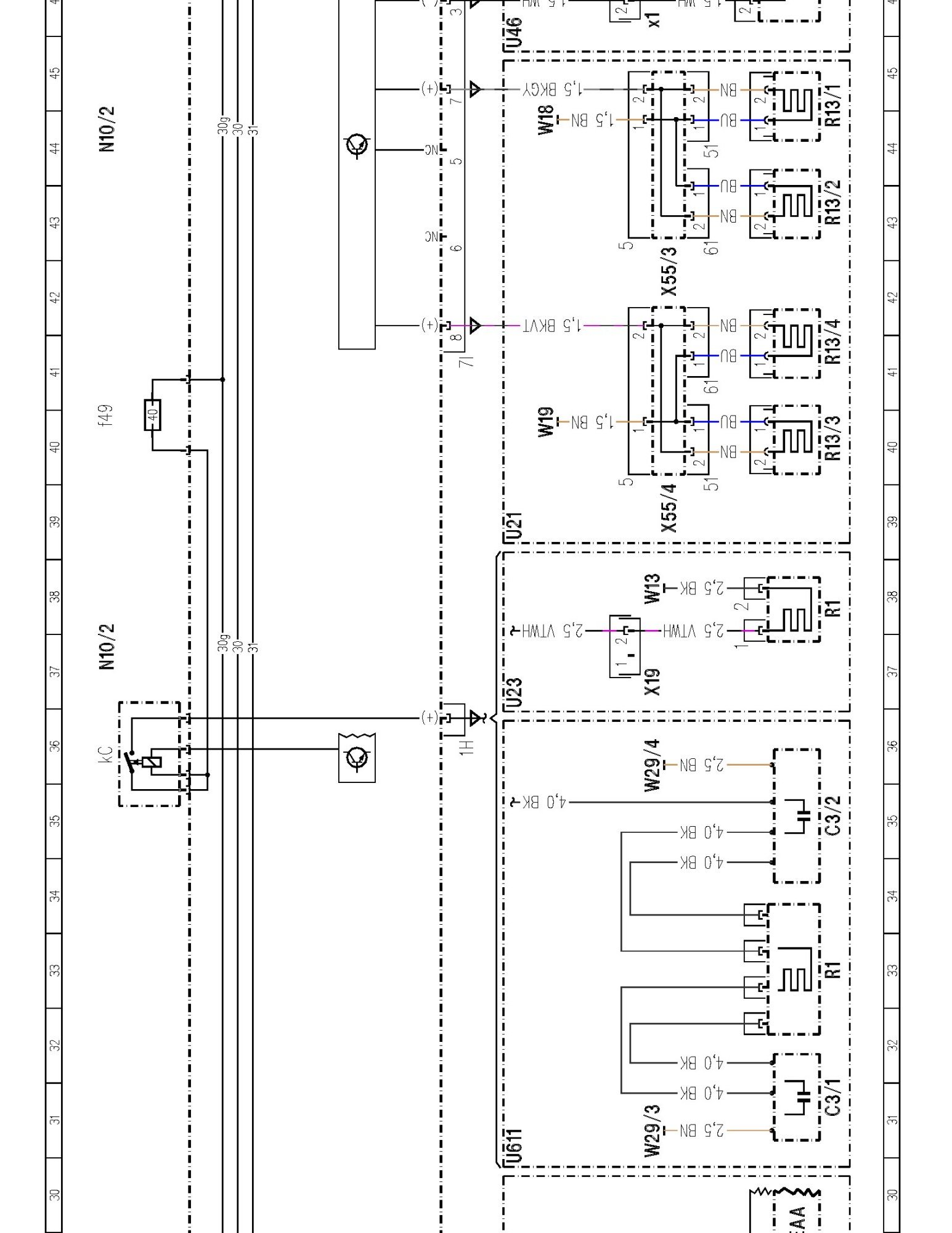

PE54.21-P-2108EAG Rear SAM Control Unit With Fuse and Relay Module (/)N10/2

PE54.21-P-2108EAG Rear SAM Control Unit With Fuse and Relay Module (/)N10/2
- Sheet 7































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
