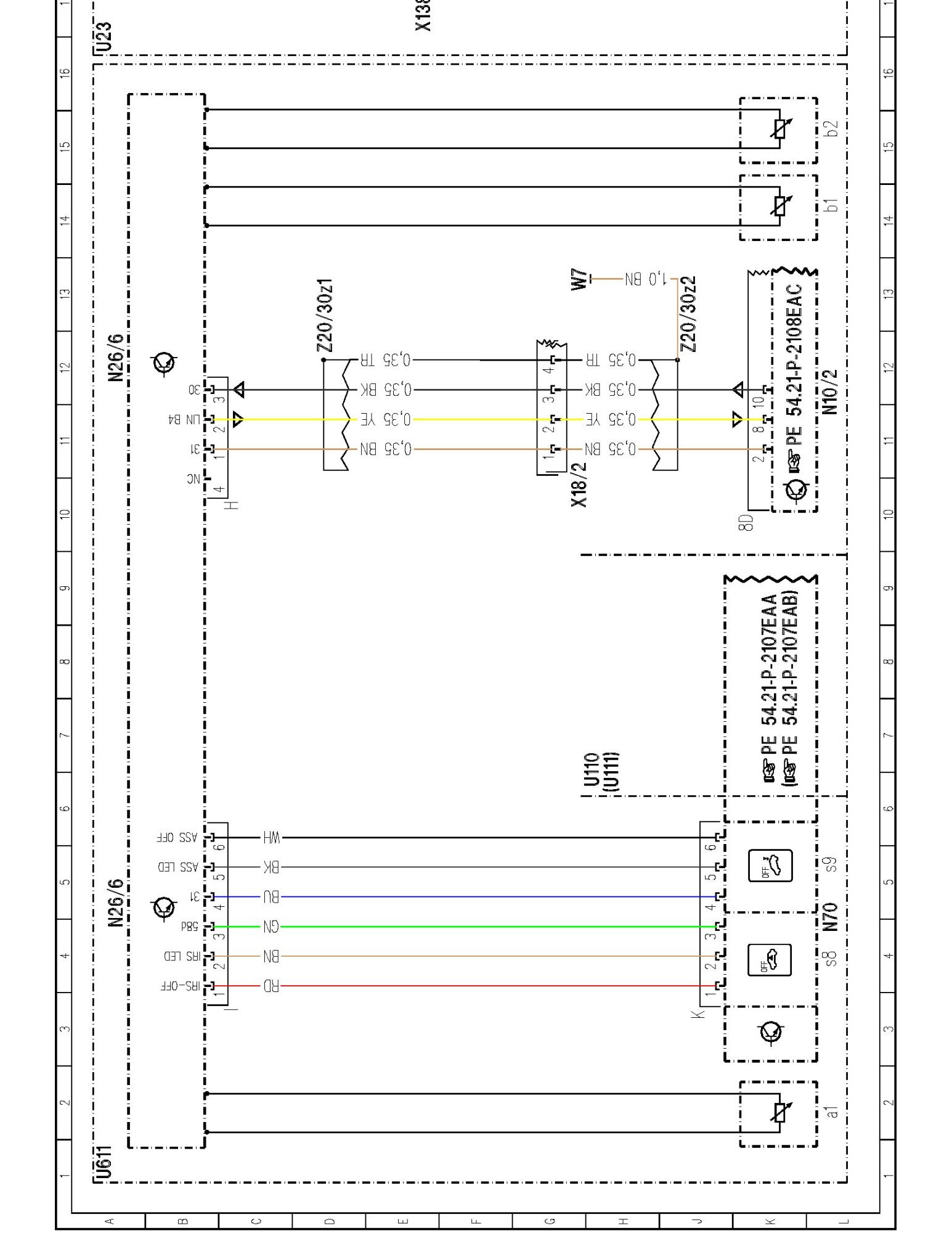

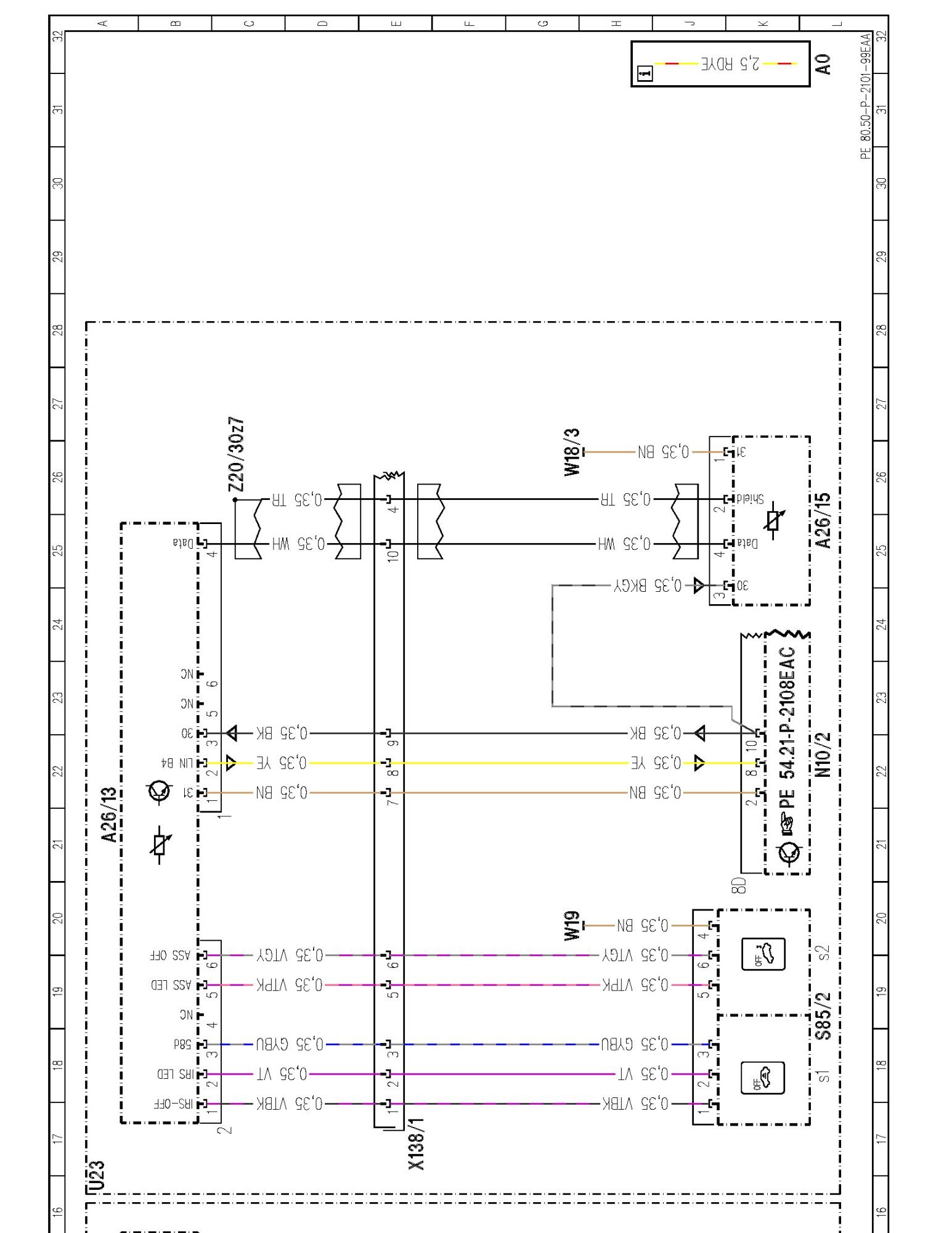

PE80.50-P-2101EAA Electric Wiring Diagram For Antitheft Alarm System Control Unit (ATA)

PE80.50-P-2101EAA Electric Wiring Diagram For Antitheft Alarm System Control Unit (ATA)

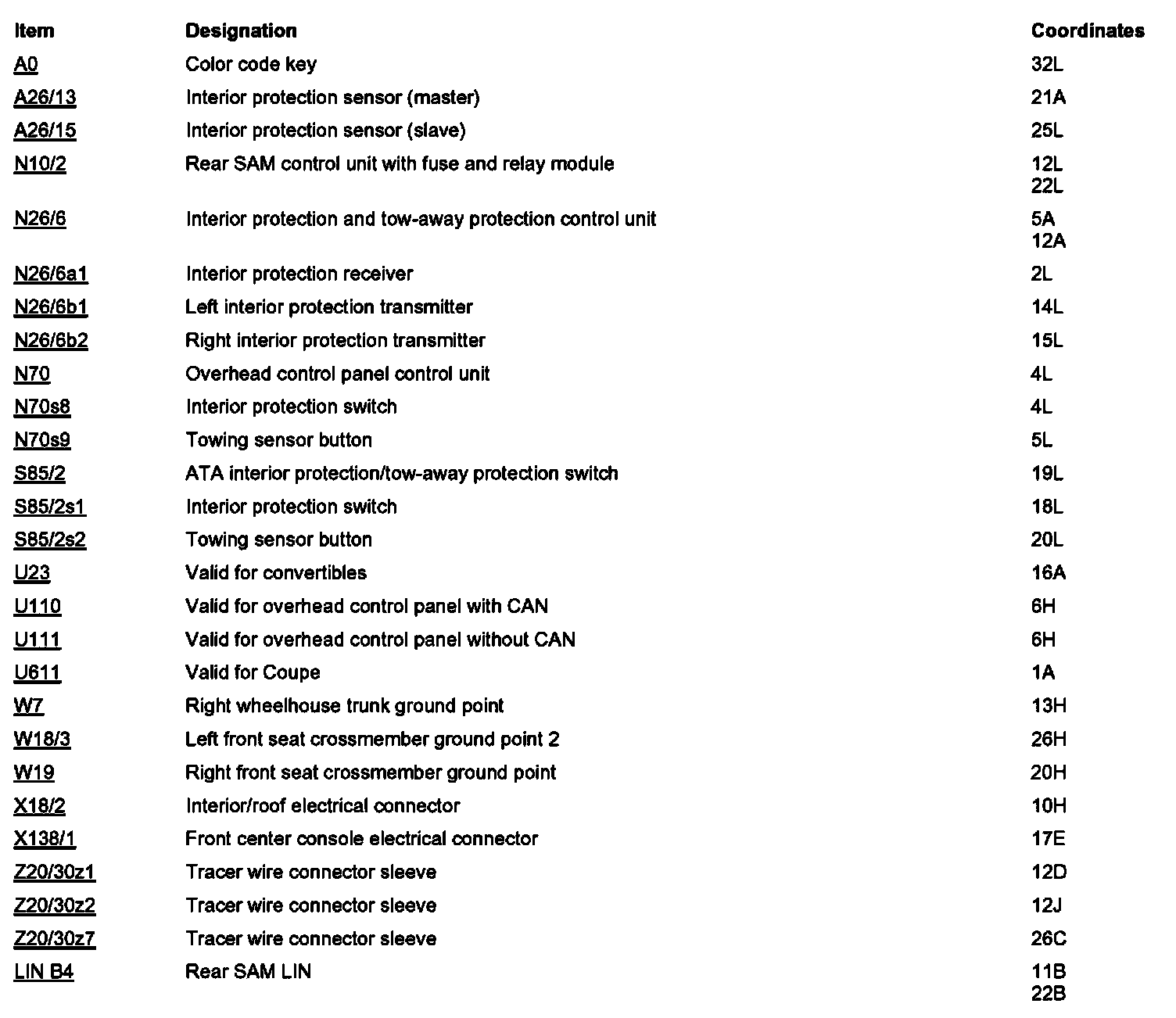

- Control unit N26/6















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
