AR67.30-P-4200-05EA Preadjustment of Rear Side Window

AR67.30-P-4200-05EA Preadjustment Of Rear Side Window










129 589 03 21 00, Feeler gauge







209 589 00 09 00, Socket wrench












Soft top open.

1. Move rear window side window (1) and normalize.
2. Loosen bolts on rear side window (1) on window lifter.
Rubber grommet on bolts already removed.

3. Push up rear side window (1).

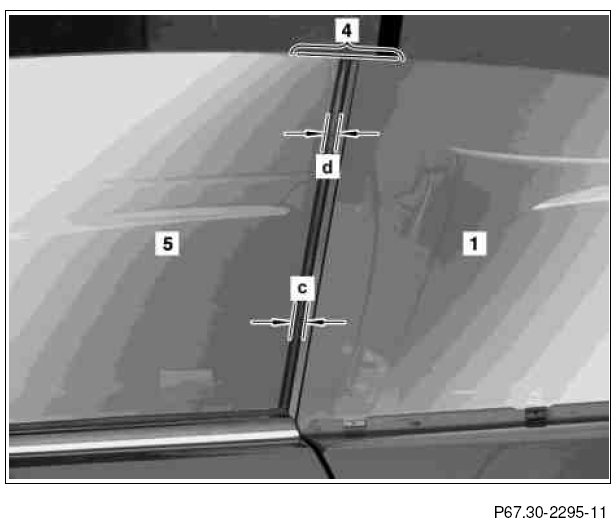

The stay (4) should be flush with the door window (5) at top.

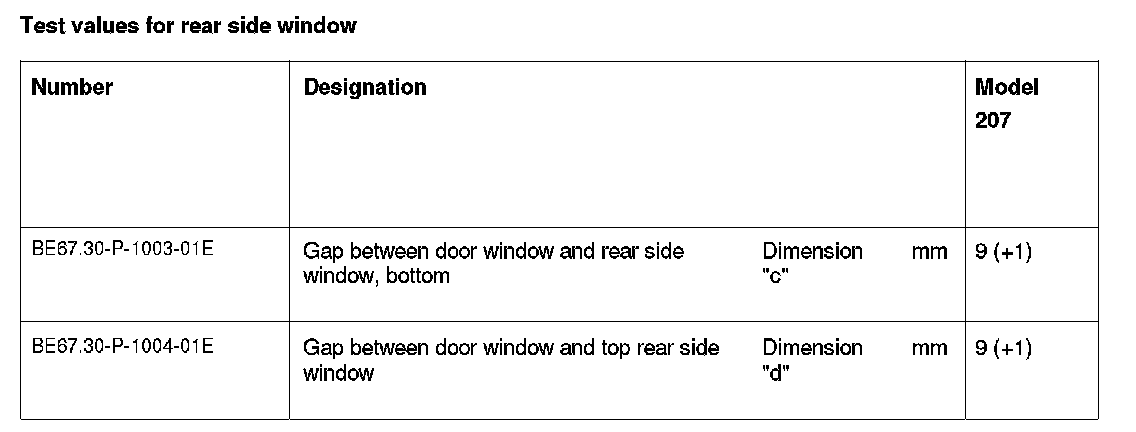

4. Adjust dimension (c, d) between rear side window (1) and door window (5).

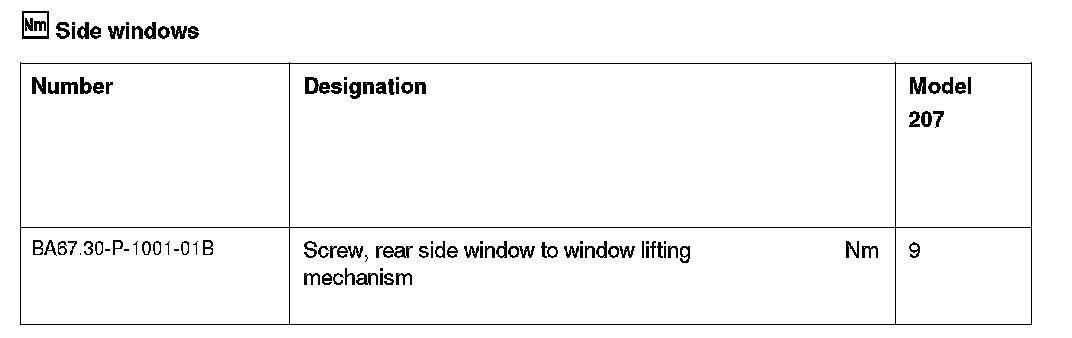

5. Tighten bolts on rear side window (1) on window lifter.
