AR67.30-P-4200-02EA Adjust Window Transition of Rear Side Window

AR67.30-P-4200-02EA Adjust Window Transition Of Rear Side Window










129 589 03 21 00, Feeler gauge







209 589 00 09 00, Socket wrench












Check and adjust when soft top is open, door is closed and window is raised.

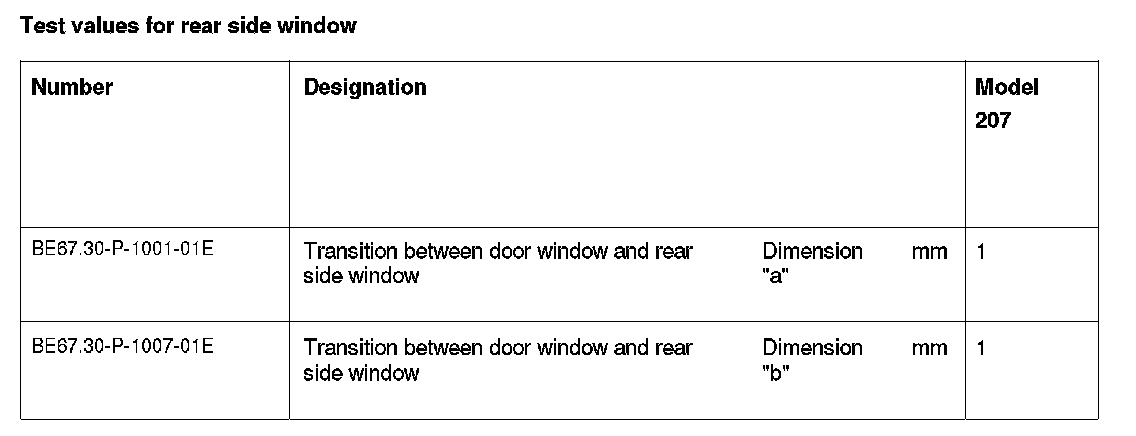

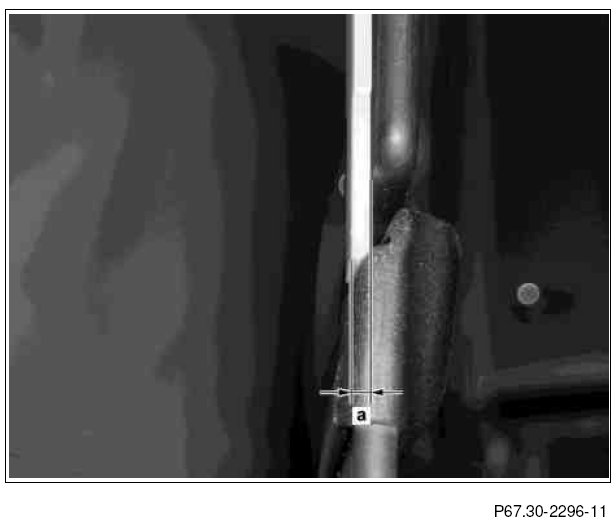

1. Check dimension (a) between door window and rear side window, adjust if necessary.
2. Raise rear side window until it just begins to enter the closed window in the vehicle door.
3. Align top rear side window so that middle of rear side window is positioned at dimension (a) on outer surface of door window.
Adjust at lower mounting bolts of rear window lifter.

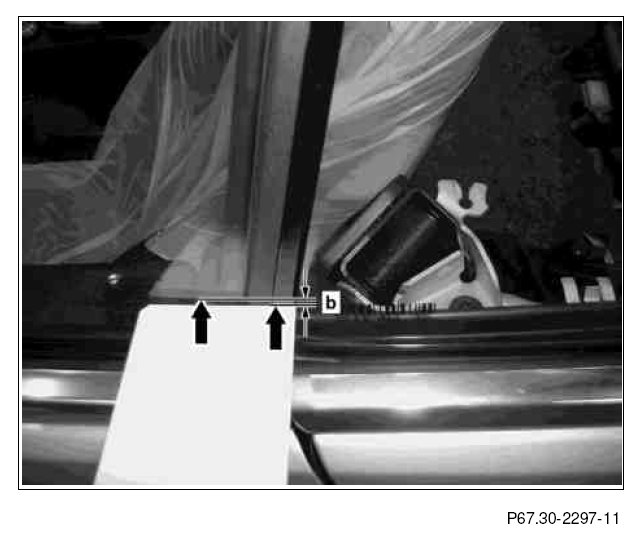

4. Check dimension (b), transition between door window and lower rear side window, adjust if necessary.
Adjust at upper mounting bolt of rear window lifter.
