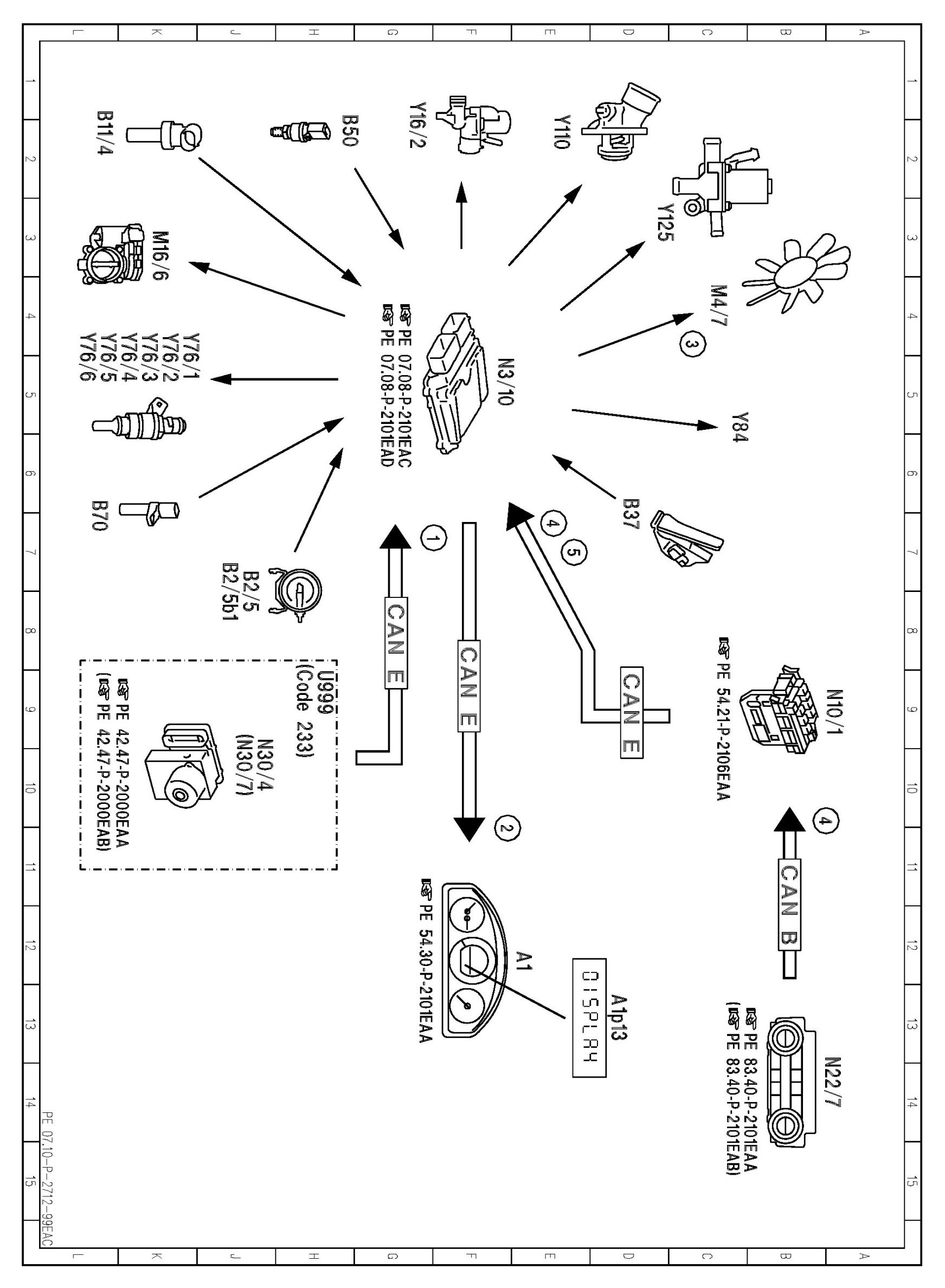

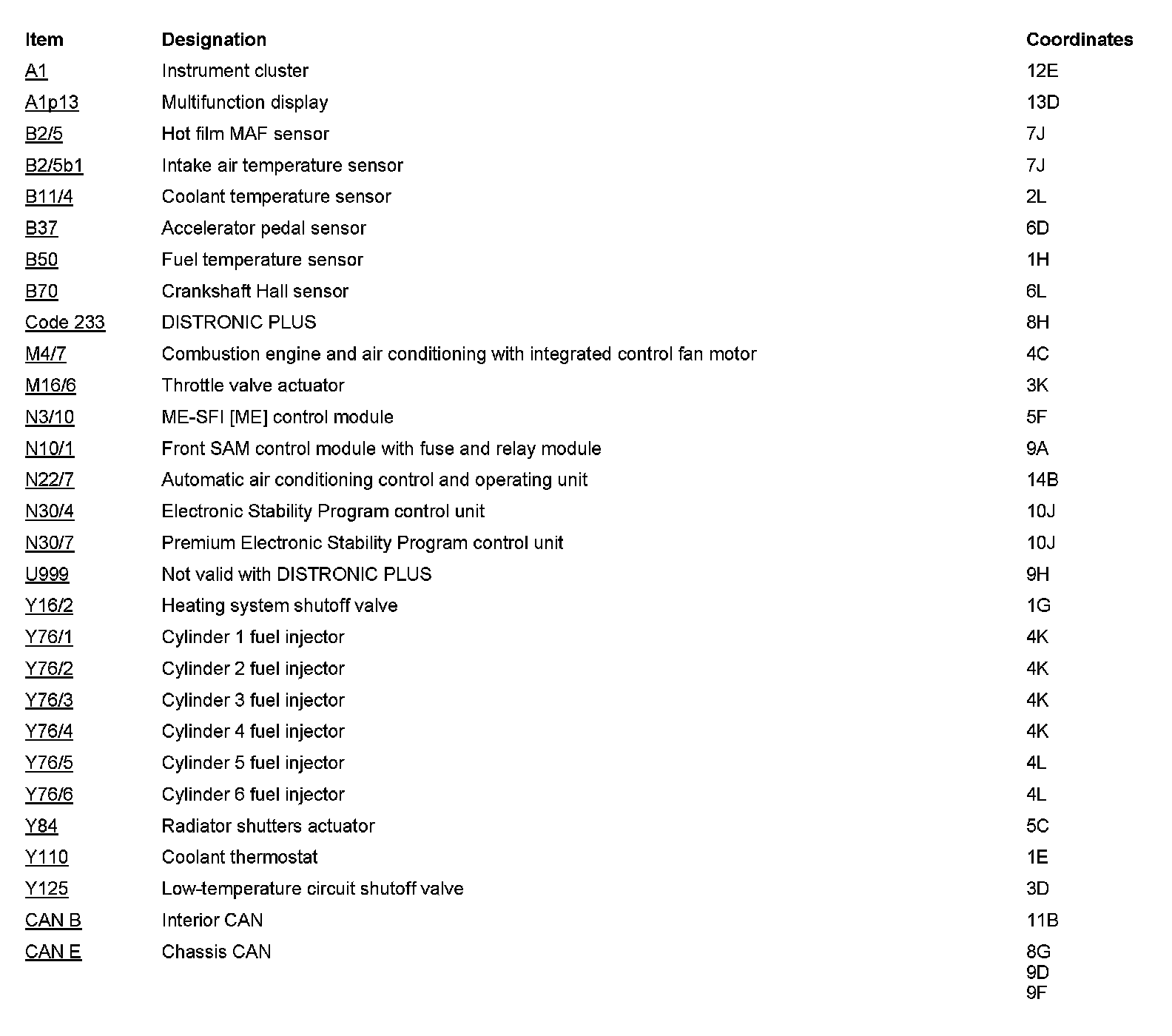

PE07.10-P-2712EAC Electrical Function Schematic For Thermal Management

PE07.10-P-2712EAC Electrical Function Schematic For Thermal Management

ENGINE 272.98 in MODEL 207






















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
