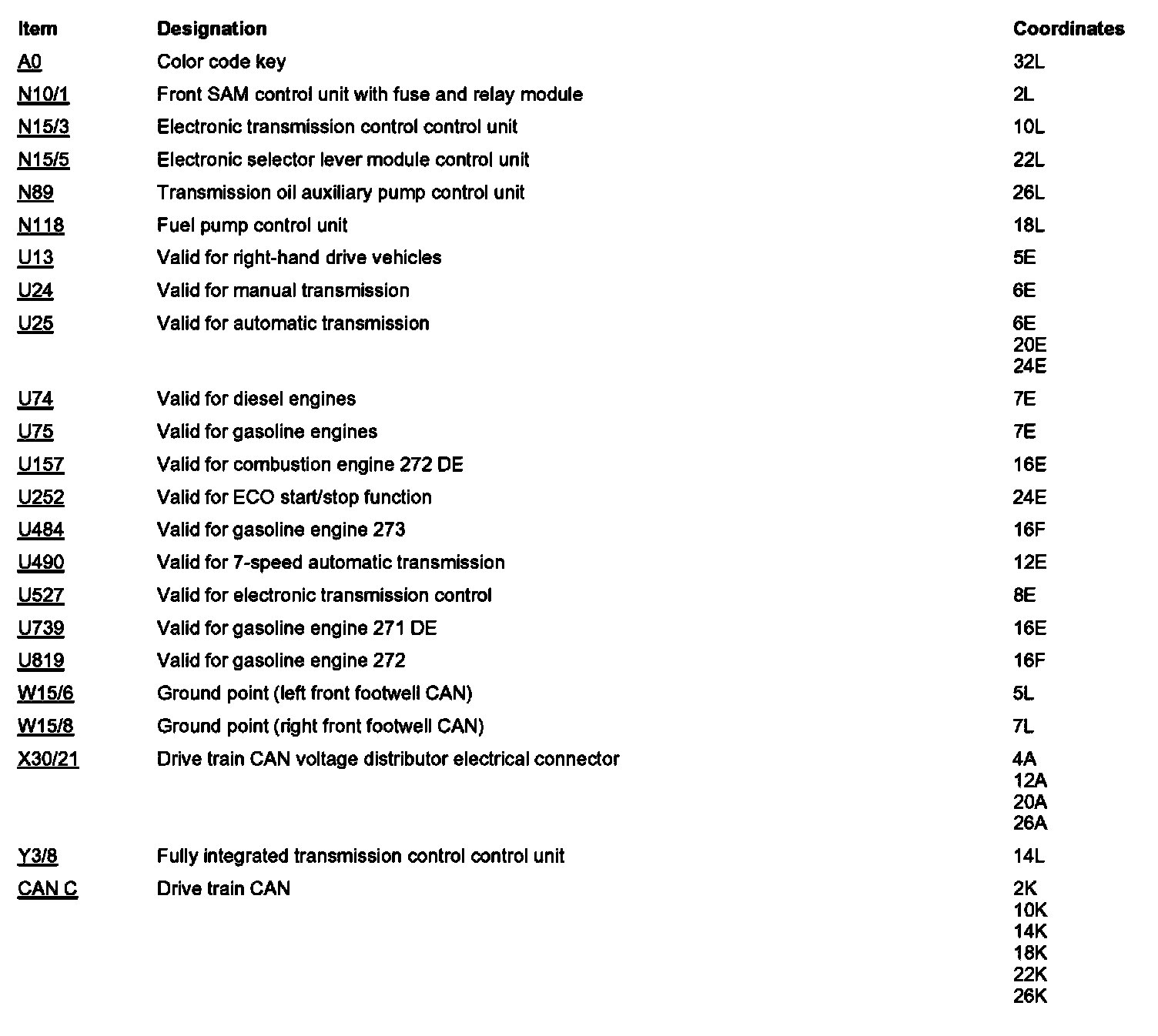

PE00.19-P-2170EAA Drive Train CAN



PE00.19-P-2170EAA Drive Train CAN
- Potential distributor X30/21















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
