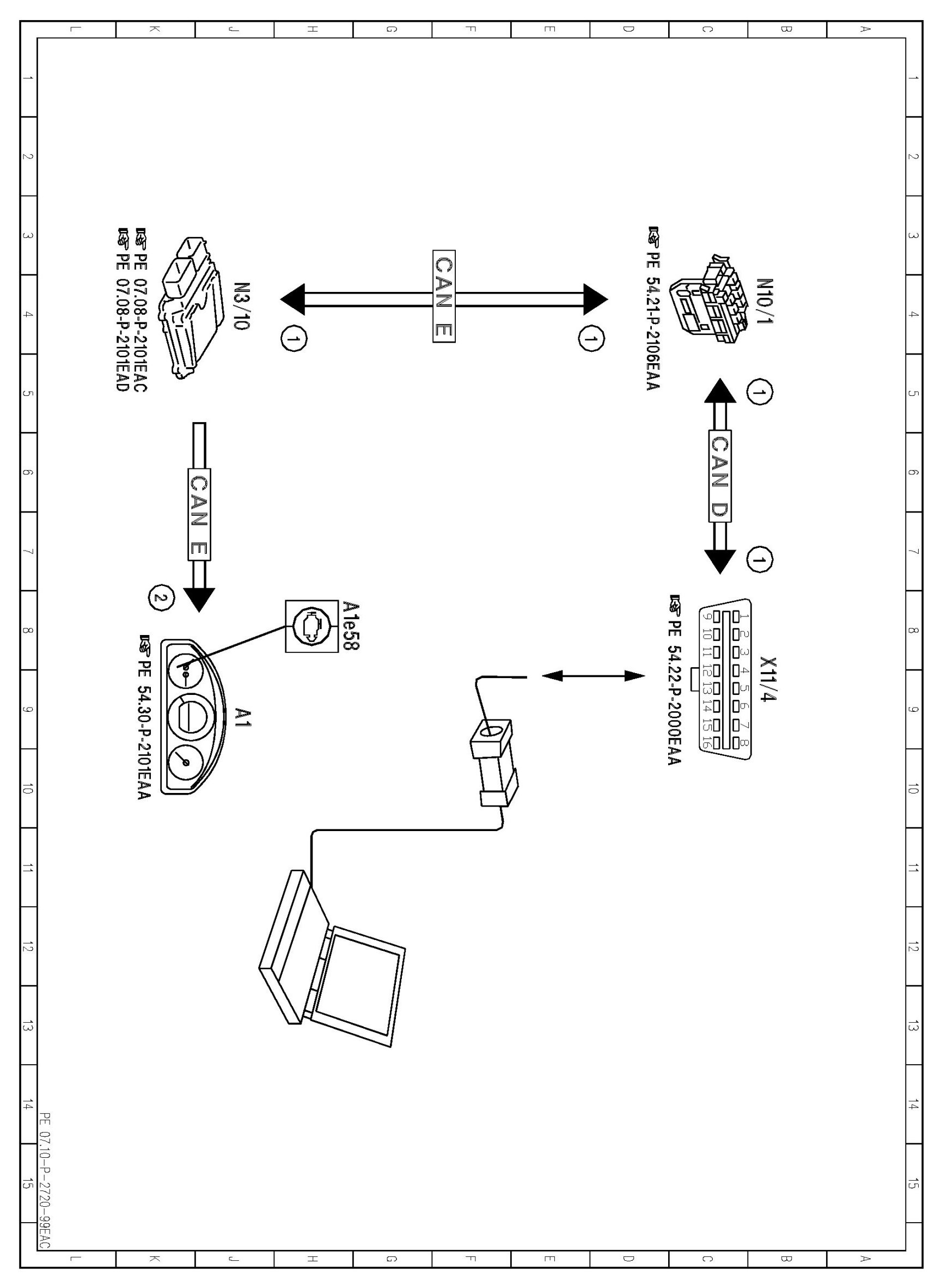

PE07.10-P-2720EAC Electrical Function Schematic For on-Board Diagnosis

PE07.10-P-2720EAC Electrical Function Schematic For On-Board Diagnosis

ENGINE 272.98 in MODEL 207


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
