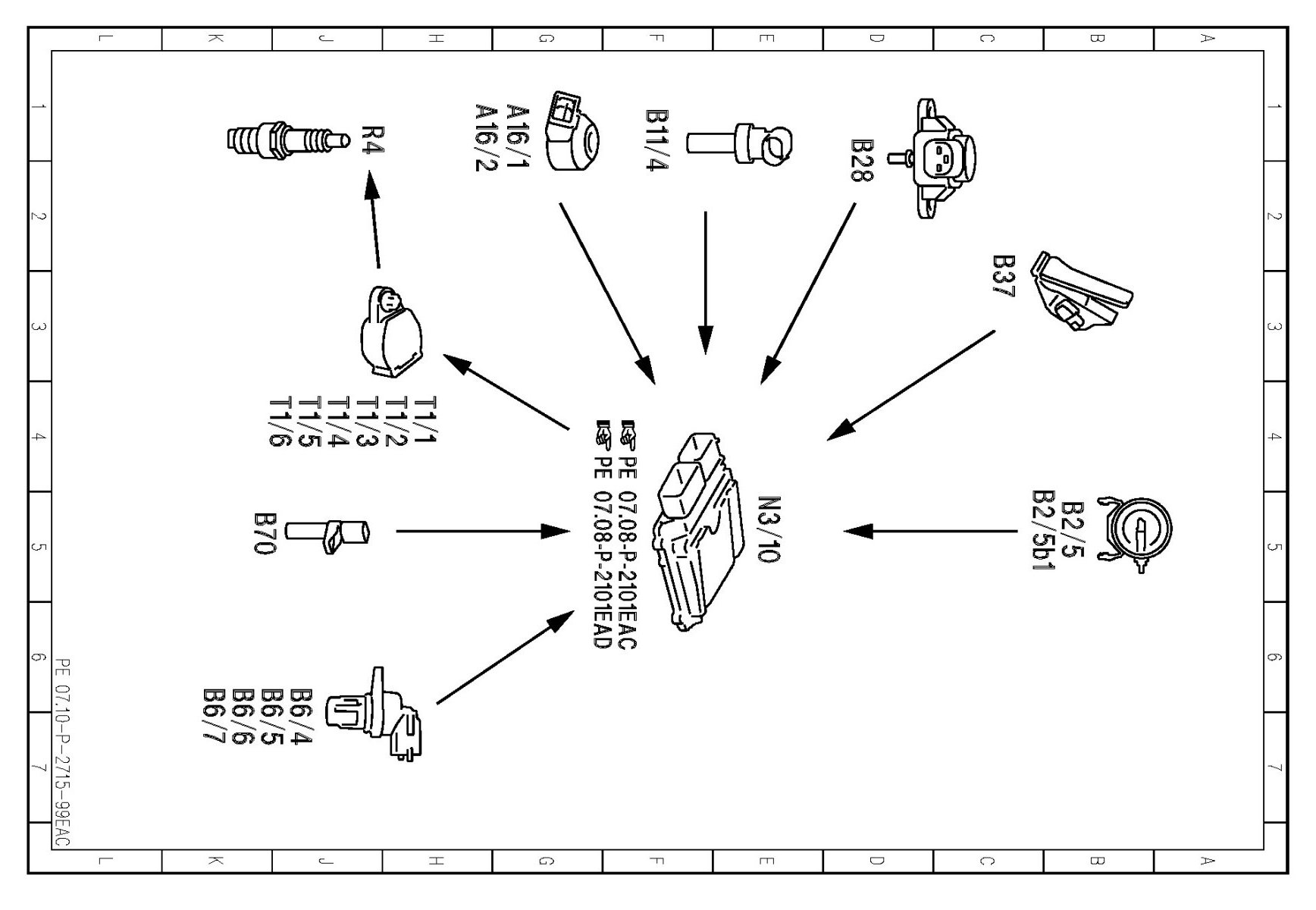

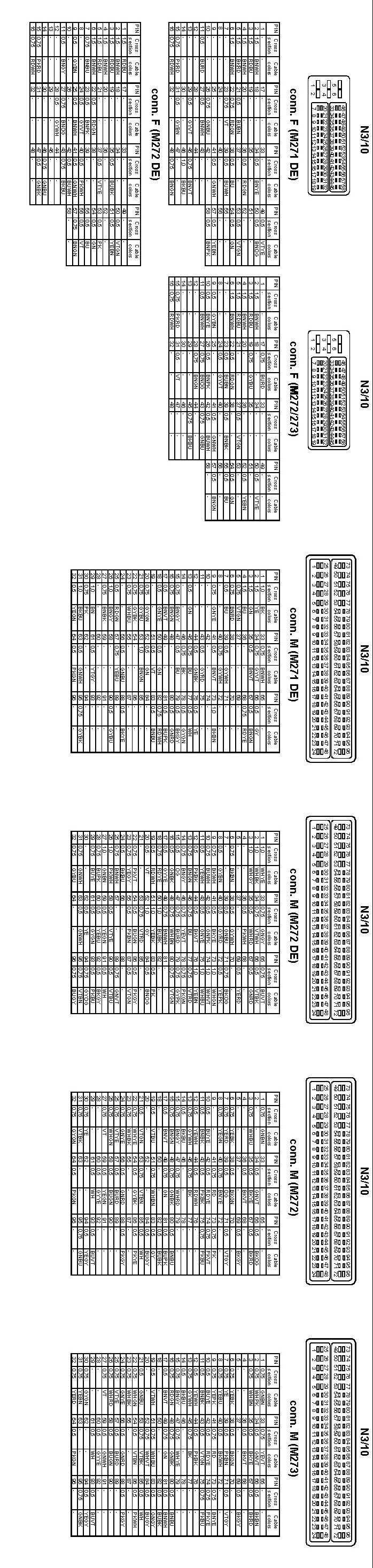

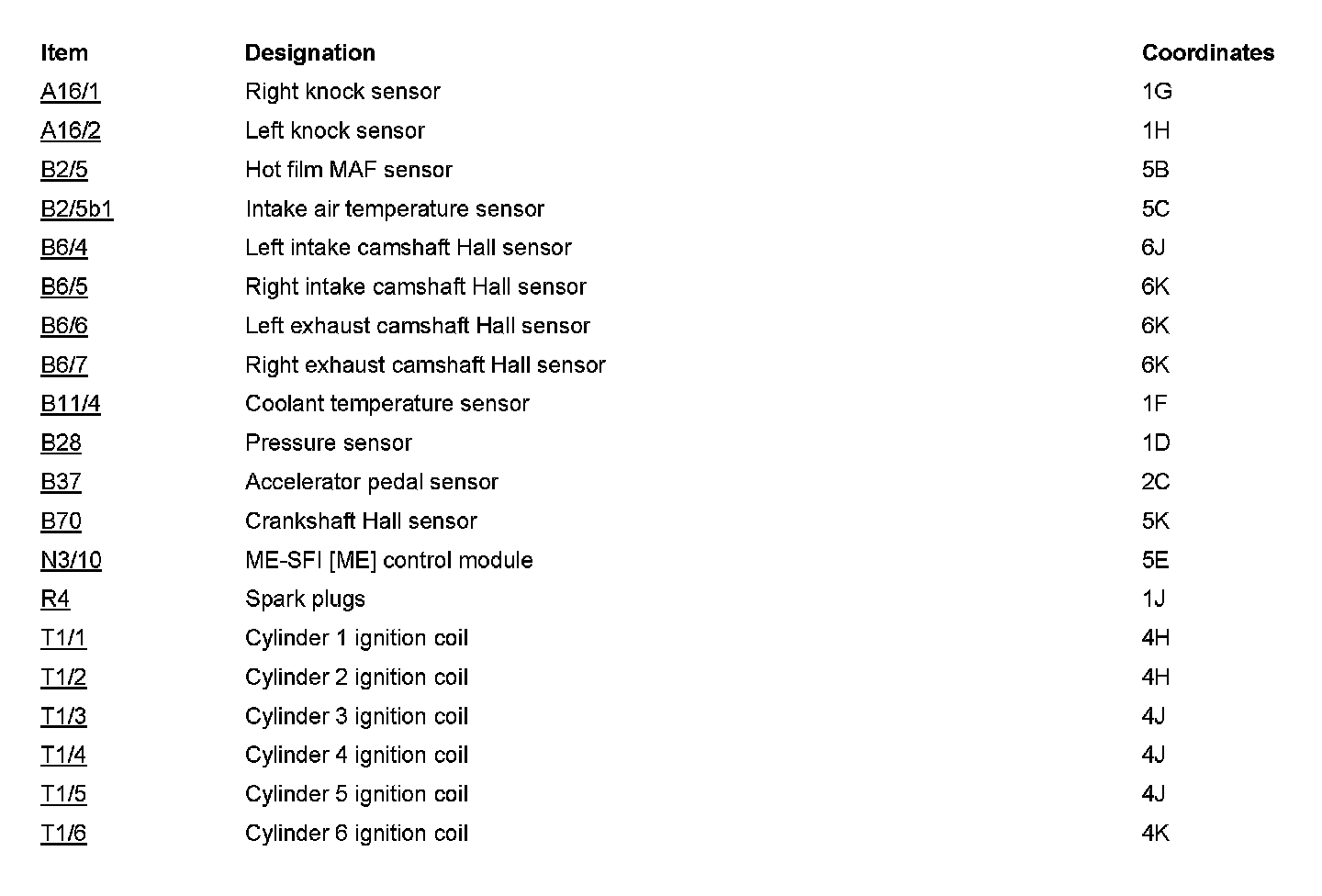

PE07.10-P-2715EAC Electrical Function Schematic For Knock Control

PE07.10-P-2715EAC Electrical Function Schematic For Knock Control

ENGINE 272.98 in MODEL 207










































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
