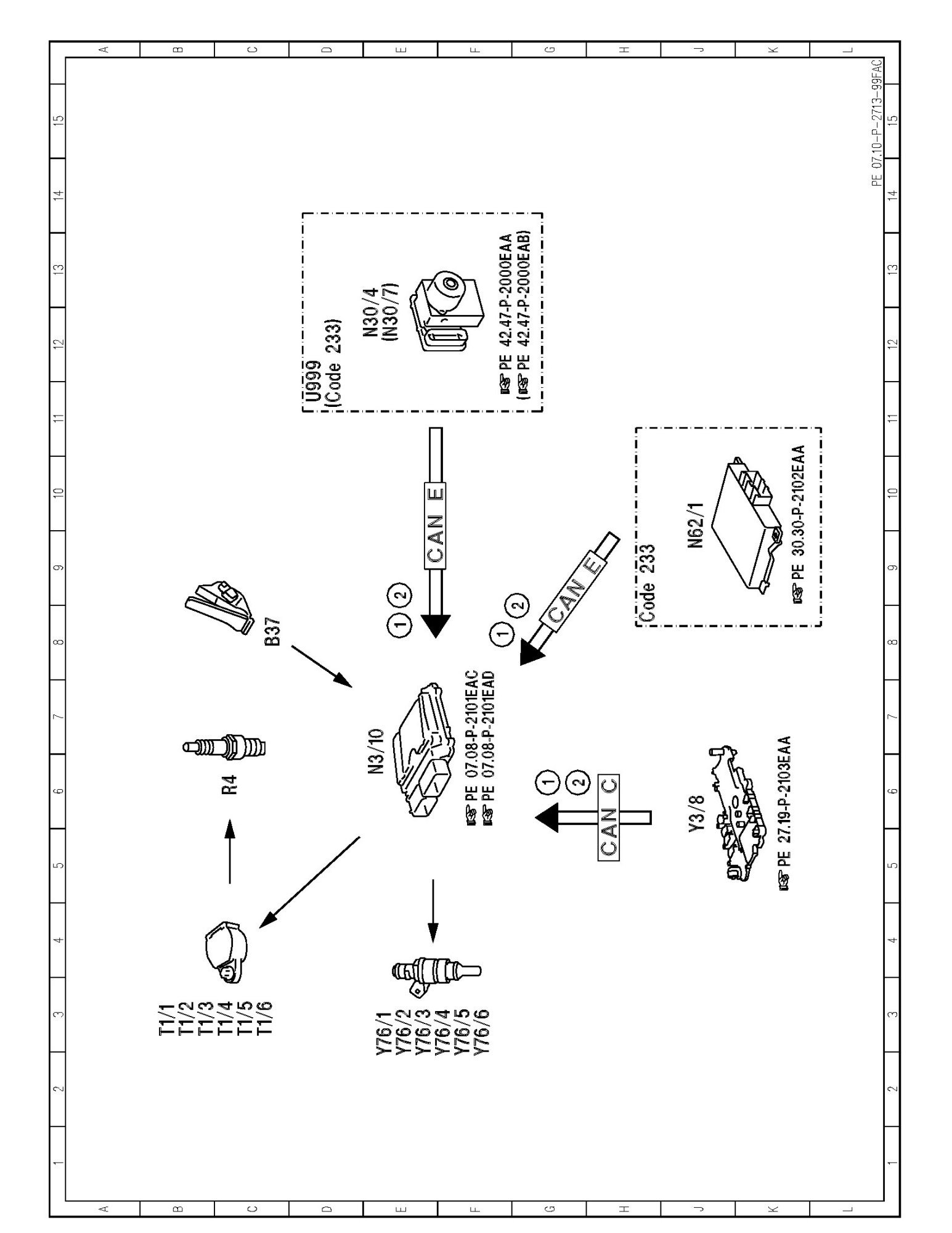

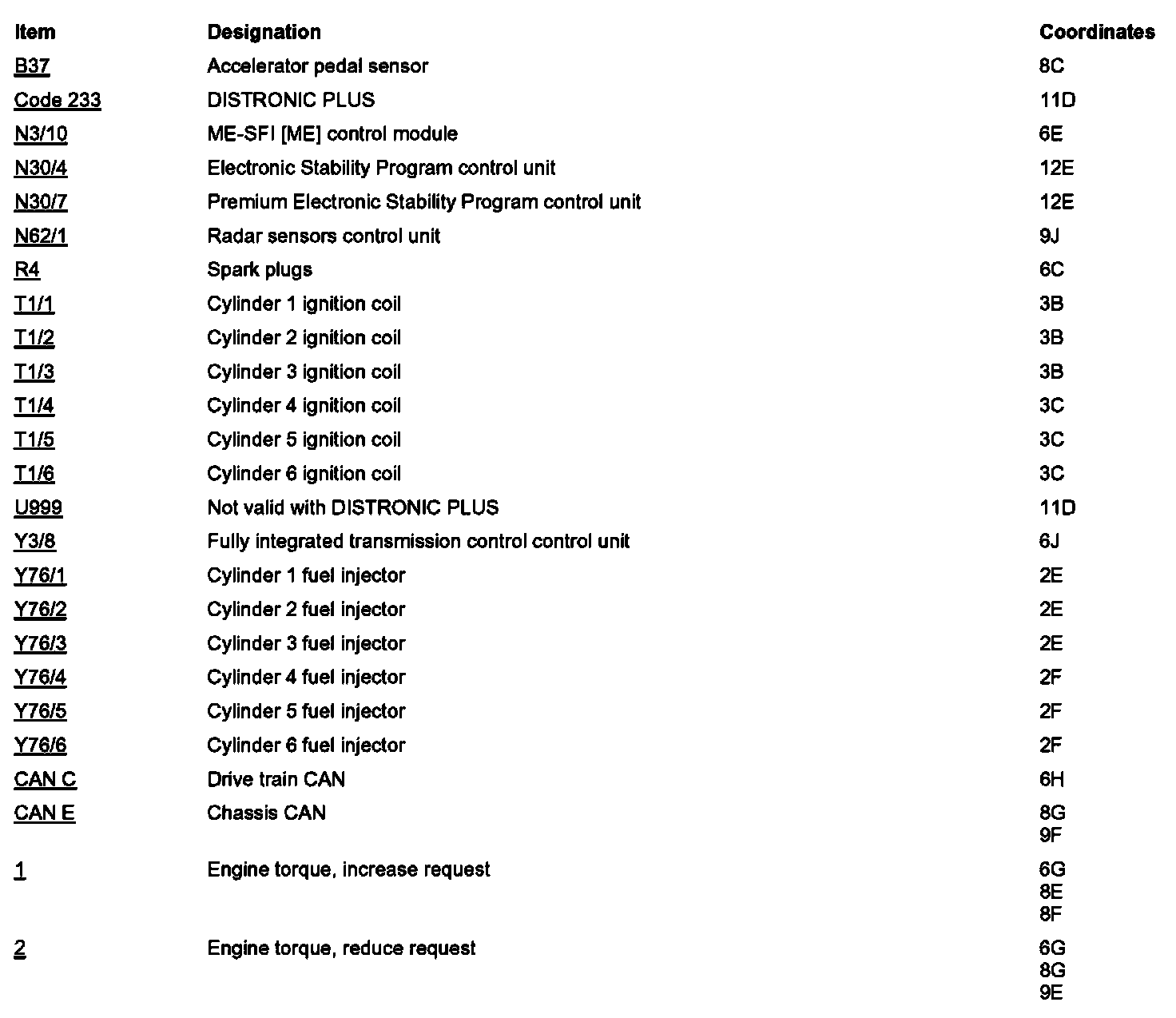

PE07.10-P-2713EAC Electrical Function Schematic For Torque Coordination

PE07.10-P-2713EAC Electrical Function Schematic For Torque Coordination











Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
