AR77.30-P-1002EC Remove/Install Soft Top

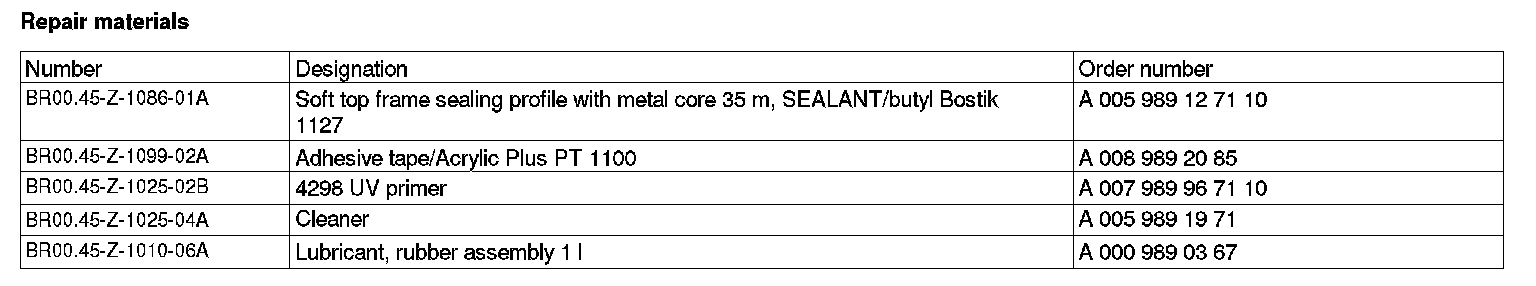

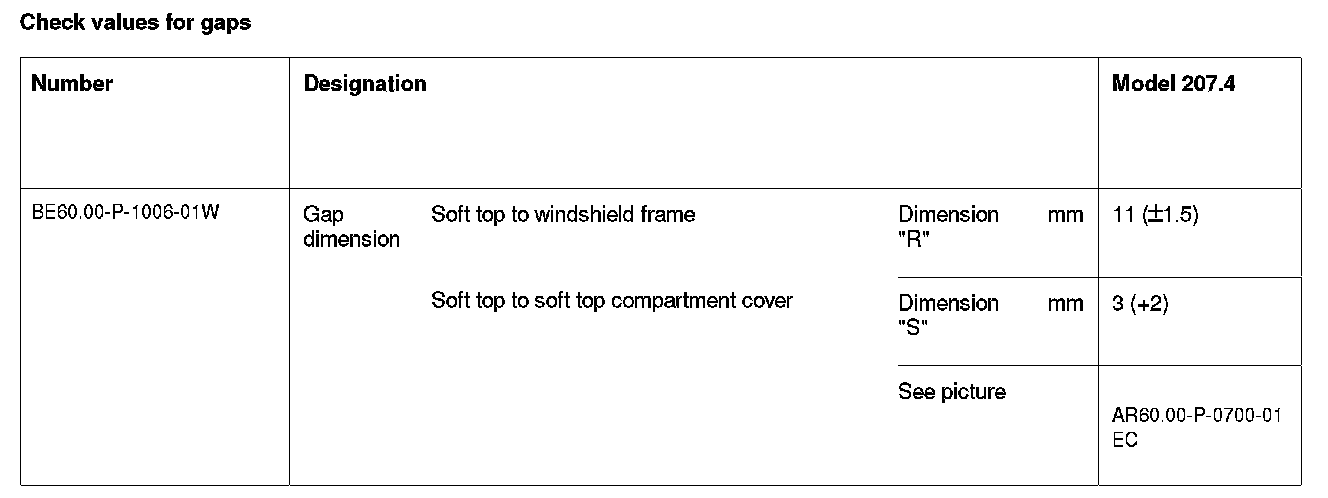

AR77.30-P-1002EC Remove/install Soft Top

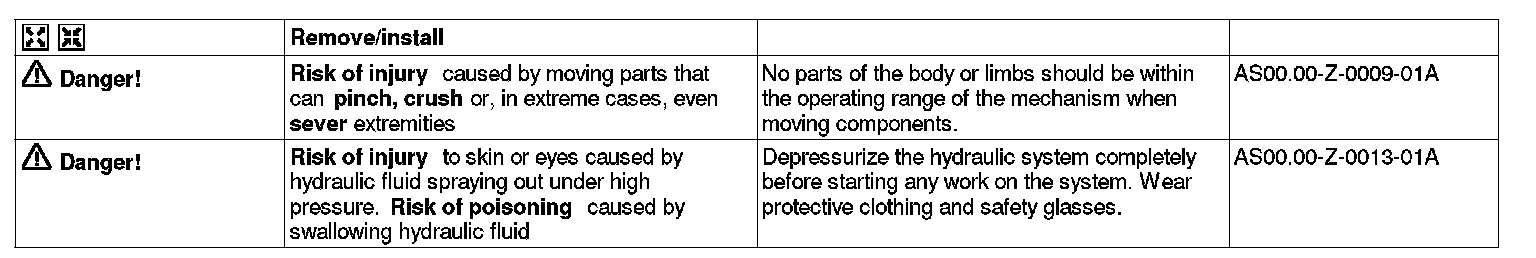

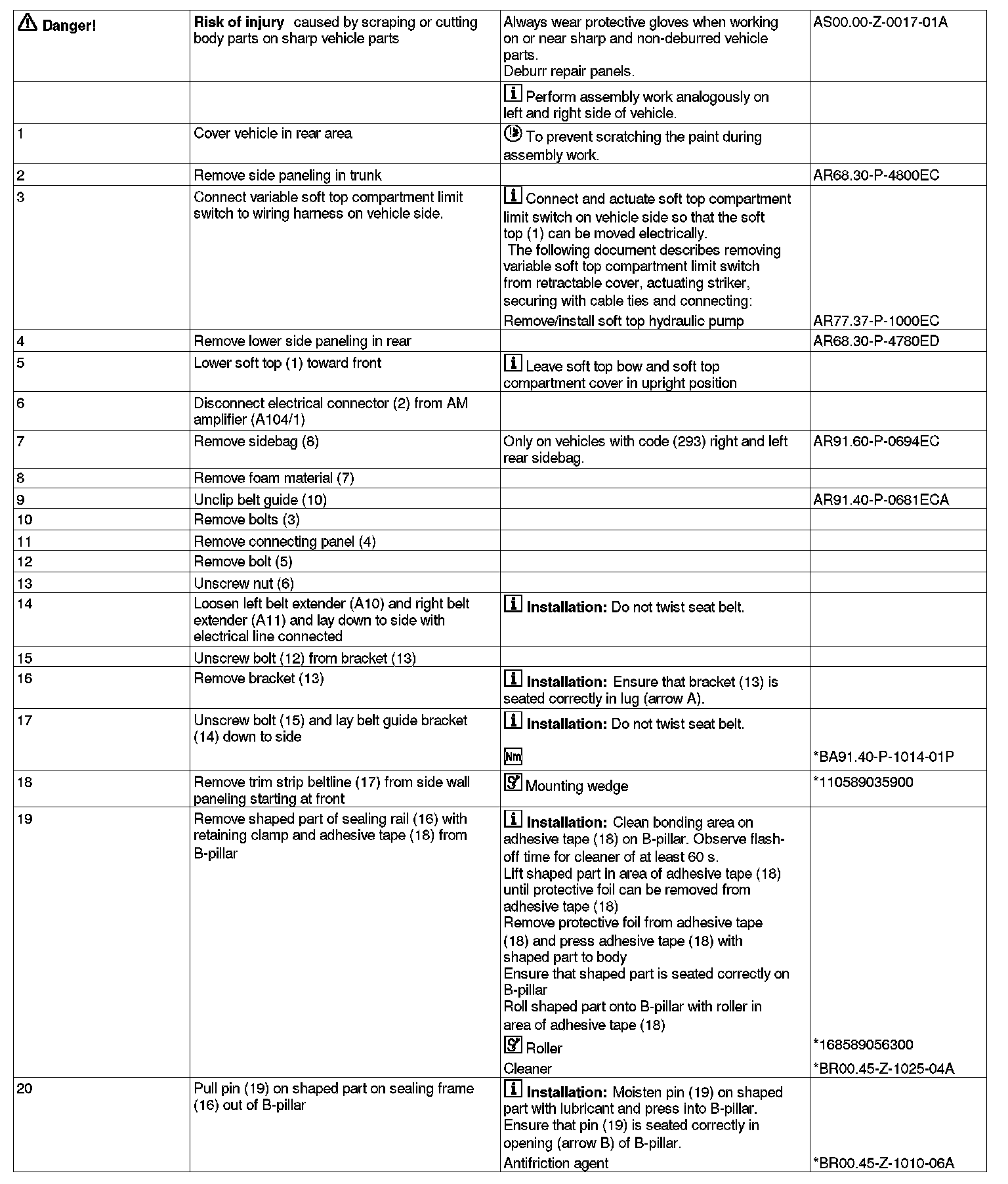

Shown on left side of vehicle

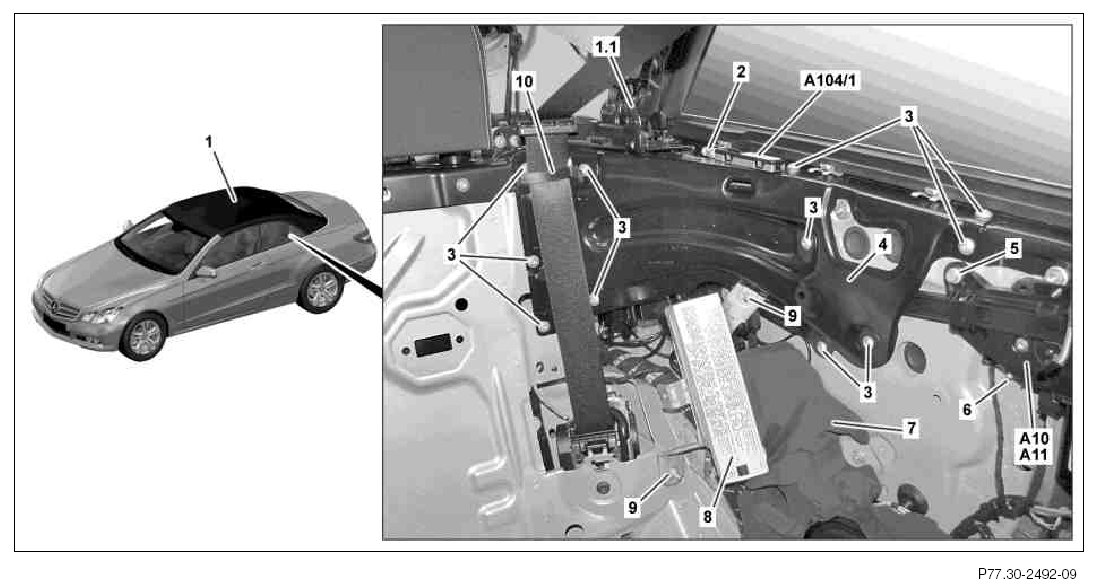

1 Soft top
1.1 Soft top frame
2 Electrical connector
3 Bolts
4 Connecting panel
5 Screw
6 Nut
7 Foam material
8 Sidebag unit
9 Nut
10 Seat belt guide
A10 Seat belt extender on left
A11 Right belt extender
A104/1 AM amplifier

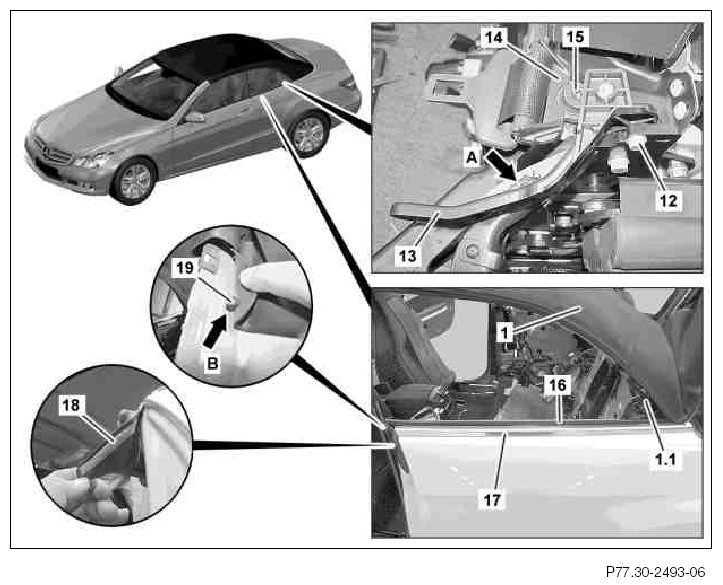

Shown on left side of vehicle

1 Soft top
1.1 Soft top frame
12 Screw
13 Bracket

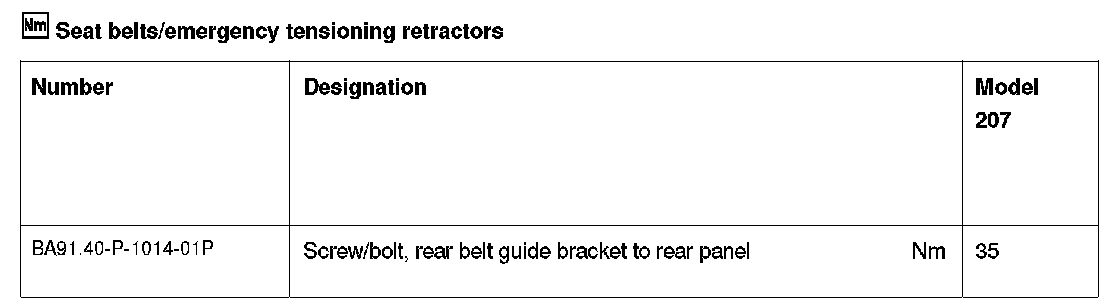

14 Seat belt guide bracket
15 Screw
16 Sealing rail
17 Waistline trim strip
18 Adhesive tape
19 Pin

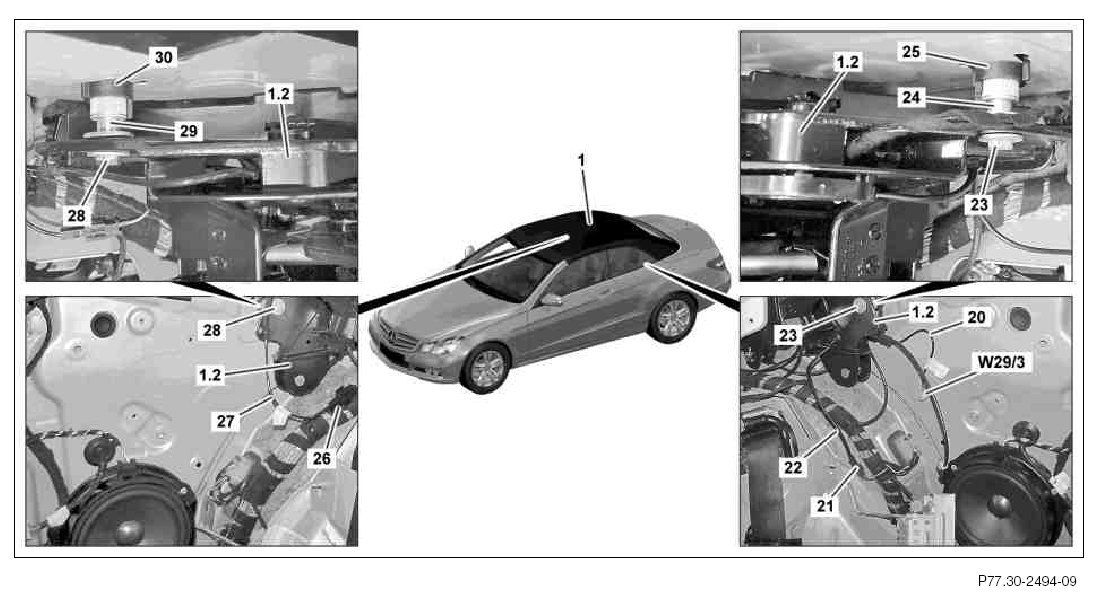

1 Soft top

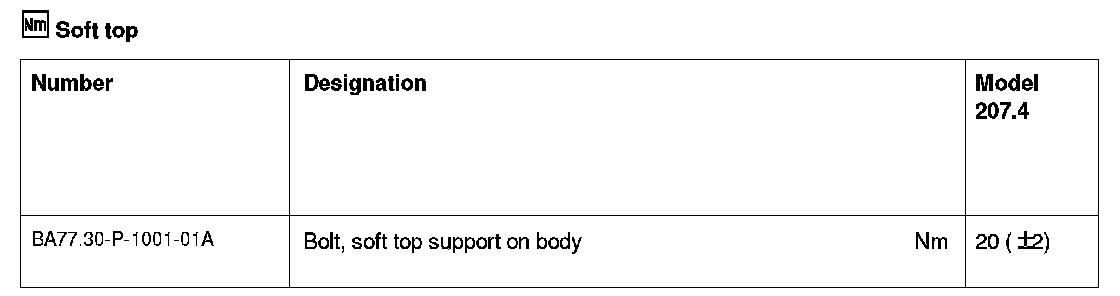

1.2 Soft top support

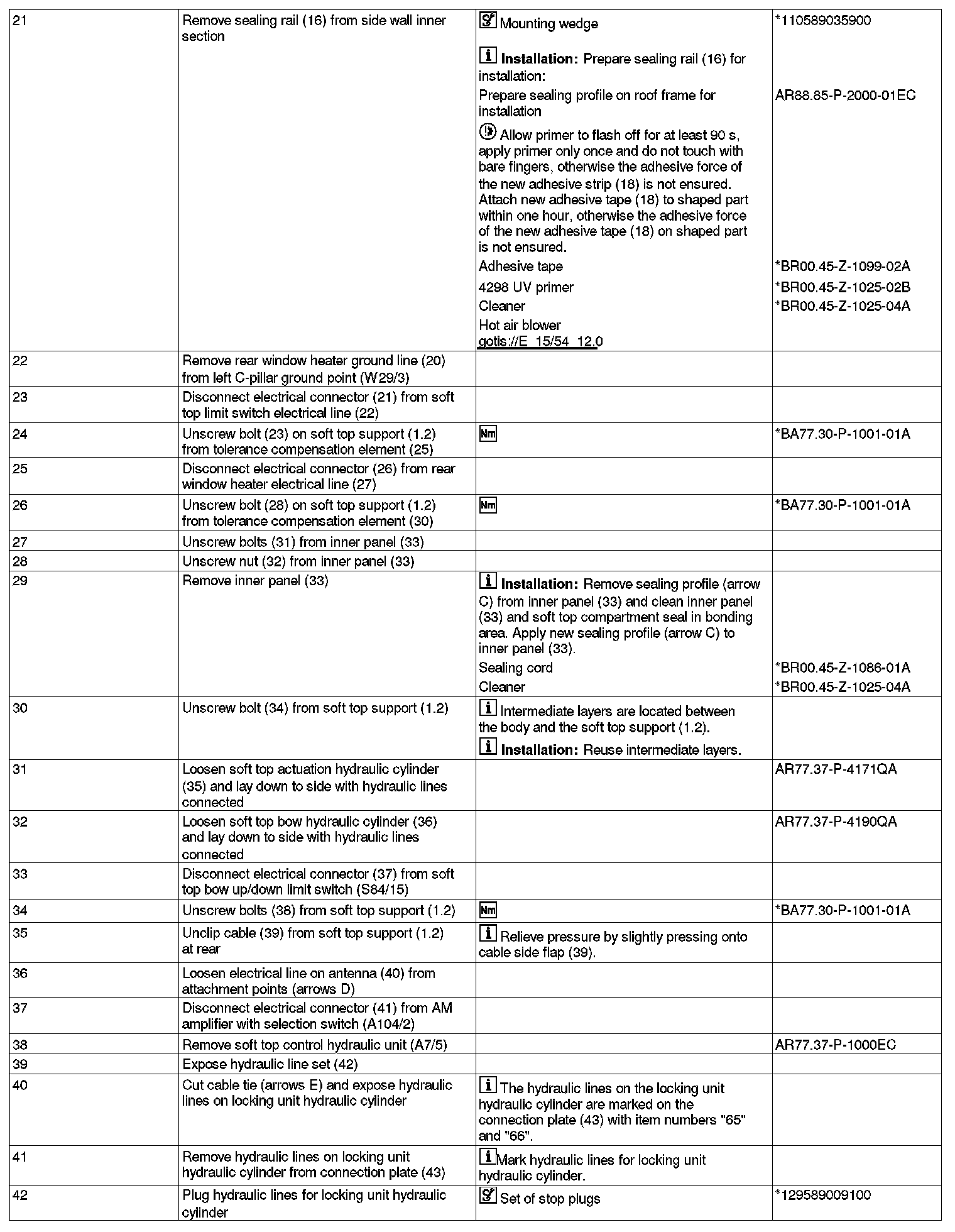

20 Rear window heater ground line
21 Electrical connector
22 Soft top limit switch electrical line
23 Screw
24 Expansion nut
25 Tolerance compensation element
26 Electrical connector
27 Rear window heater electrical line
28 Screw
29 Expansion nut
30 Tolerance compensation element
W29/3 Left C-pillar ground point

Shown on left side of vehicle

31 Screw
32 Nut
33 Inner panel

Shown on left side of vehicle

1 Soft top
1.2 Soft top support
34 Screw
35 Soft top actuation hydraulic cylinder
36 Soft top bow hydraulic cylinder
37 Electrical connector
38 Bolts
39 Cable
40 Antenna electrical line
41 Electrical connector
A104/2 AM amplifier with selection switch

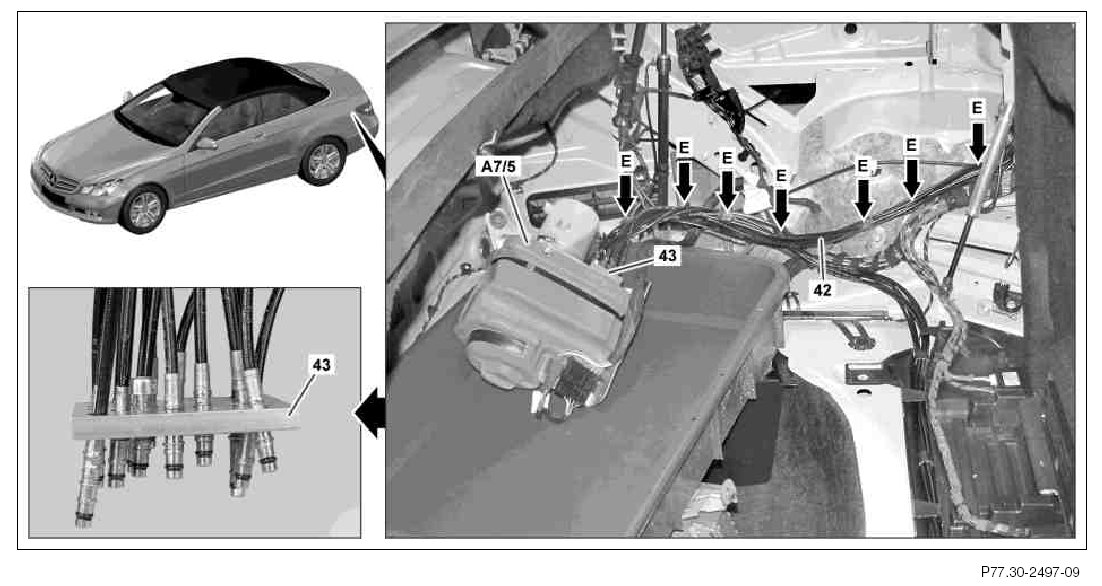

S84/15 Soft top bow "down/up" limit switch
