AR77.37-P-4204QA Check Soft Top Hydraulic Pump

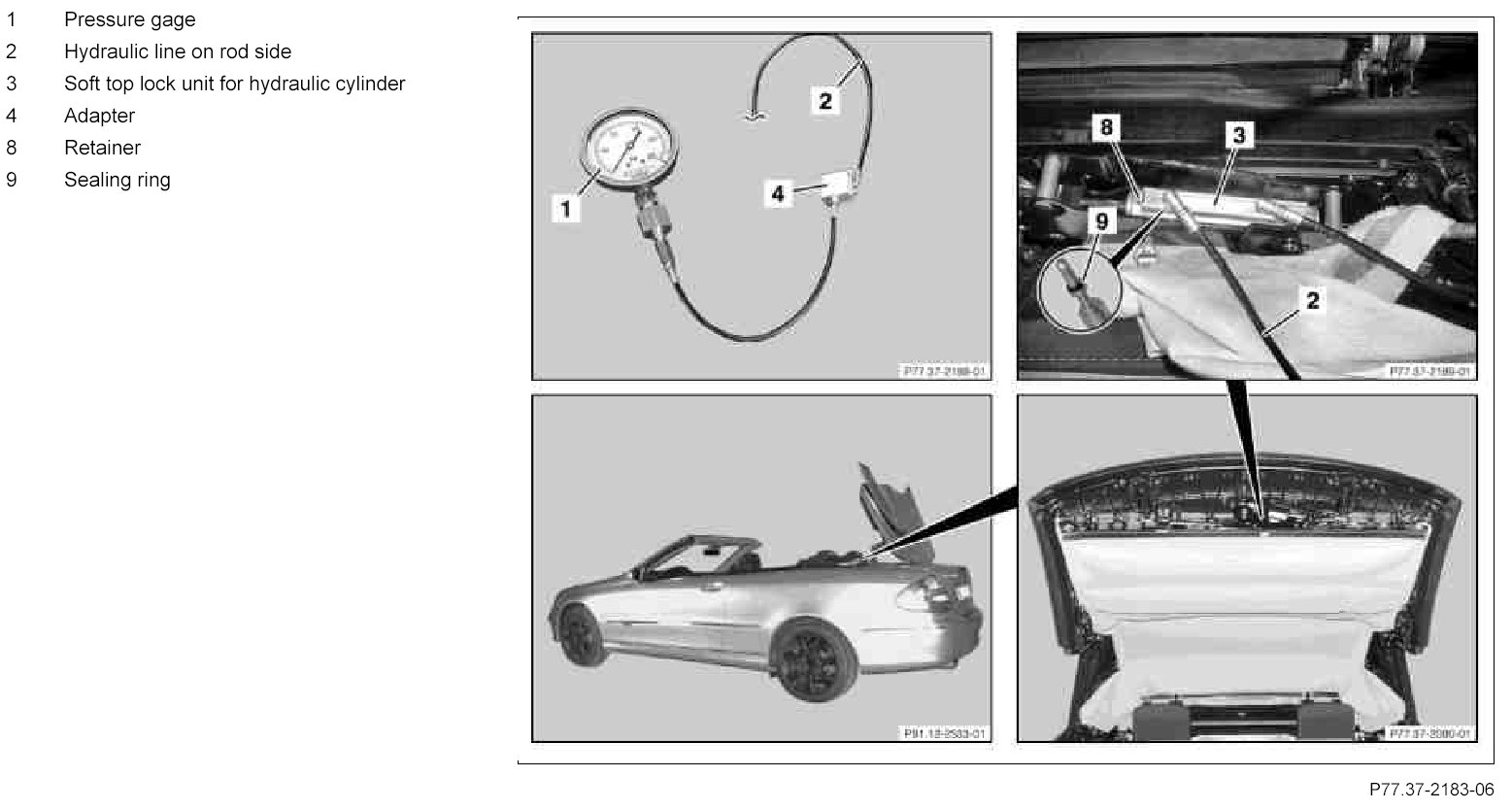

Component Identification:

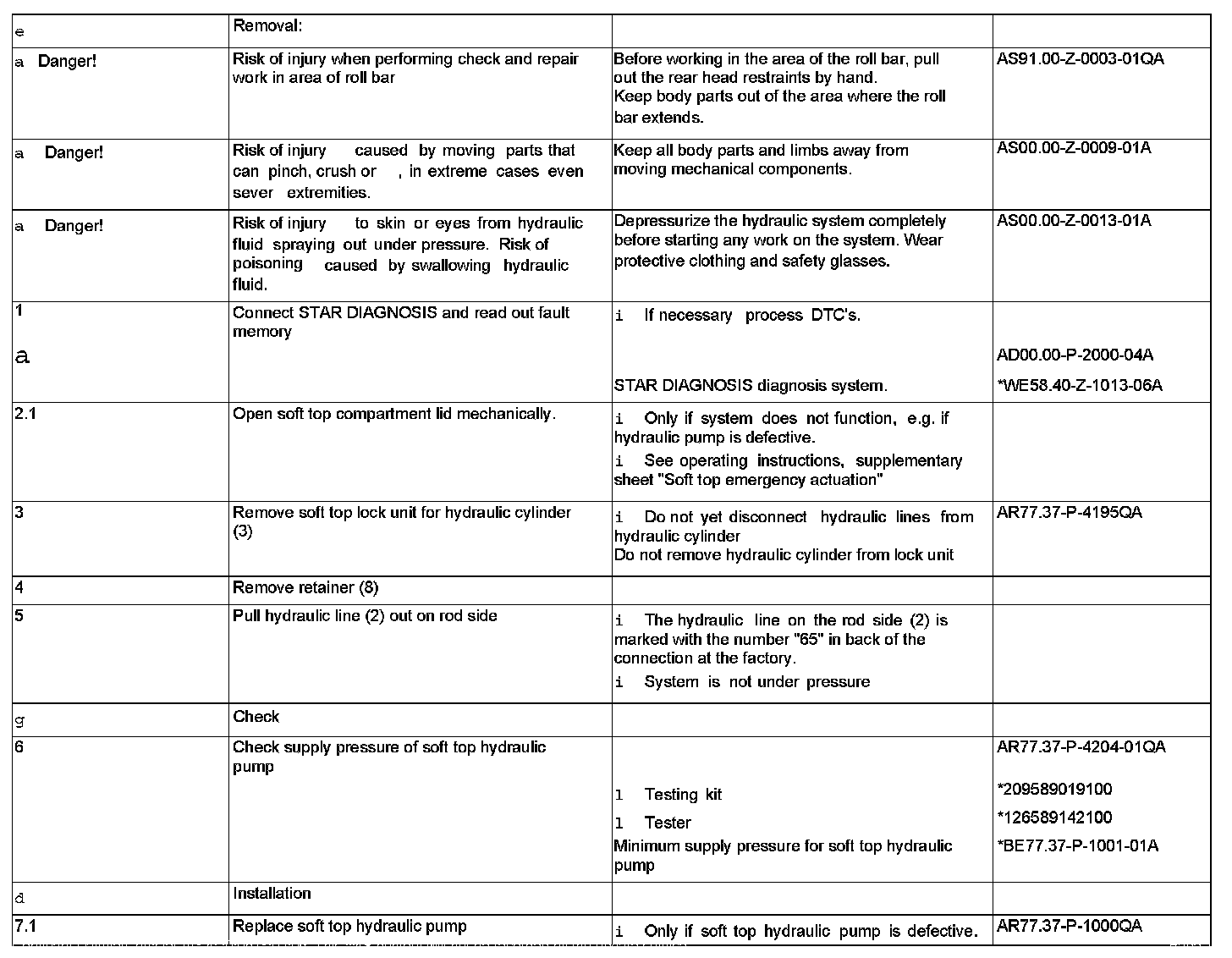

Steps 1 - 7.1:

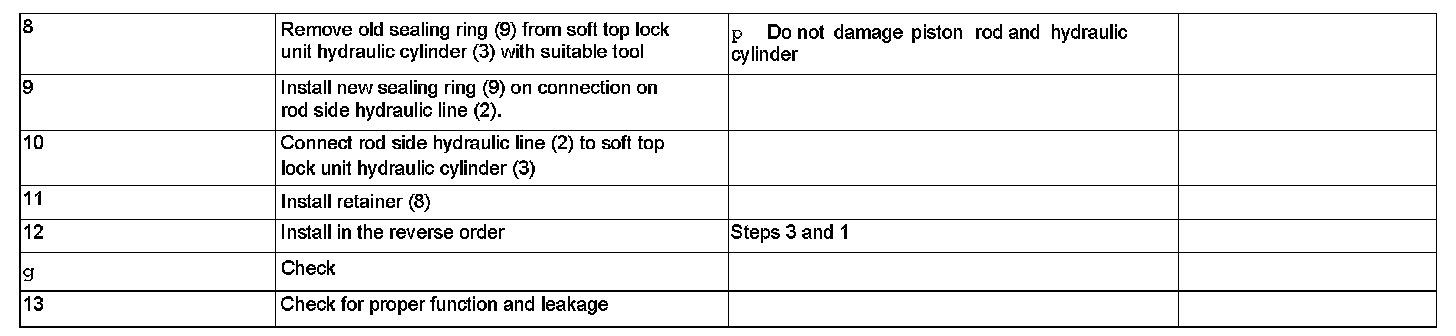

Steps 8 - 13:

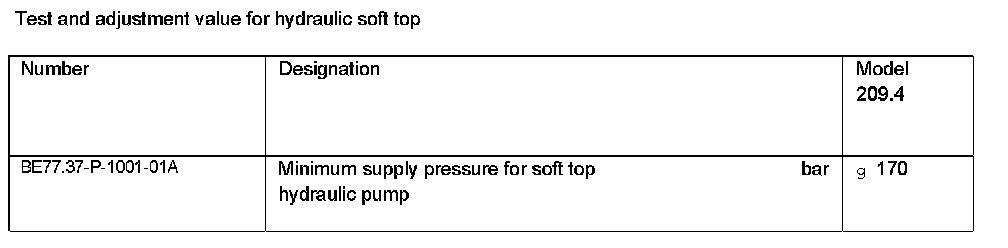

Test And Adjustment Value For hydraulic Soft Top:

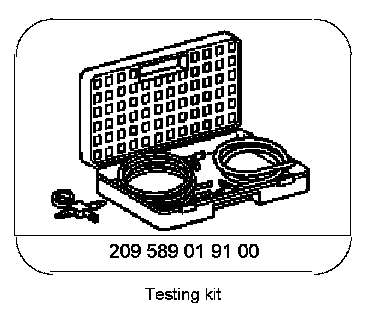

Special Tools:

Special Tools:

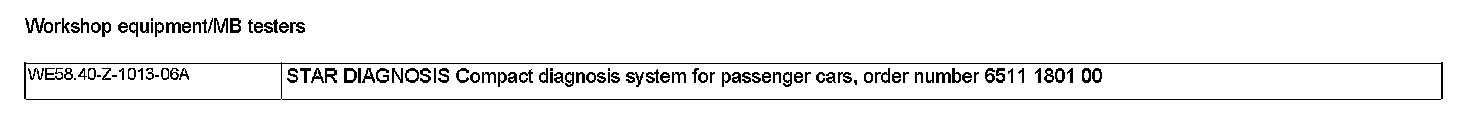

Workshop Equipment/MB Testers:
