Convertible Top Pump: Service and Repair

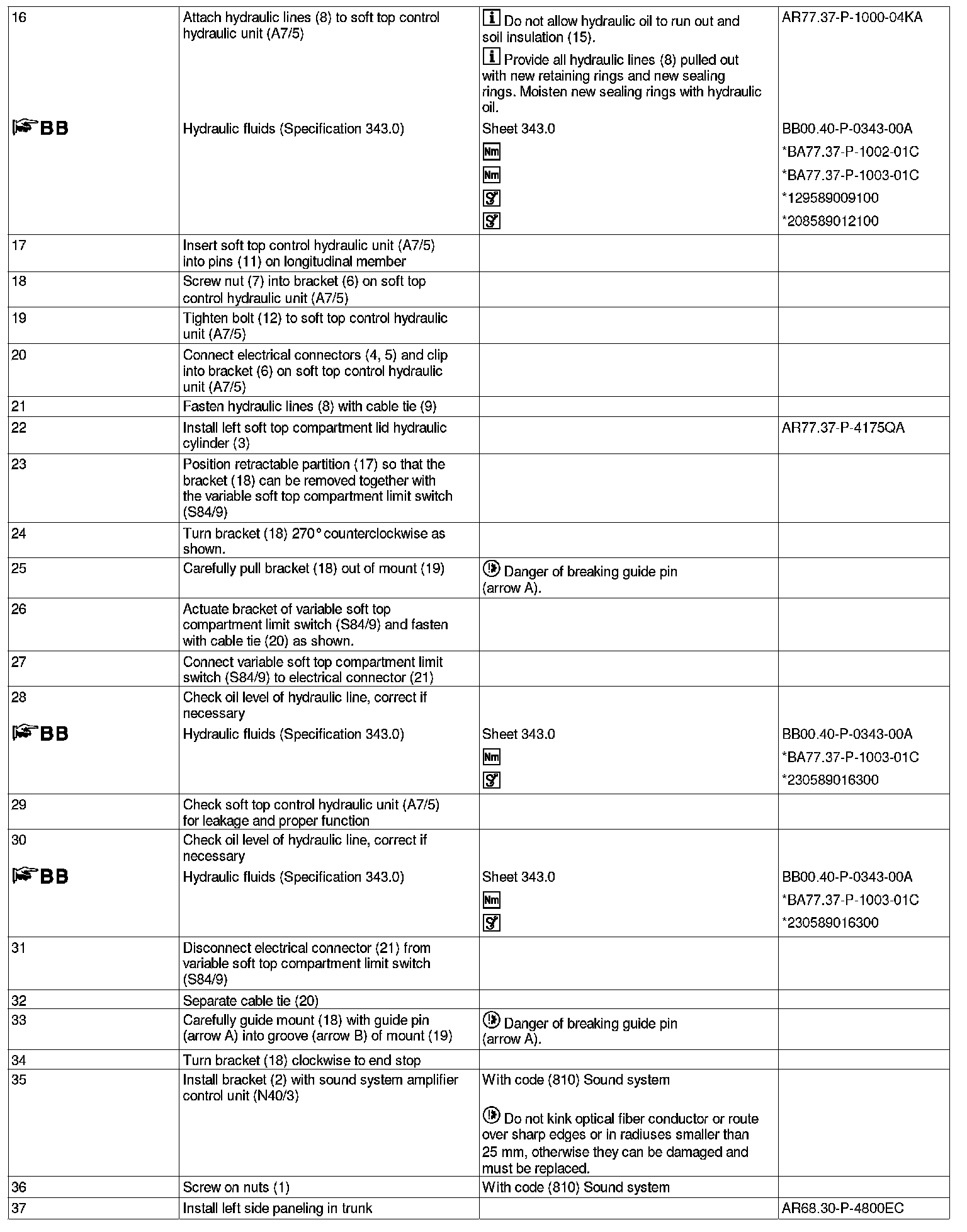

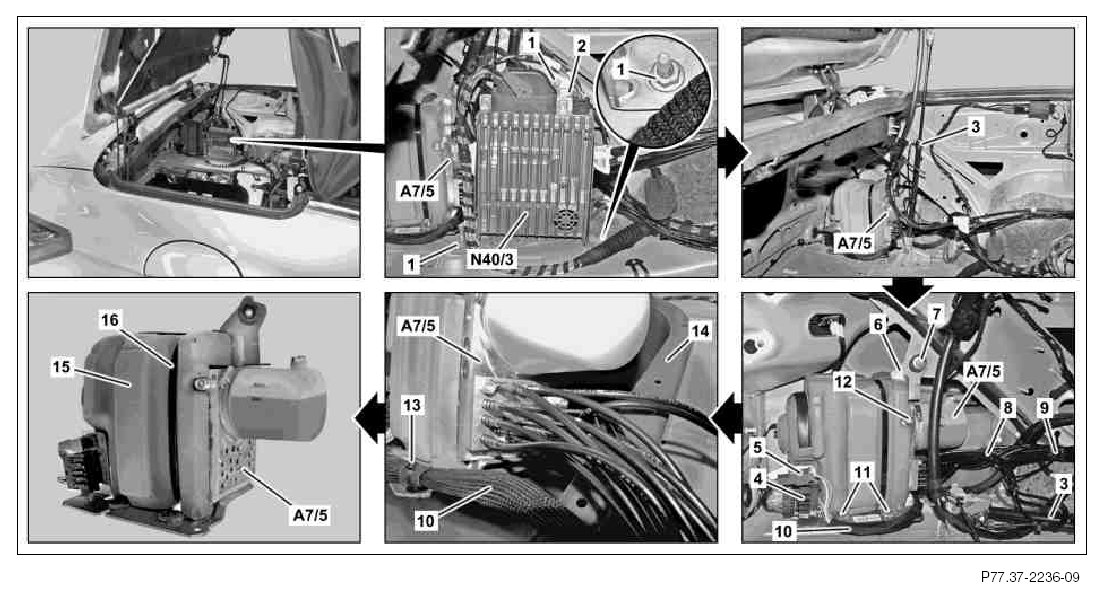

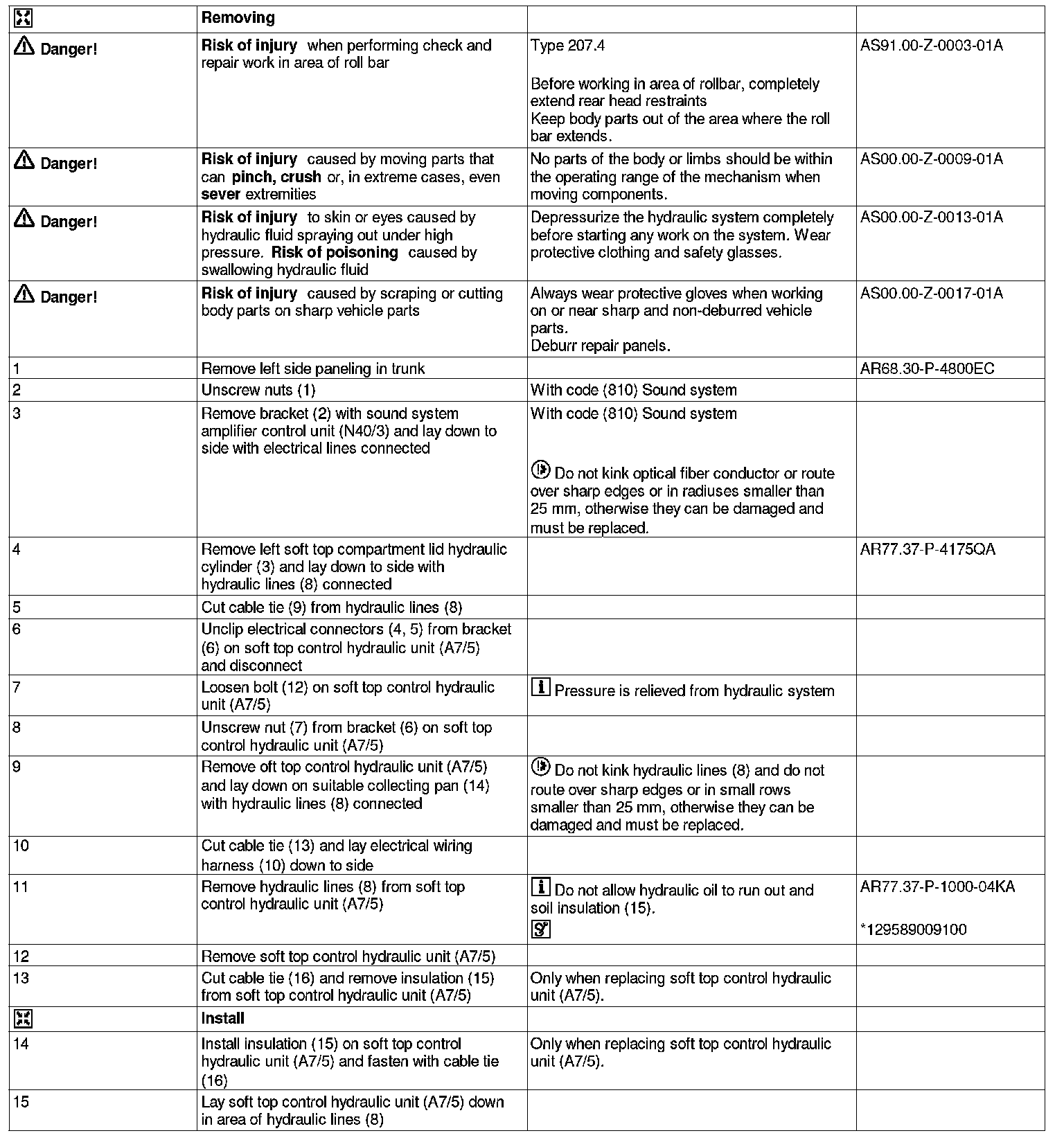

AR77.37-P-1000EC Remove/install Soft Top Hydraulic Pump








1 Nut (with code (810) Sound system)
2 Bracket (with code (810) Sound system)
3 Soft top compartment cover hydraulic cylinder
4 Electrical connector
5 Electrical connector
6 Bracket
7 Nut
8 Hydraulic lines
9 Cable tie
10 Wiring harness
11 Pin
12 Screw
13 Cable tie
14 Drip tray
15 Damping material
16 Cable tie
A7/5 Soft top control hydraulic unit
N40/3 Sound system amplifier control unit (with code (810) Sound system)








17 Retractable partition
18 Bracket
19 Support
20 Cable tie
21 Electrical connector
A7/5 Soft top control hydraulic unit
S84/9 Variable soft top compartment limit switch













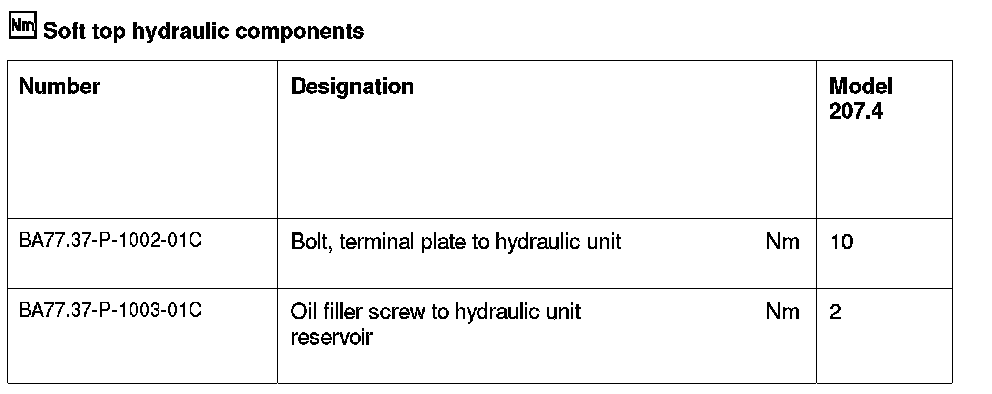

129 589 00 91 00,Set of stop plugs

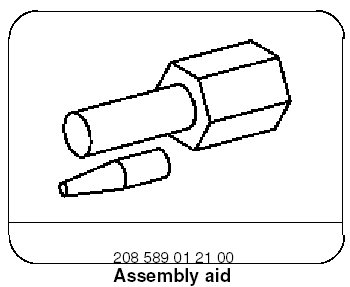

208 589 01 21 00, Assembly aid

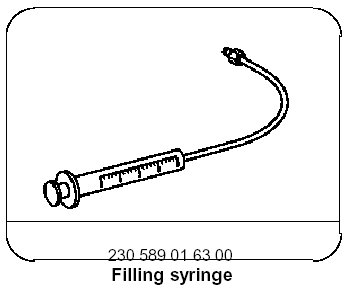

230 589 01 63 00, Filler syringe
