AR77.37-P-4203QA Check Soft Top Actuation Hydraulic Cylinder
AR77.37-P-4203QA Check Soft Top Actuation Hydraulic Cylinder
AR77.37-P-4203QA Check Soft Top Actuation Hydraulic Cylinder

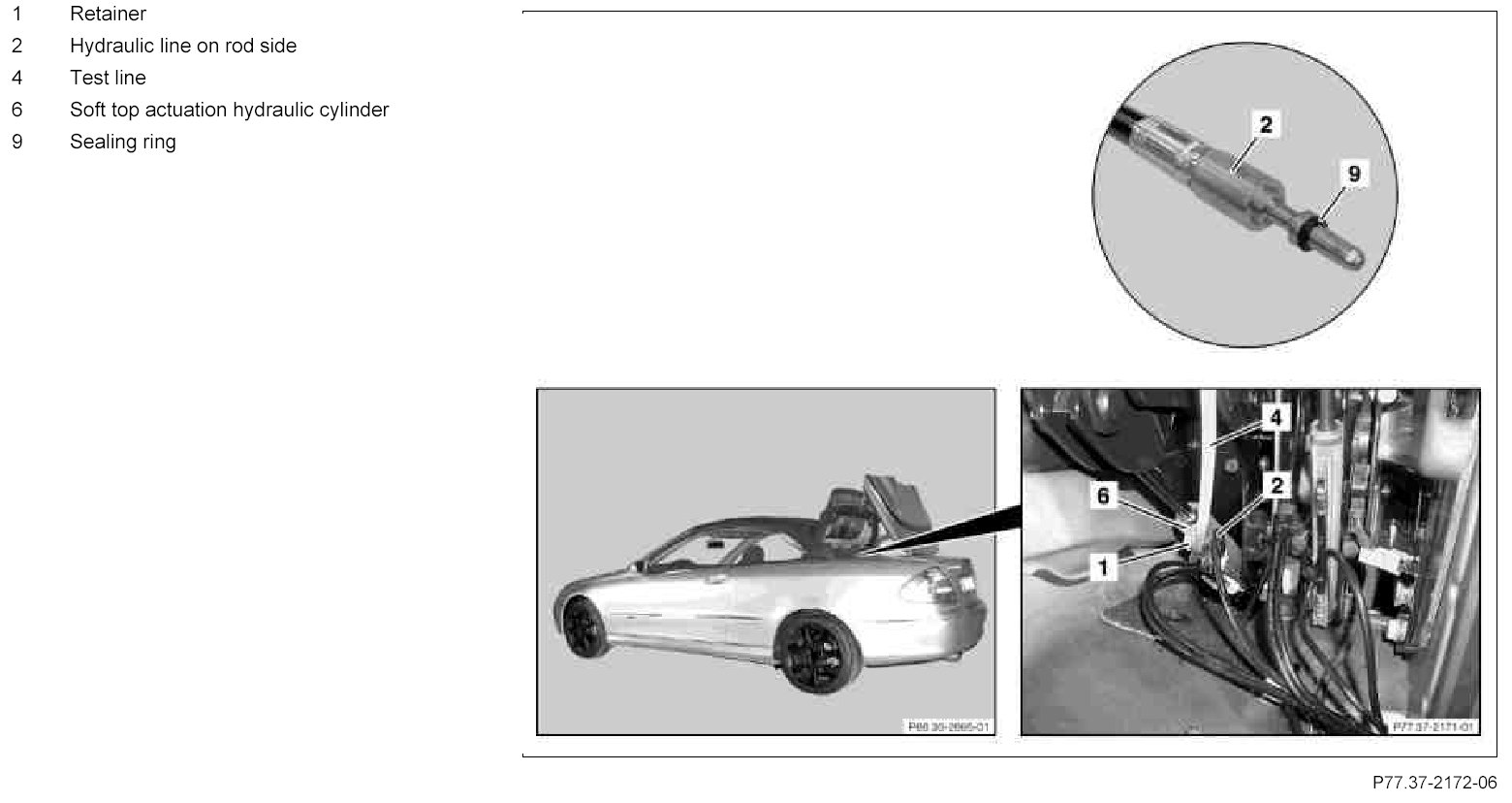

Component Identification:

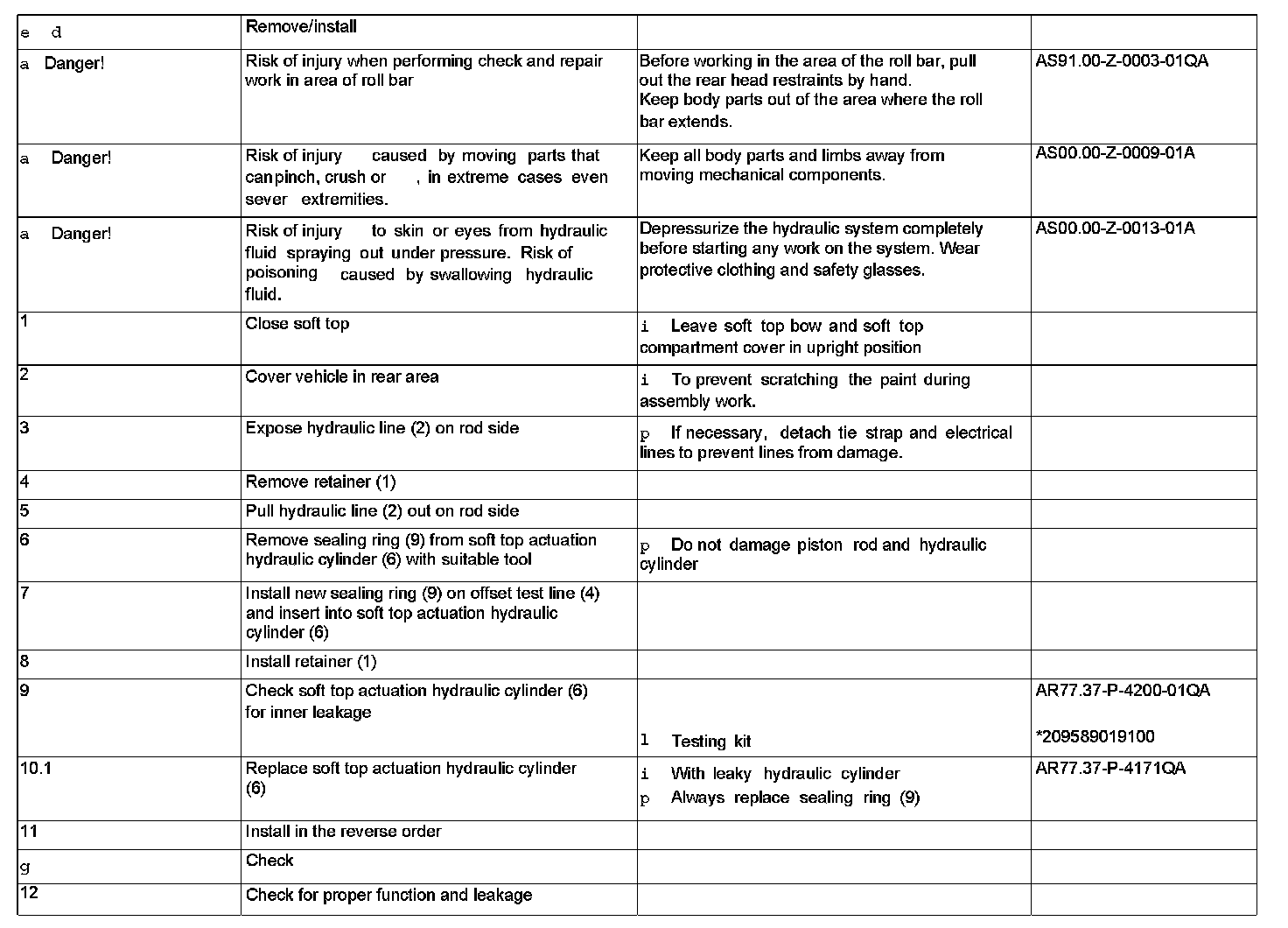

Steps 1 - 12:

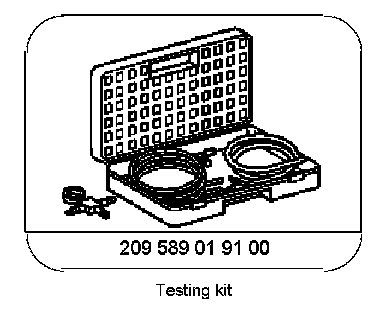

Special Tools:
