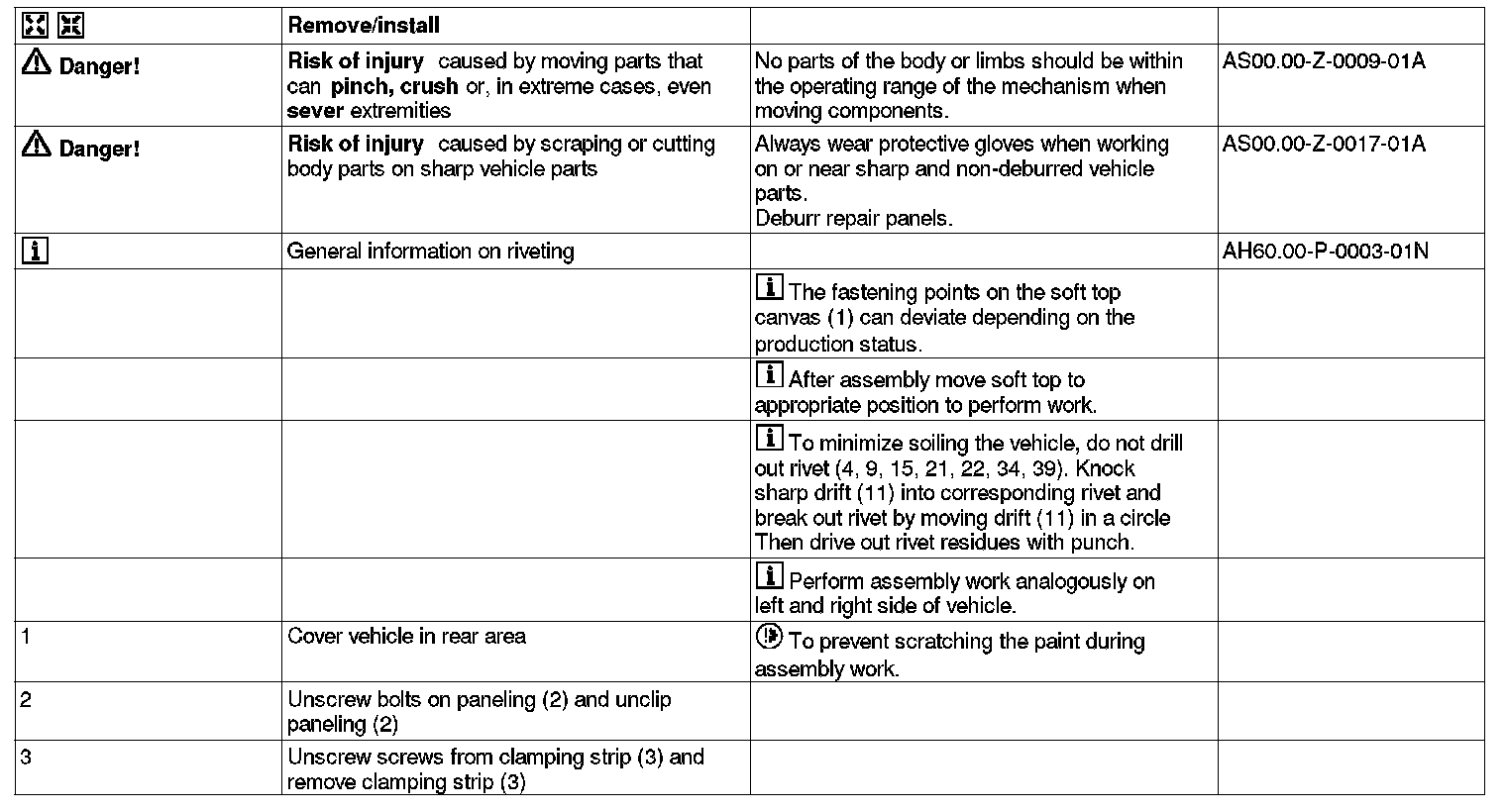

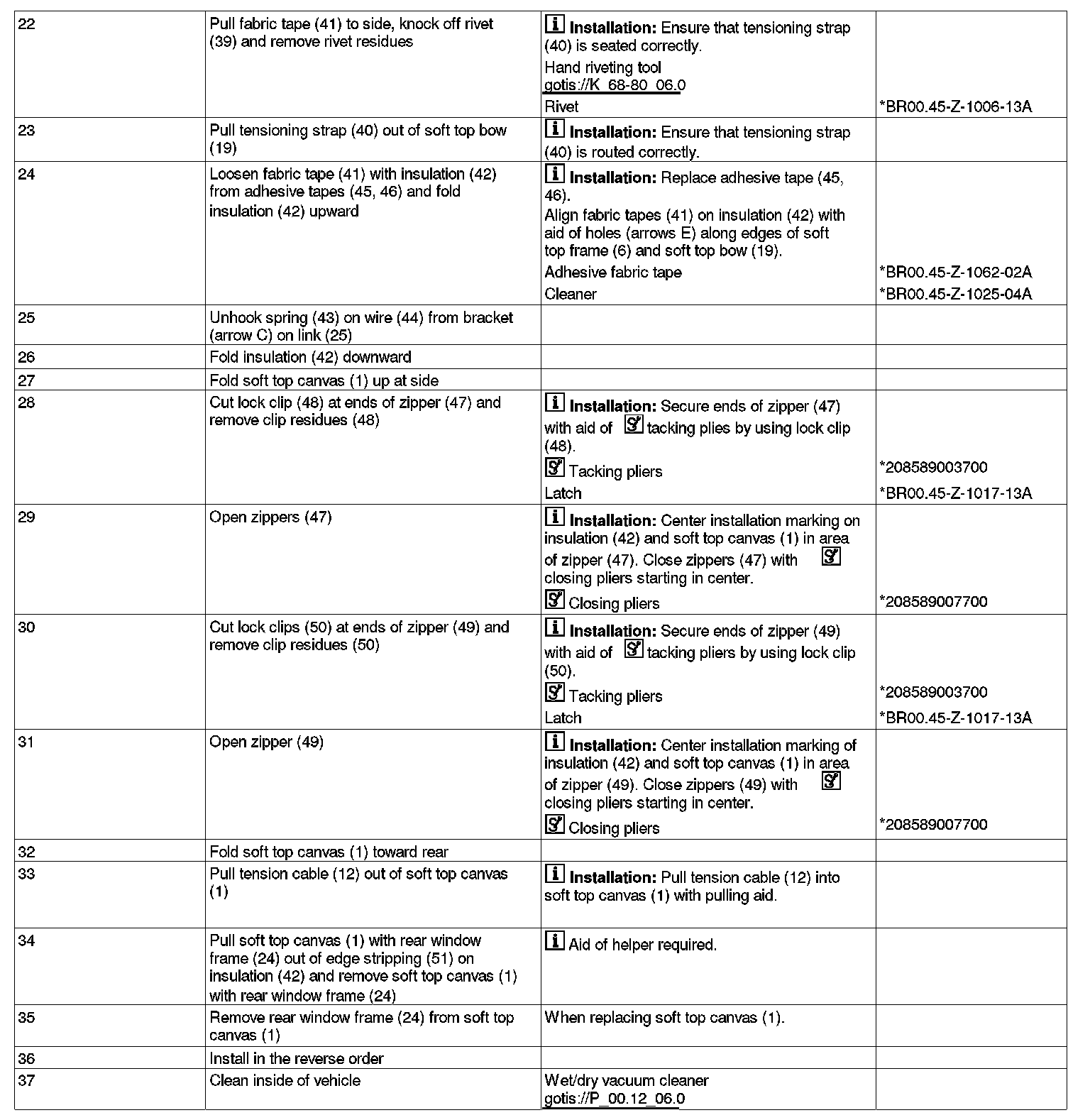

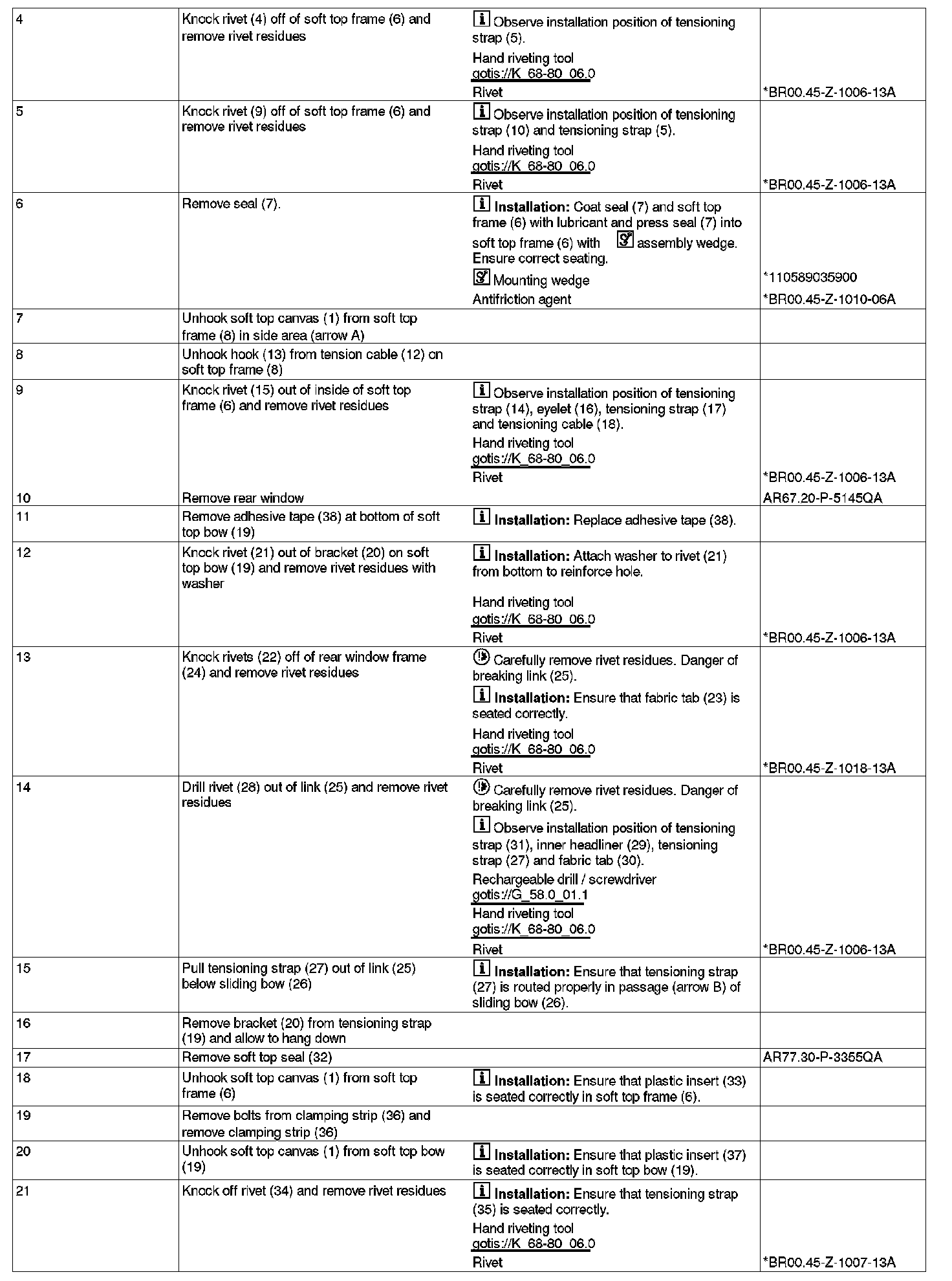

AR77.31-P-1001EC Remove/Install Soft Top Canvas

AR77.31-P-1001EC Remove/install Soft Top Canvas

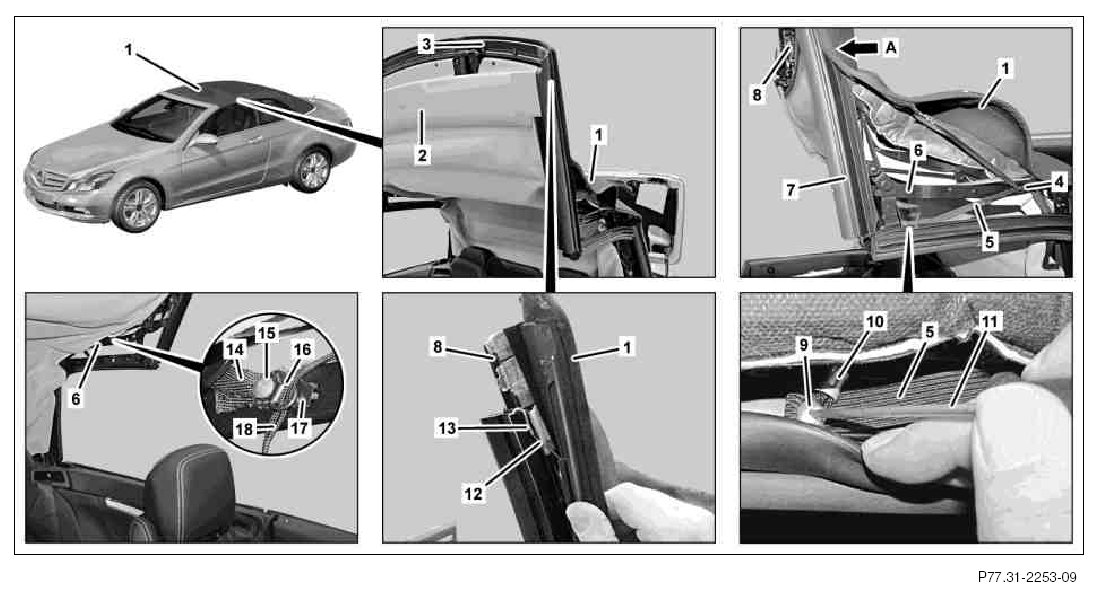

Shown on left side of vehicle







1 Soft top canvas
2 Trim
3 Terminal strip
4 Rivet
5 Tensioning strap
6 Soft top frame
7 Sealing
8 Soft top frame
9 Rivet
10 Tension cable
11 Drift
12 Tension cable
13 Hook
14 Tensioning strap
15 Rivet
16 Eye
17 Tensioning strap
18 Tension cable

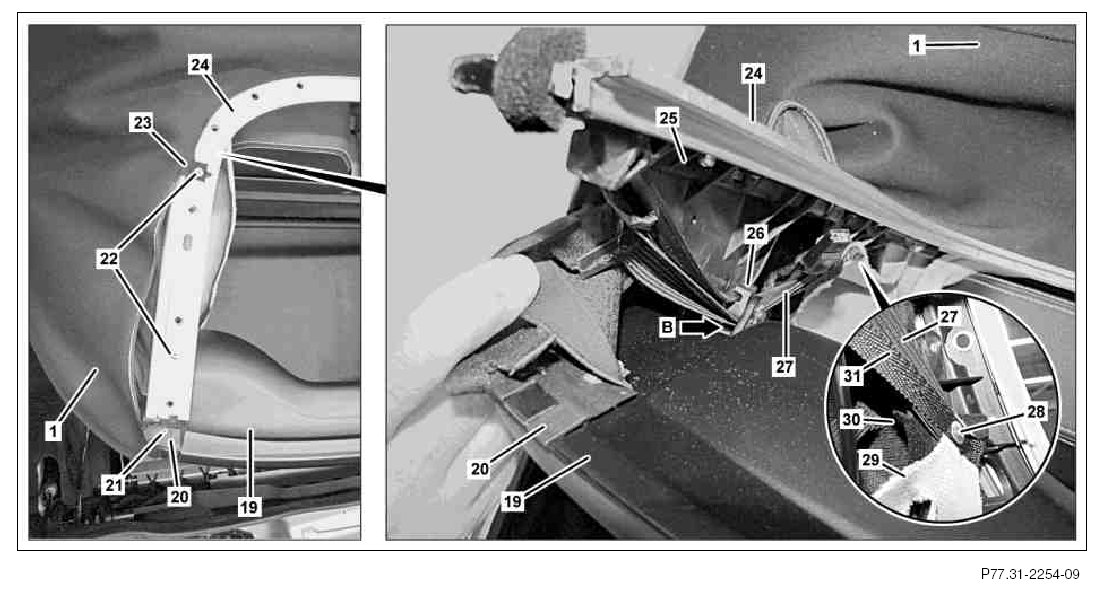

Shown on left side of vehicle







1 Soft top canvas
19 Soft top bow
20 Bracket
21 Rivet
22 Rivets
23 Fabric tab
24 Rear window frame
25 Shift gate
26 Sliding bow
27 Tensioning strap
28 Rivet
29 Inner headliner
30 Fabric tab
31 Tensioning strap

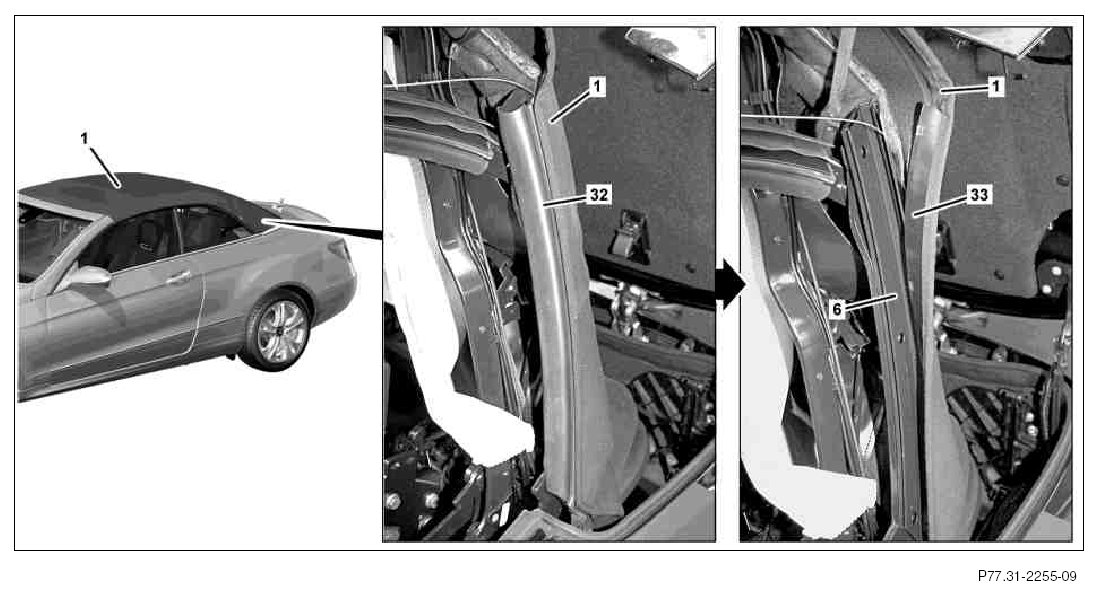

Shown on left side of vehicle







1 Soft top canvas
6 Soft top frame
32 Soft top sealing
33 Plastic insert

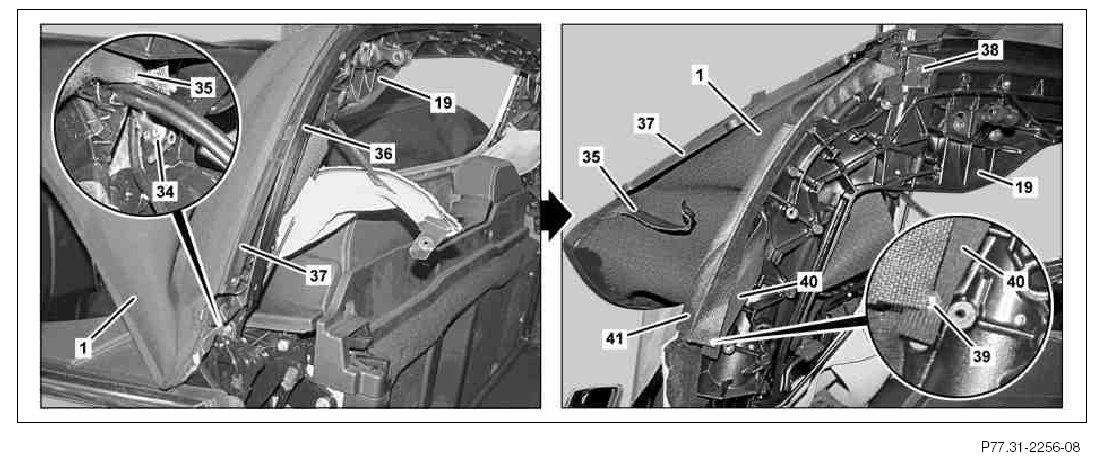

Shown on left side of vehicle







1 Soft top canvas
19 Soft top bow
34 Rivet
35 Tensioning strap
36 Terminal strip
37 Plastic insert
38 Adhesive tape
39 Rivet
40 Tensioning strap
41 Fabric tape

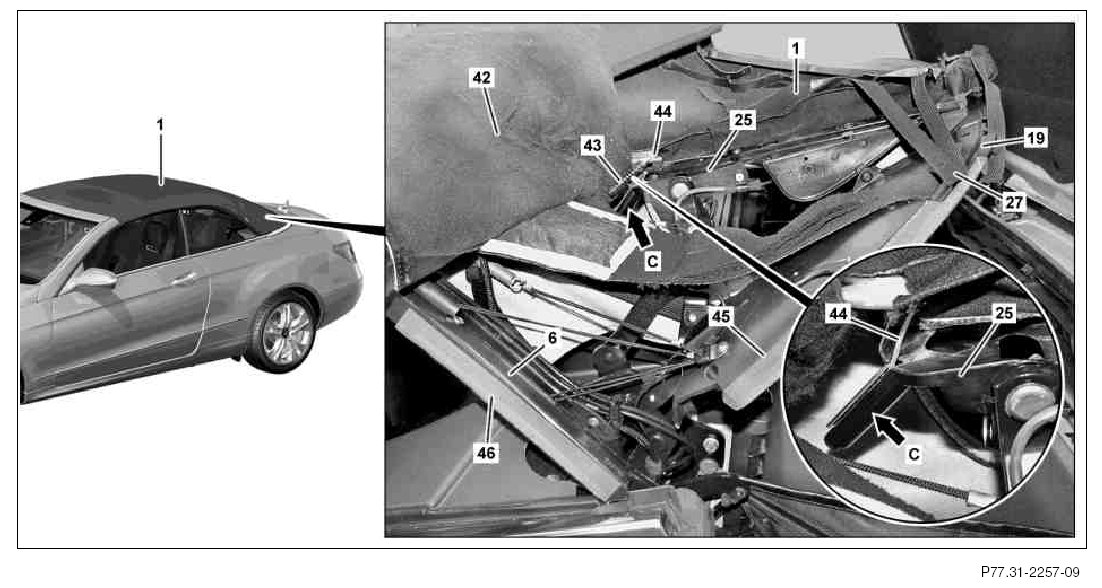

Shown on left side of vehicle







1 Soft top canvas
6 Soft top frame
19 Soft top bow
25 Shift gate
27 Tensioning strap
42 Insulation
43 Spring
44 Cable
45 Adhesive tape
46 Adhesive tape

Illustrated on left side of vehicle







1 Soft top canvas
42 Insulation
47 Zipper
48 Lock clip
49 Zipper
50 Lock clips
51 Weather strip

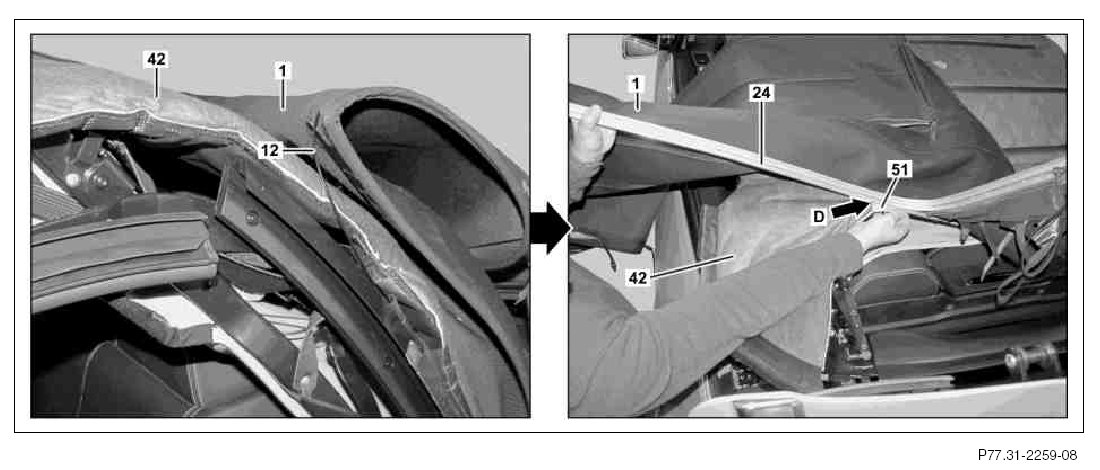

Shown on left side of vehicle







1 Soft top canvas
12 Tension cable
24 Rear window frame
42 Insulation
51 Weather strip

Shown on left side of vehicle







6 Soft top frame
19 Soft top bow
41 Fabric tape
42 Insulation













110 589 03 59 00, Mounting wedge







208 589 00 37 00, Tacking pliers

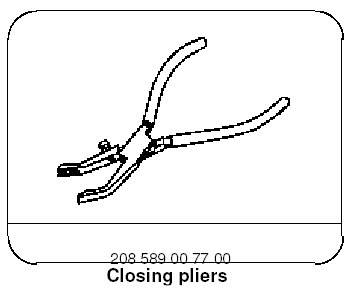

208 589 00 77 00, Closing pliers
