Body - Trunk Lid Spring Replacement Information
Date: July 12, 2011Order No.: P-B-88.50/86
Group: 88
SUBJECT: MY-All, Model 207.4 up to 120417
Trunk Lid Torsion Spring
If it is necessary to replace a torsion spring unit, regard the following:
1. Refer to EPC-net for all current part numbers of the torsion spring unit.

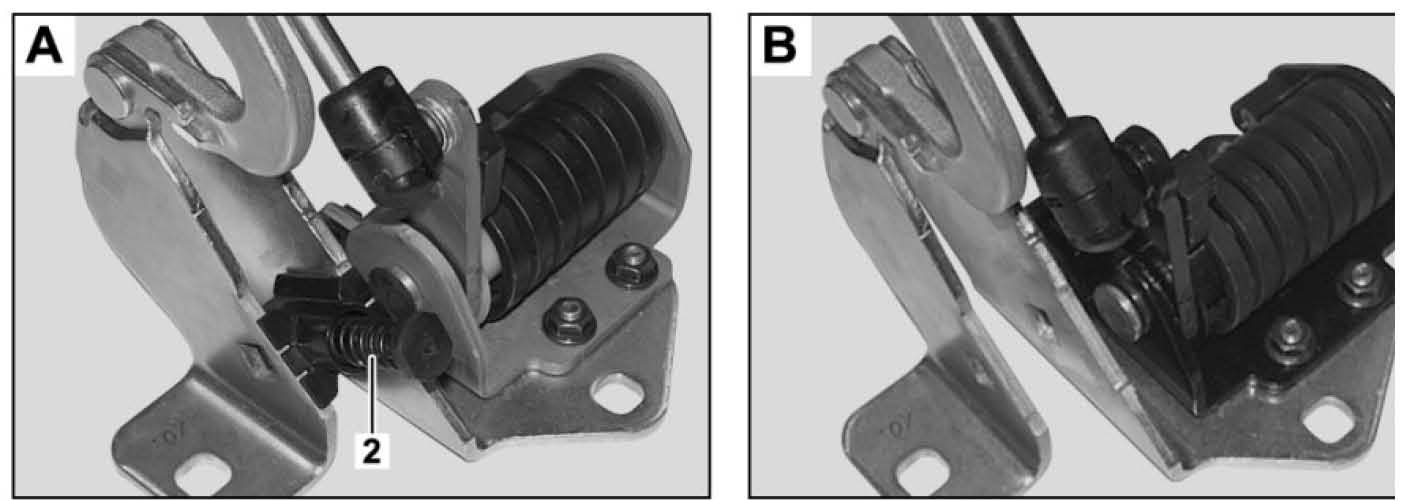

Figure 2. Ejector Spring A (2) no longer available..
2. The ejector spring (Figure 2) (2) is no longer available.
3. Always replace the ejector spring unit in pairs.
Figure 1. Locking wedge.
4. Remove the retainer lock (1) (Figure 1) after installation by partially closing the trunk lid.
