E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Wiper Blade
>>
Testing and Inspection
>>
AP82.30-P-8253EW Inspect Wiper Blade
AP82.30-P-8253EW Inspect Wiper Blade
AP82.30-P-8253EW Inspect
Wiper Blade

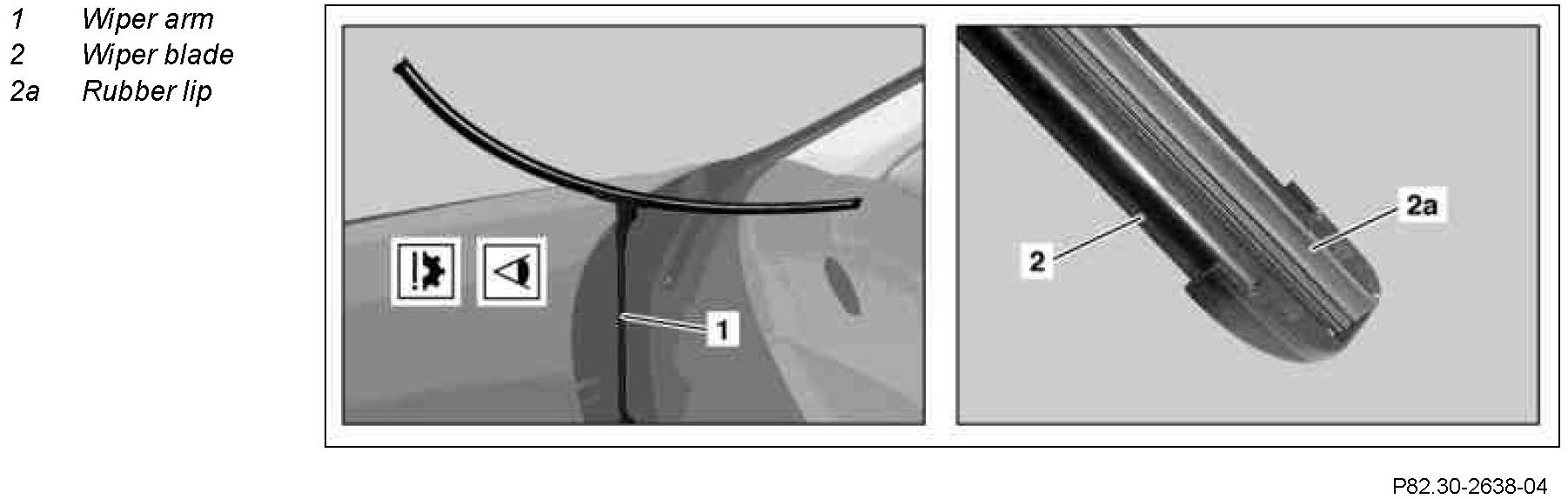

Component Identification:

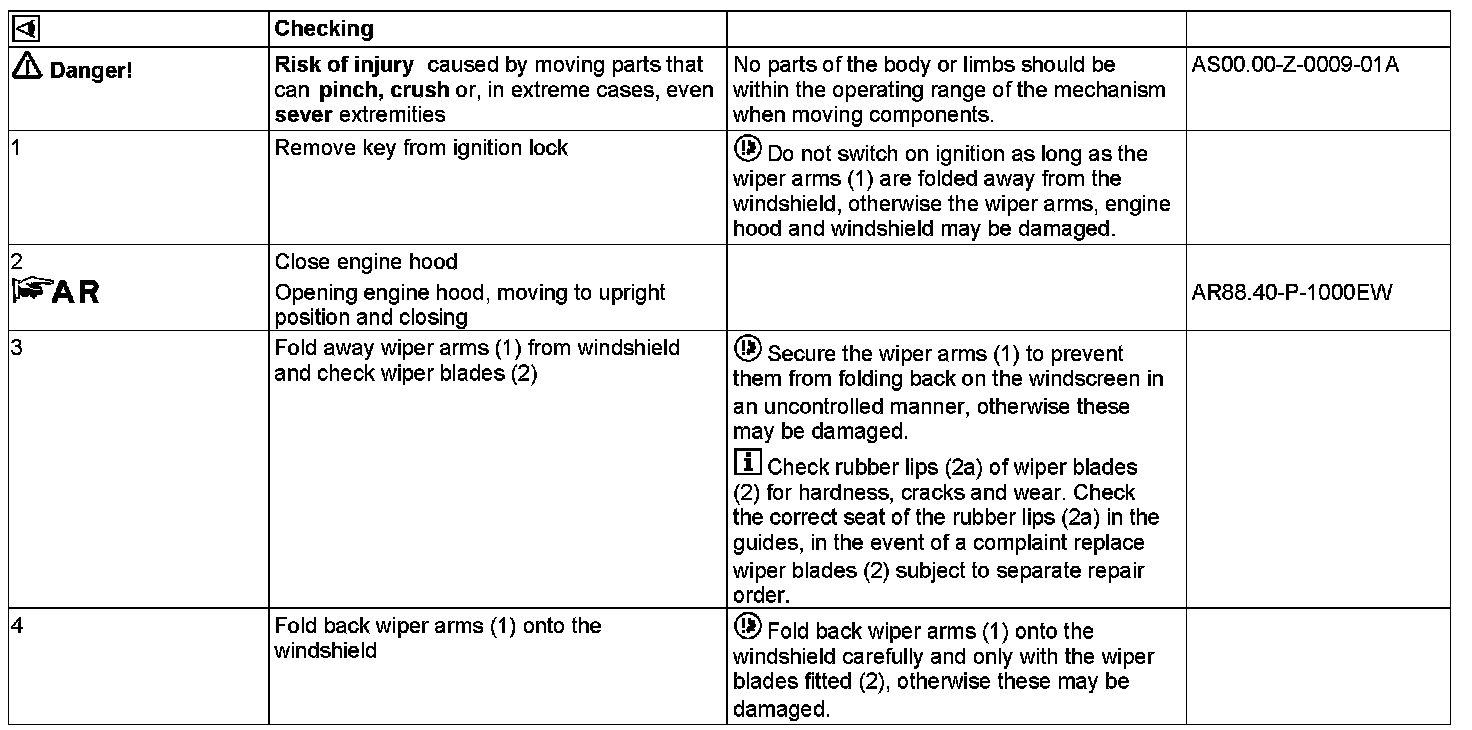

Steps 1 - 4:
