Mercedes Benz
>>
2011
>>
E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Windshield Washer Hose
>>
Service and Repair
Windshield Washer Hose: Service and Repair
AR82.35-P-6980CW Remove/Install
Windshield Washer Hose

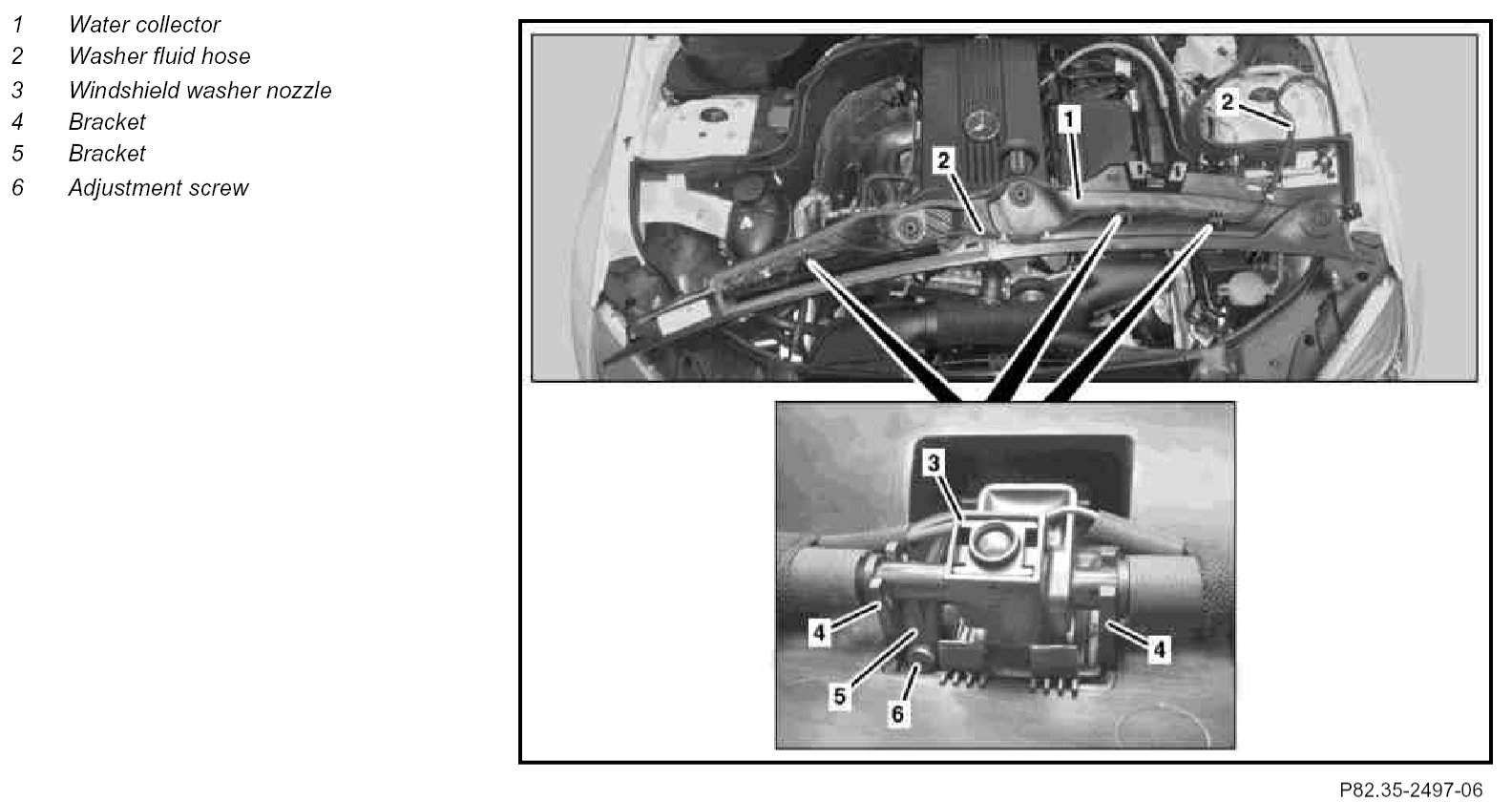

Component Identification:

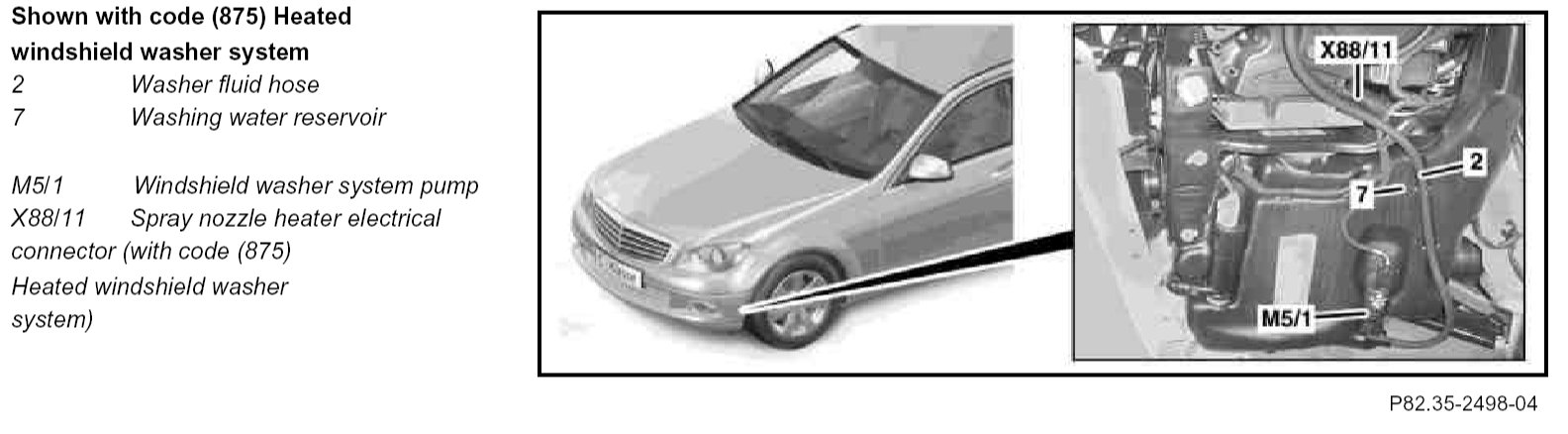

Component Identification:

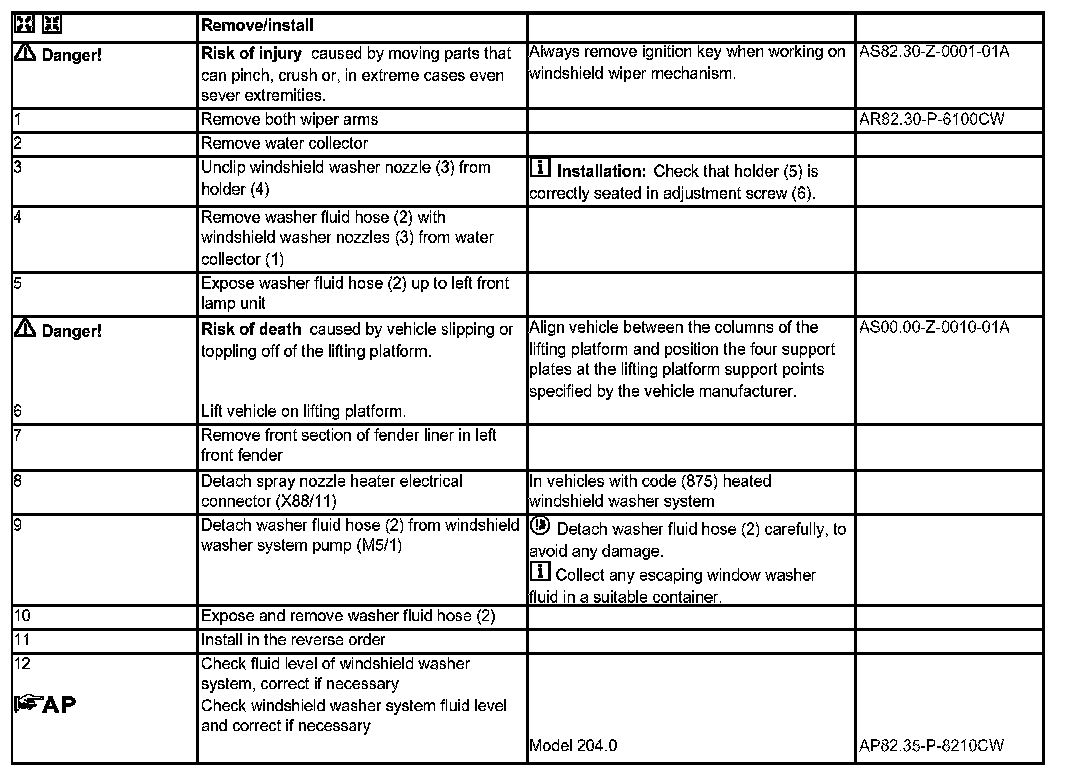

Steps 1 - 12:
