Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Wiper and Washer Systems >> Washer Fluid >> Adjustments

Washer Fluid: Adjustments

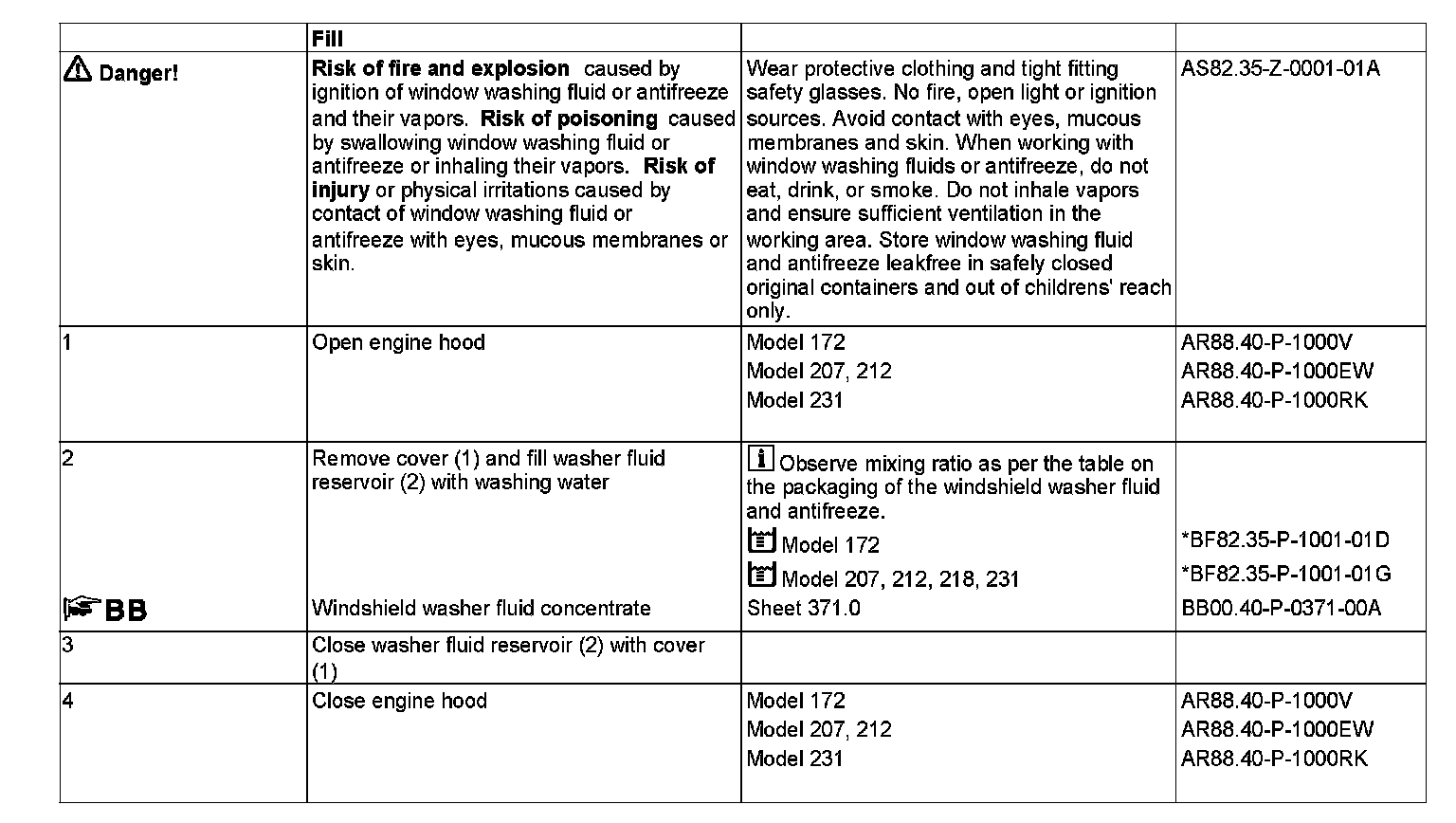

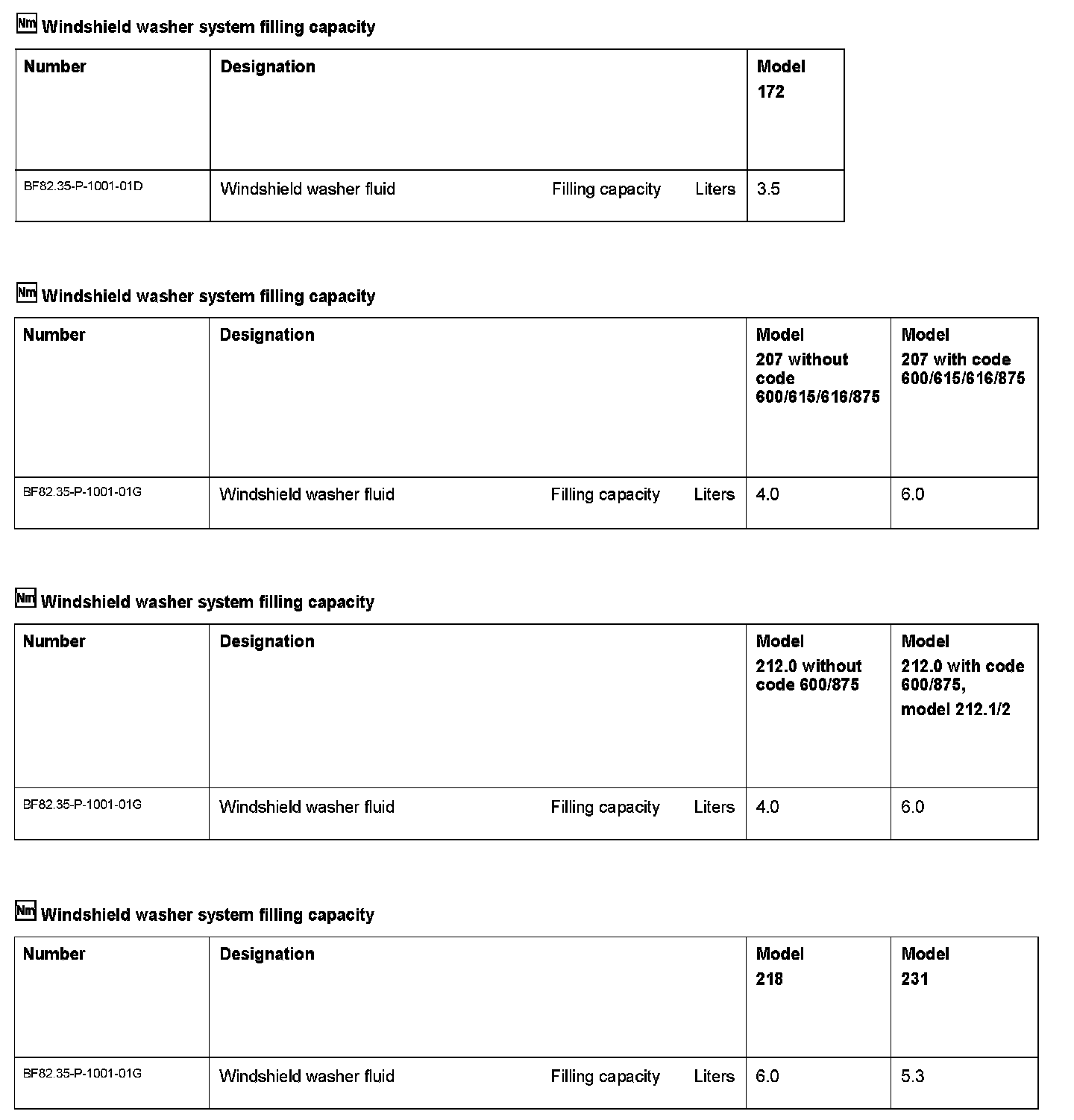

AP82.35-P-8210EW Windshield Washer System - Inspect Fluid Level, Adjust to Correct Level
MODEL 172, 207, 212, 218, 231

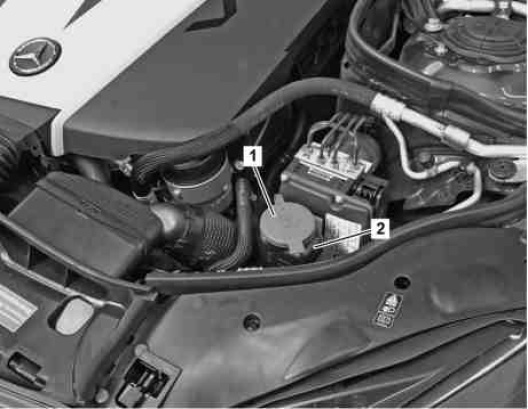

Shows model 212
