Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Windows and Glass >> Windshield >> Service and Repair >> AR67.10-P-1050EW Remove/Install Detachable Parts When Replacing Windshield

AR67.10-P-1050EW Remove/Install Detachable Parts When Replacing Windshield



AR67.10-P-1050EW Remove/Install Detachable Parts When Replacing Windshield

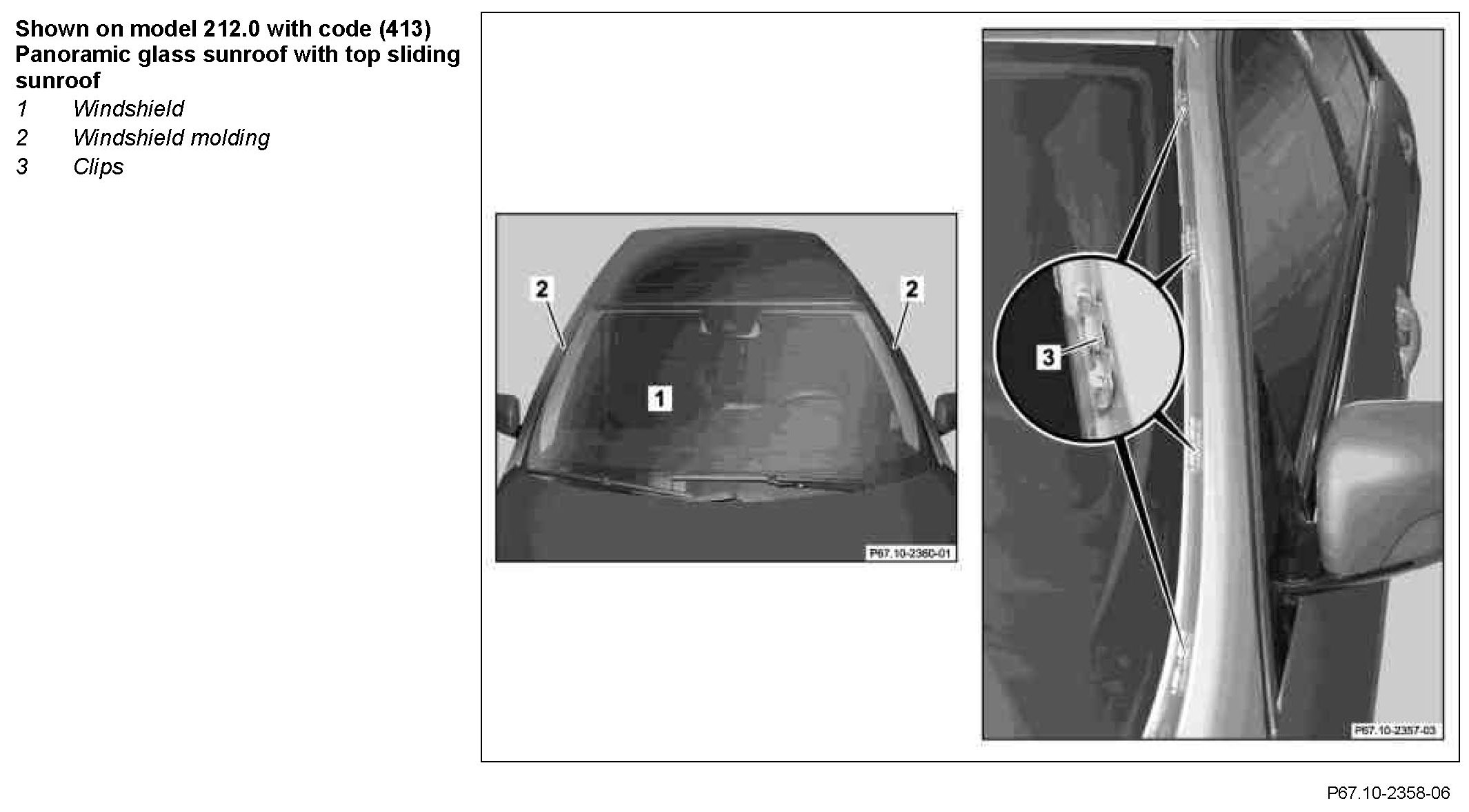

Component Identification:

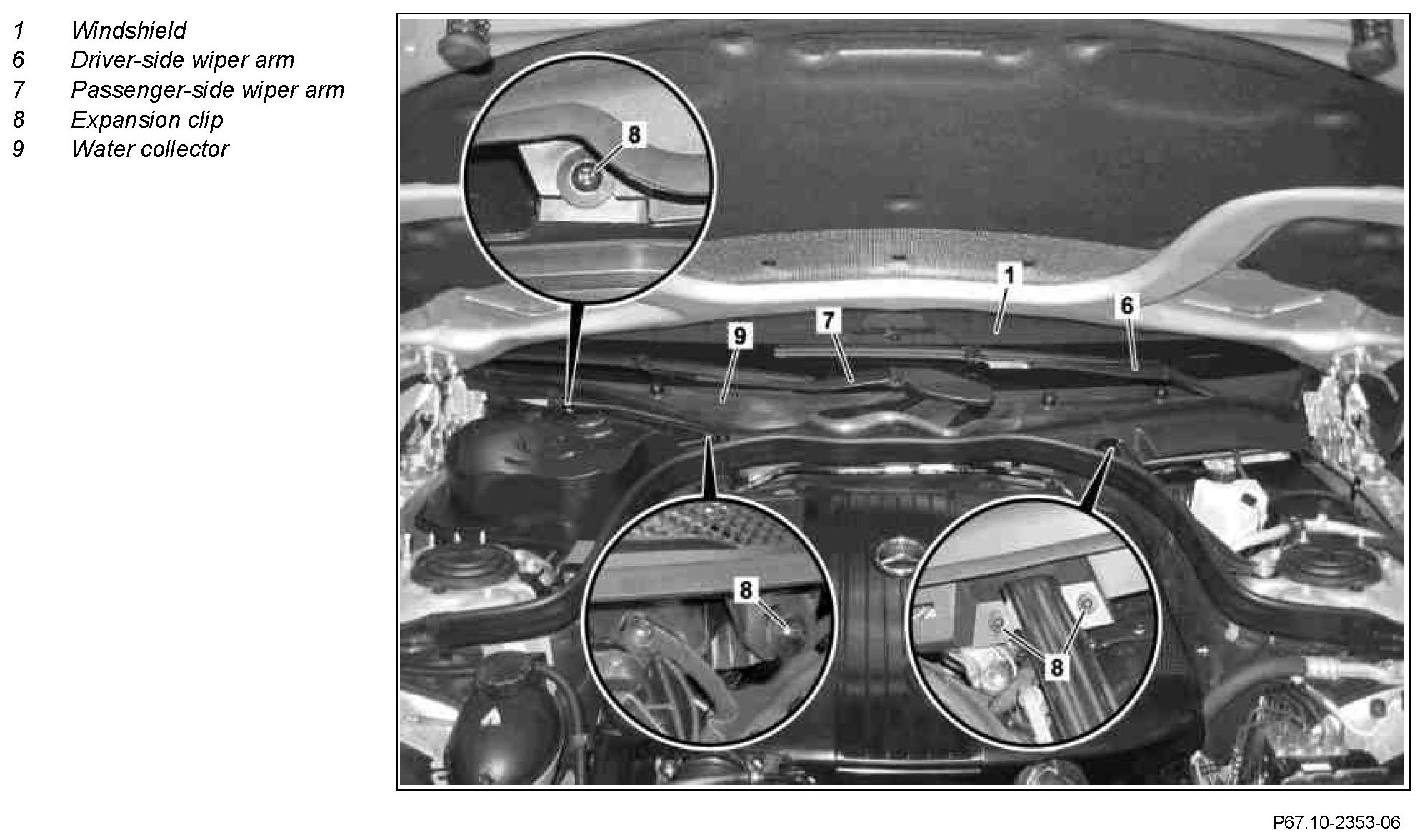

Component Identification:





Component Identification:

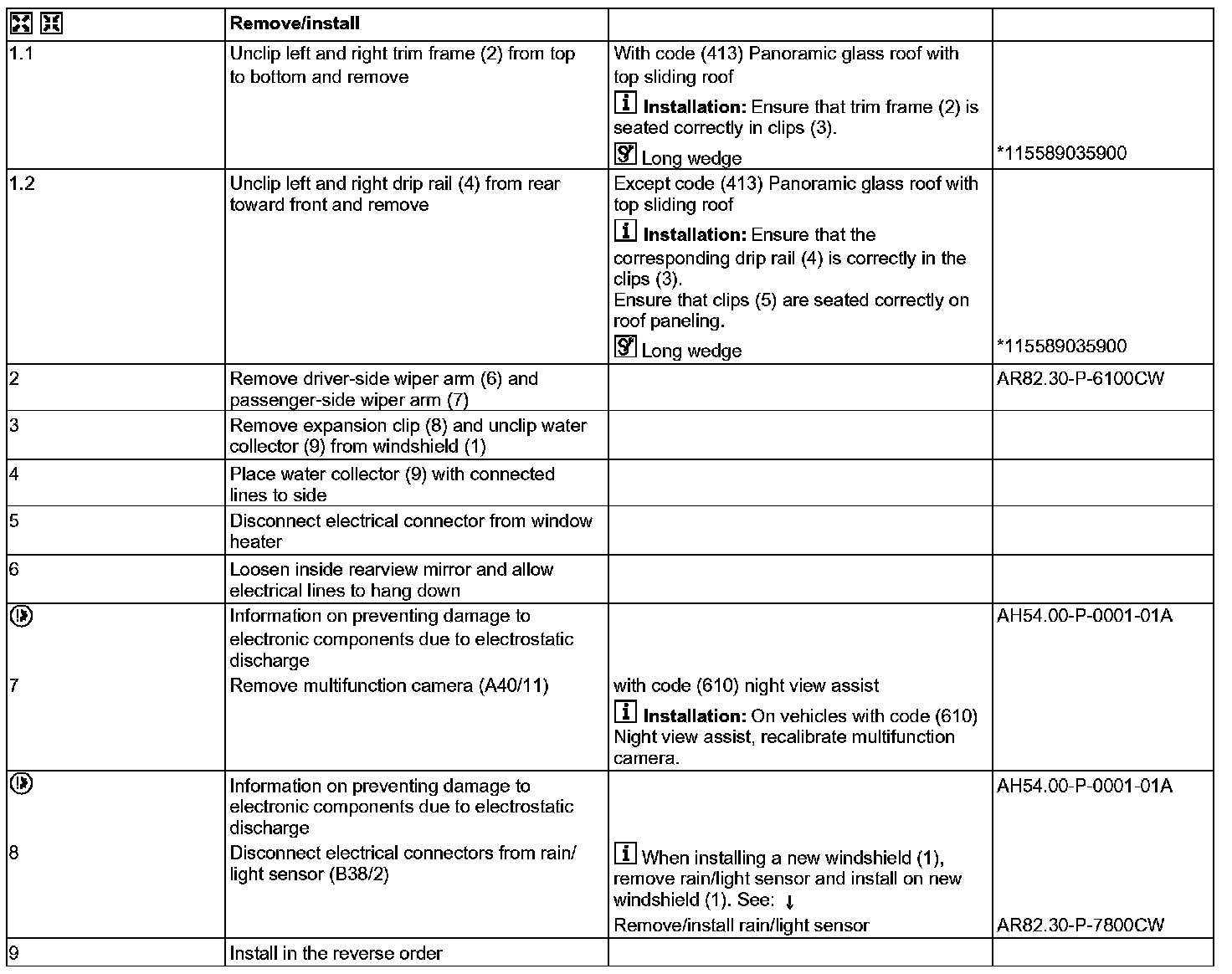

Steps 1.1 - 9:

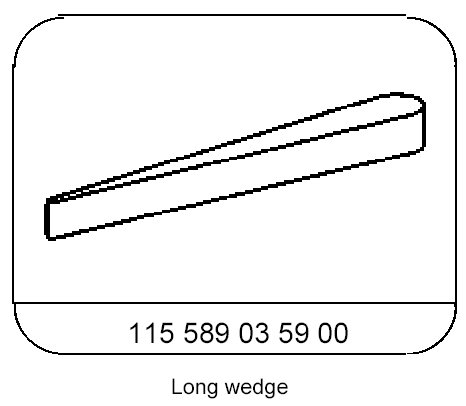

Special Tools:
