AR67.10-P-1000-12CW Prepare 1-Component Adhesive Cartridge



AR67.10-P-1000-12CW Prepare 1-Component Adhesive Cartridge


Special Tools:





Repair Materials:






1. Remove cartridge from repair kit and heat in cartridge preheater.
Cartridge preheater

Heating time is approx. 60 minutes.

2. Screw on application nozzle onto cartridge.
3. Insert cartridge into cartridge gun.
Cartridge gun

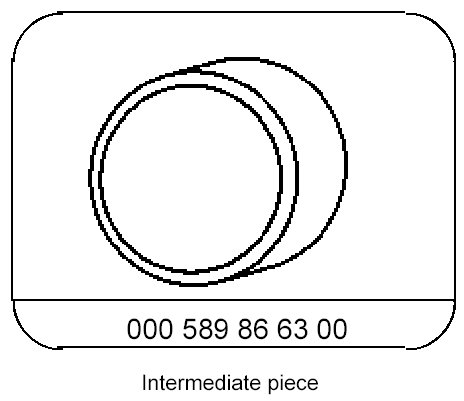

Use intermediate element to completely press out cartridge.
