Window Shade: Service and Repair



AR68.50-P-3400EW Remove, Install Roller Sun Blind
- with CODE (540) Electric rear window roller blind

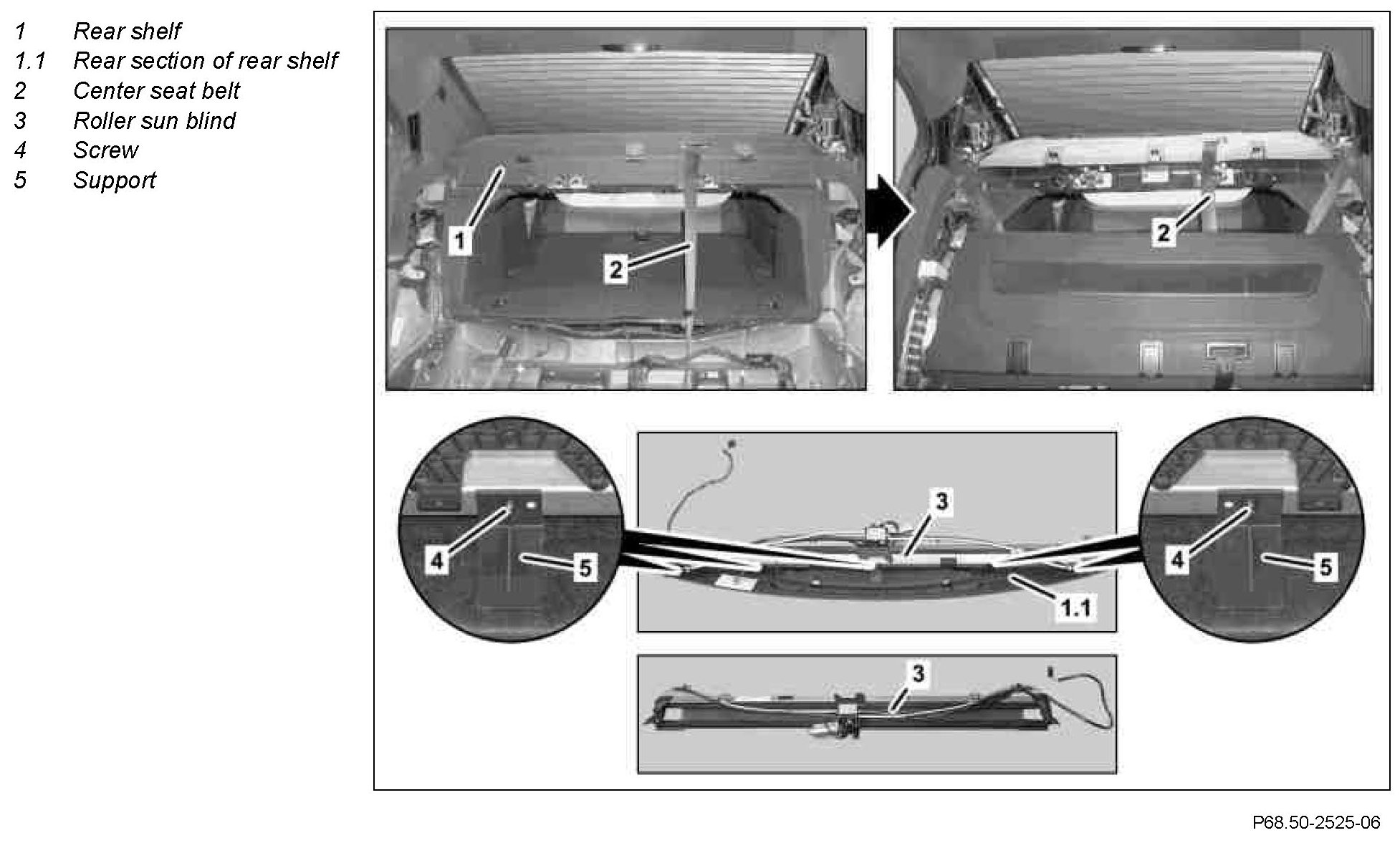

Component Identification:

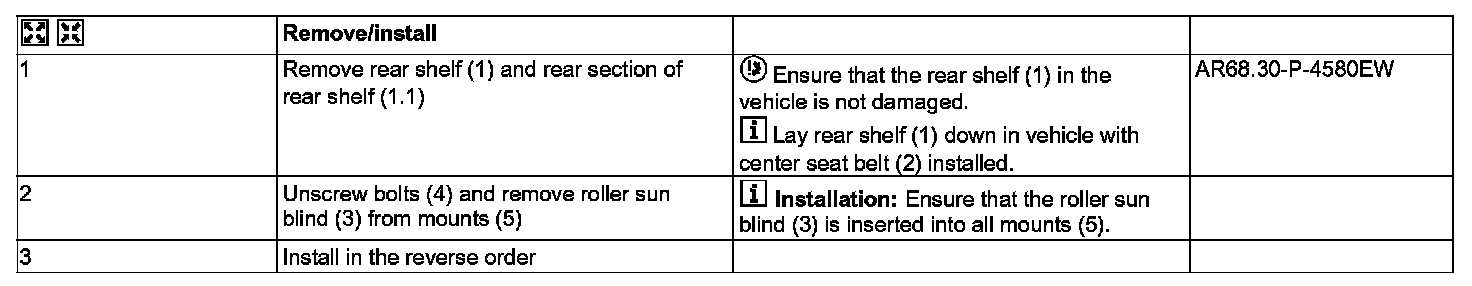

Steps 1 - 3:
