Rear Door Window Regulator: Service and Repair
AR72.12-P-1810EG Remove/Install Rear Door Window Lifter
- with CODE (Z04) Light armoring

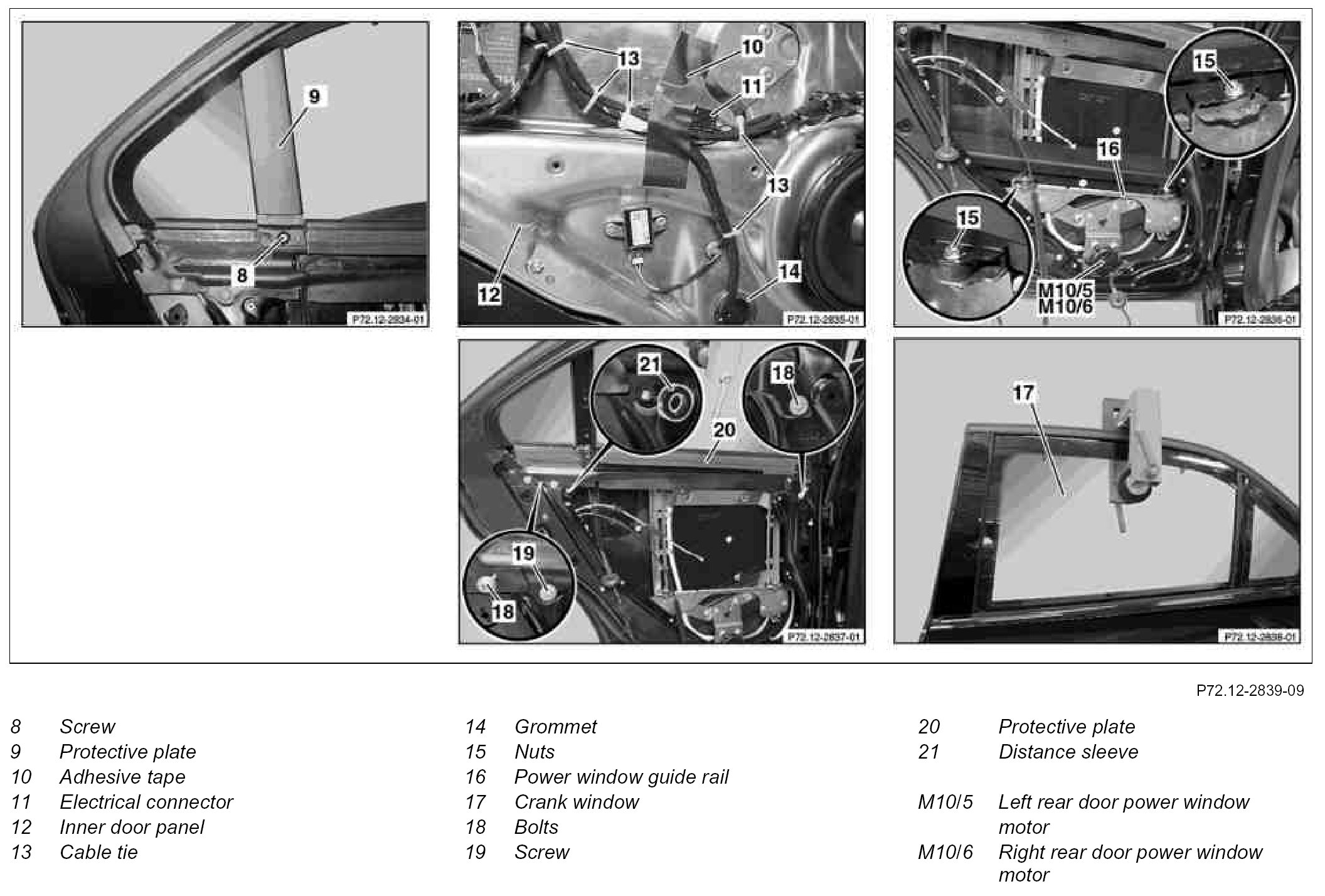

Component Identification:

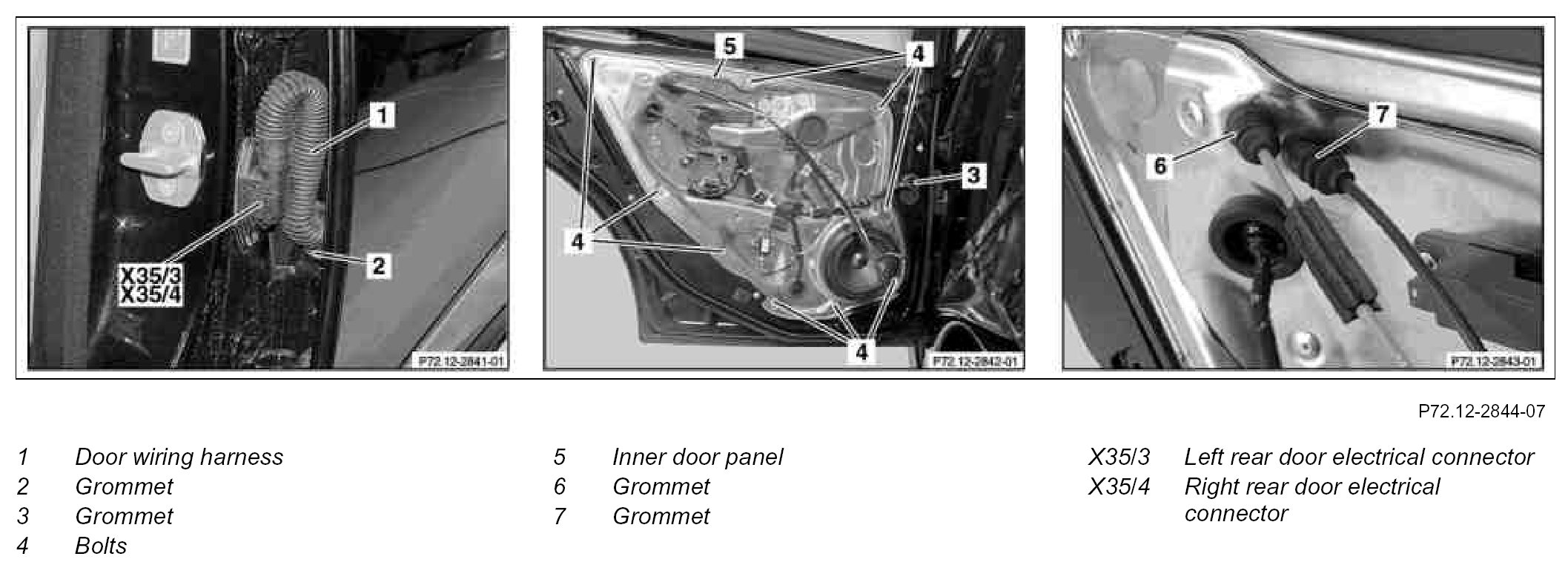

Component Identification:

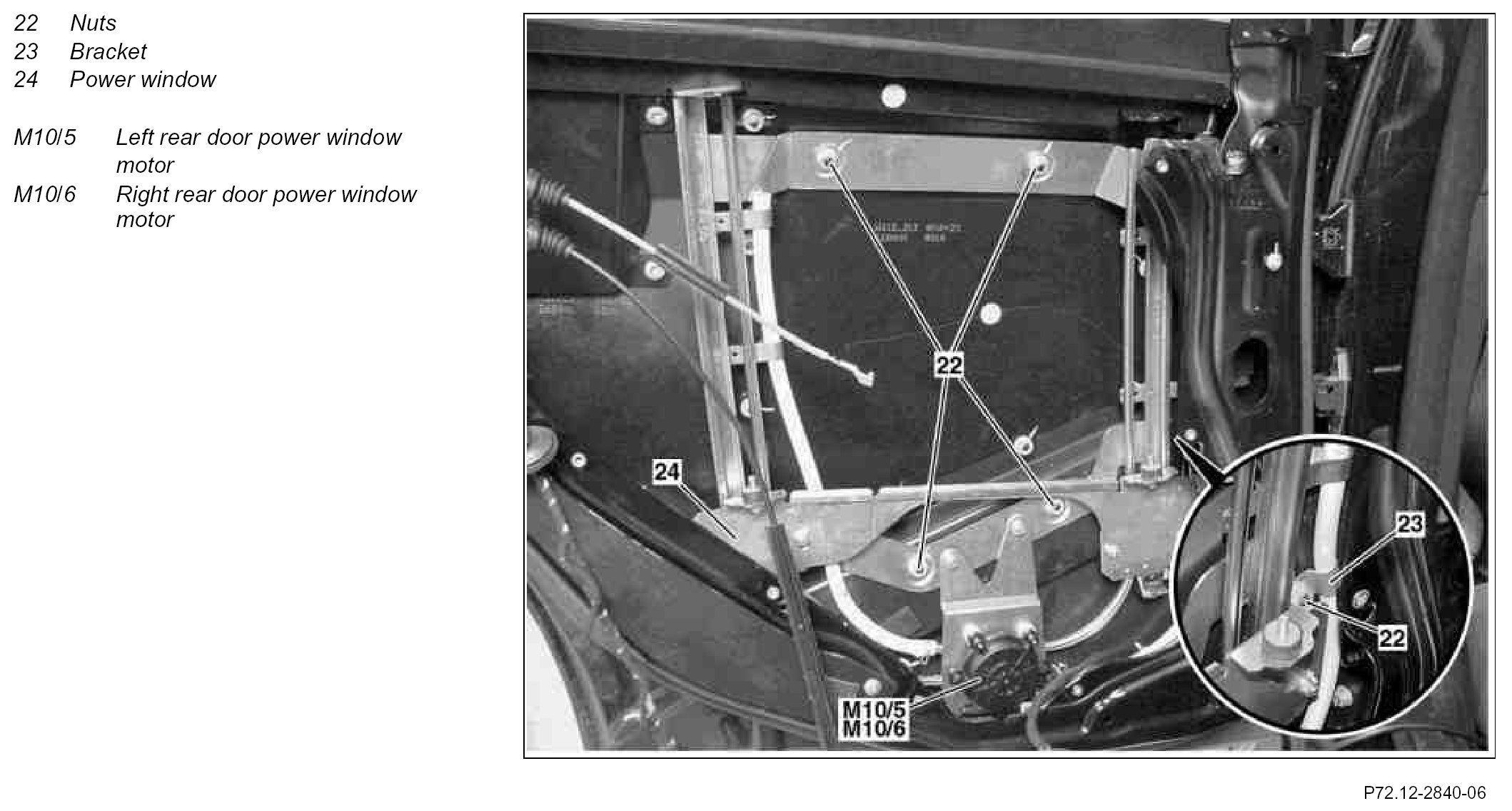

Component Identification:

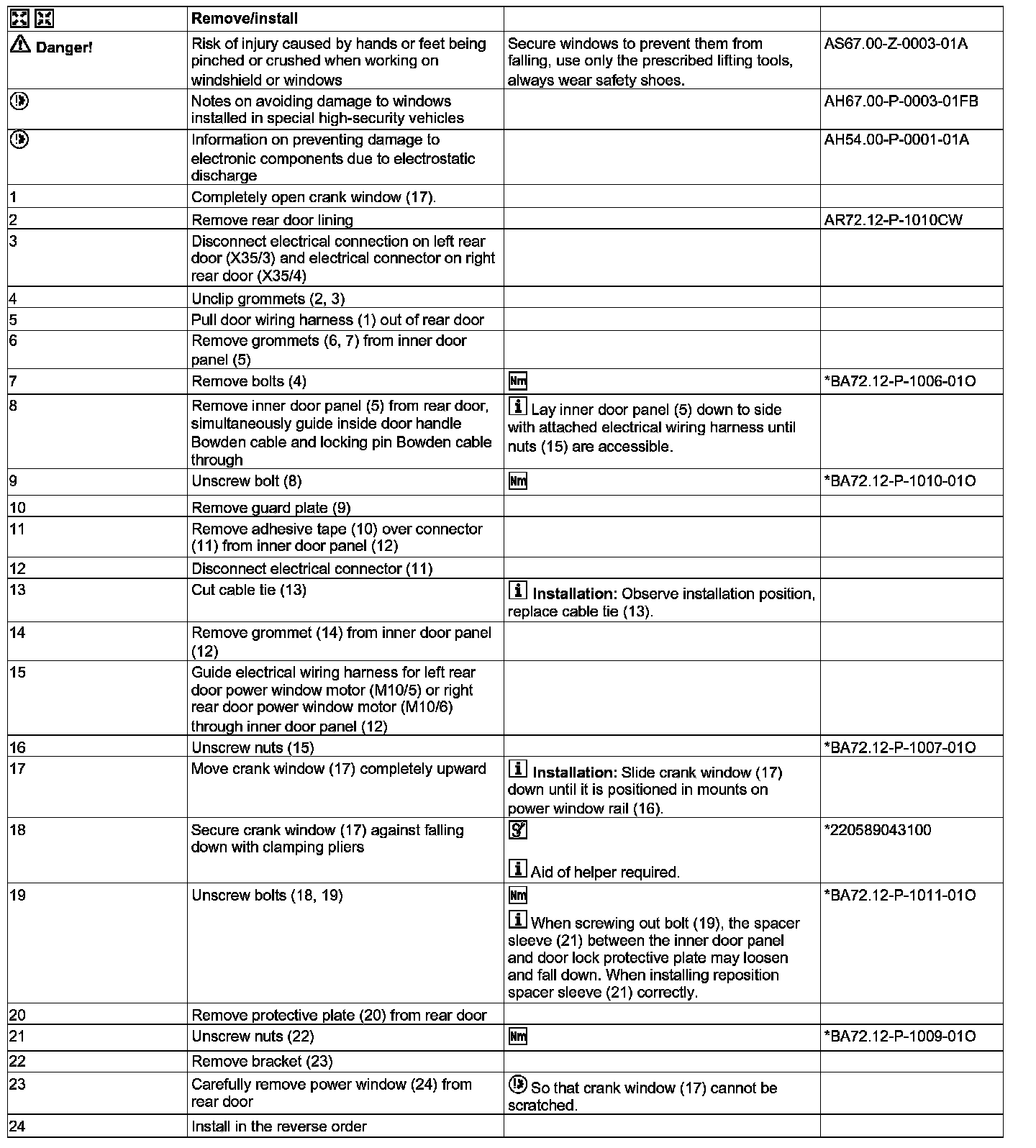

Steps 1 - 24:

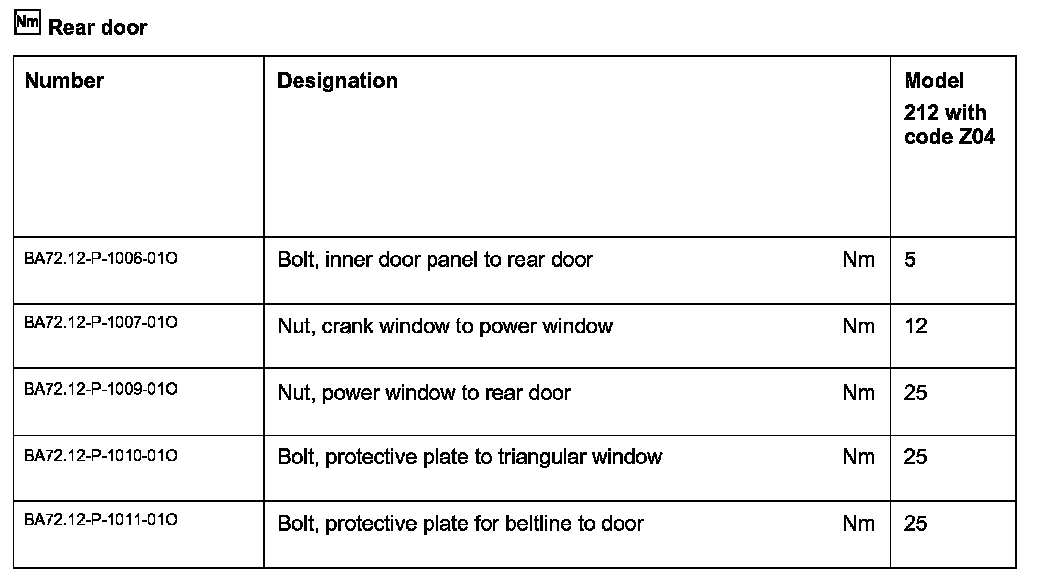

Rear Door:

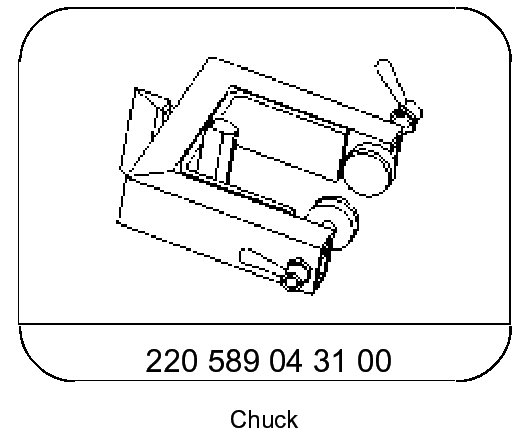

Special Tool:
