Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Glass >> Rear Door Window Glass >> Service and Repair >> AR72.12-P-1910EG Remove/Install Crank Window In Rear Door

AR72.12-P-1910EG Remove/Install Crank Window In Rear Door



AR72.12-P-1910EG Remove/Install Crank Window In Rear Door
- with CODE (Z04) Light armoring with rear power window

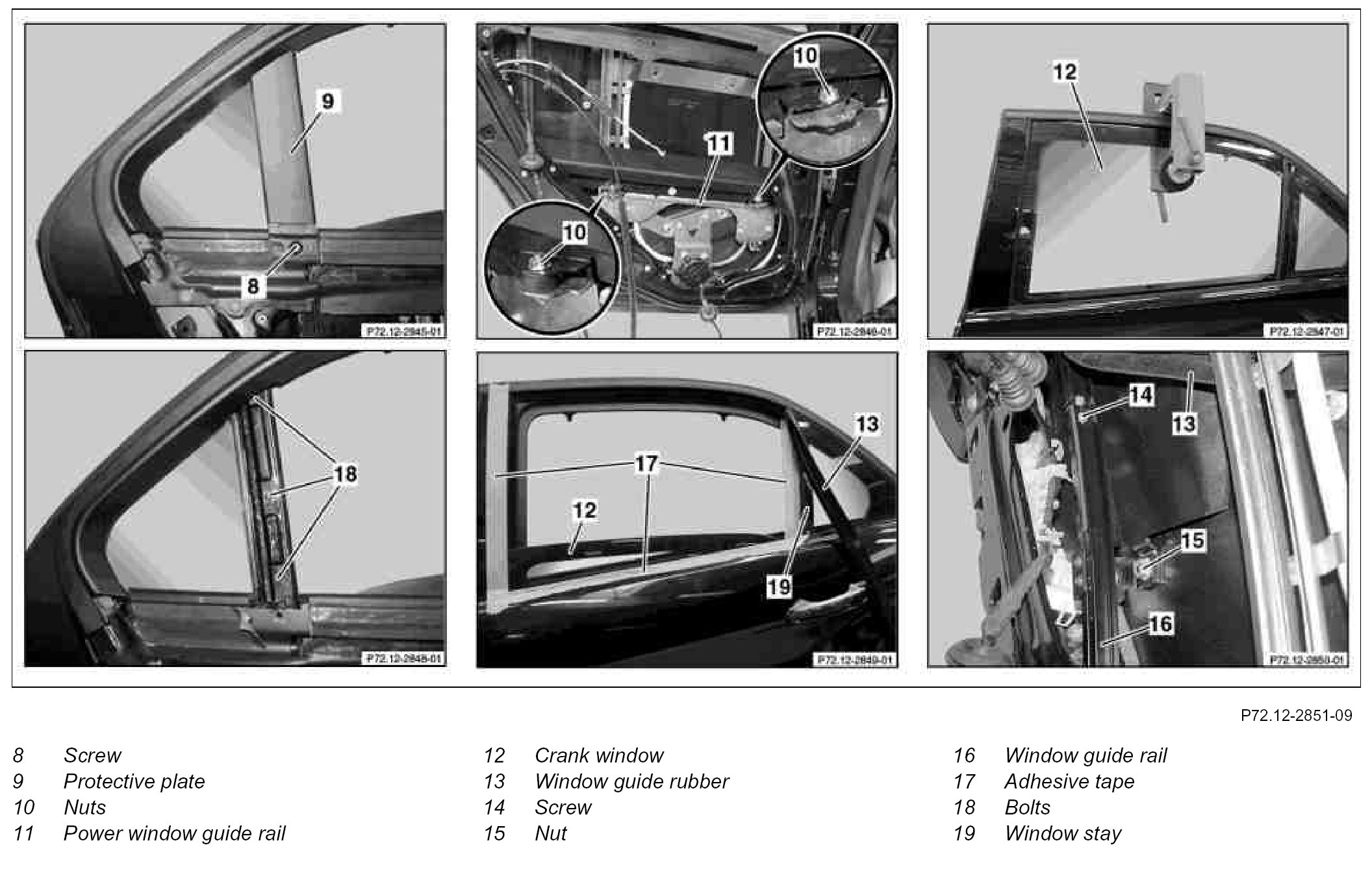

Component Identification:

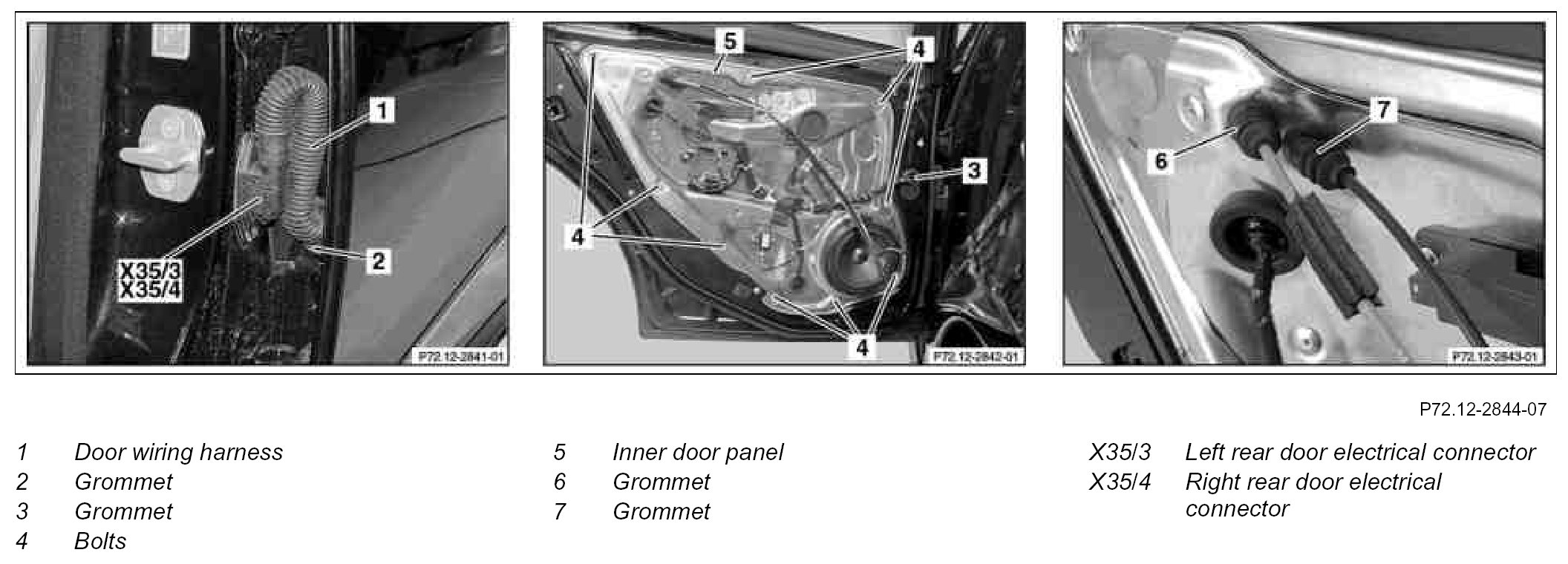

Component Identification:

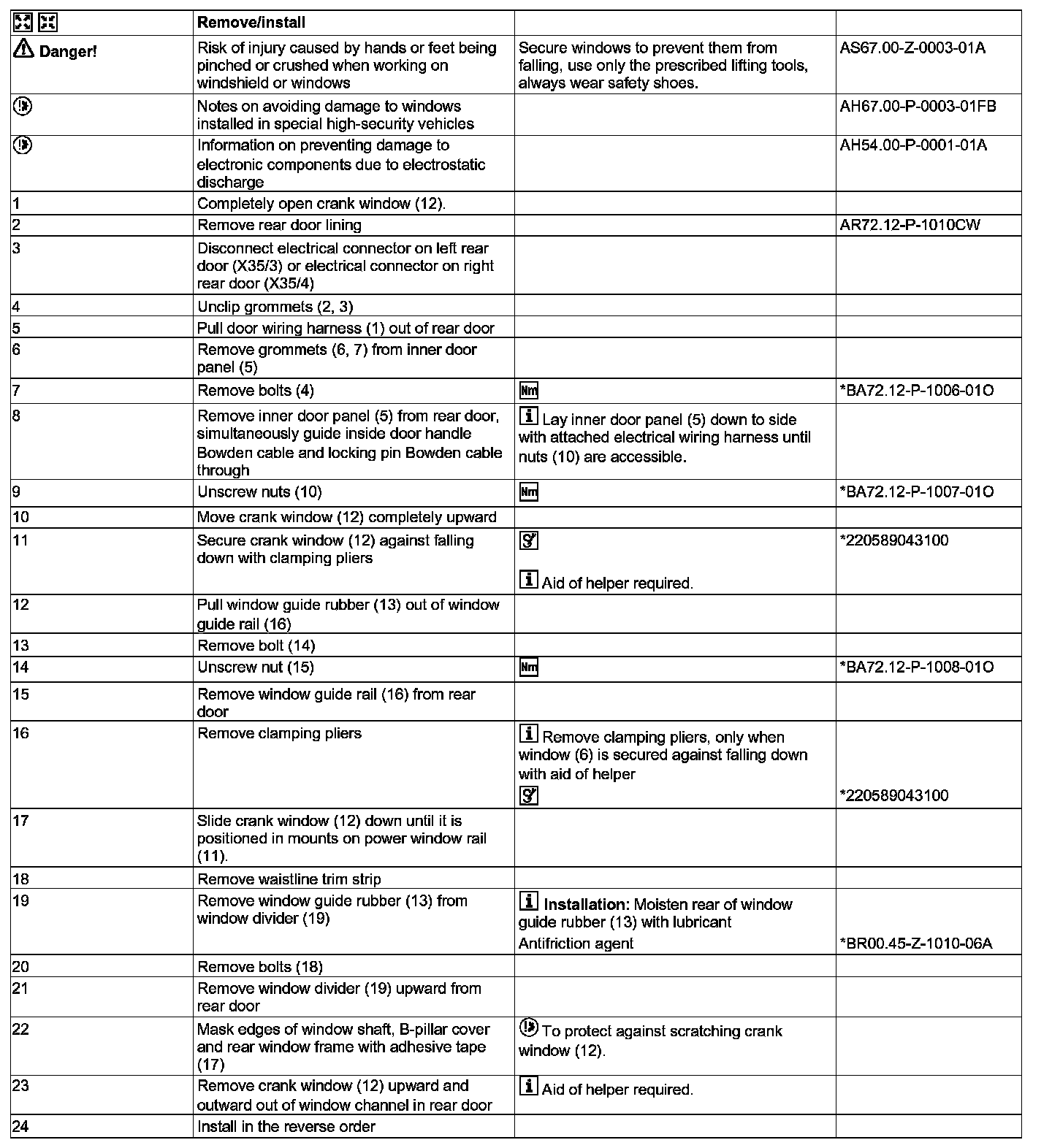

Steps 1 - 24:

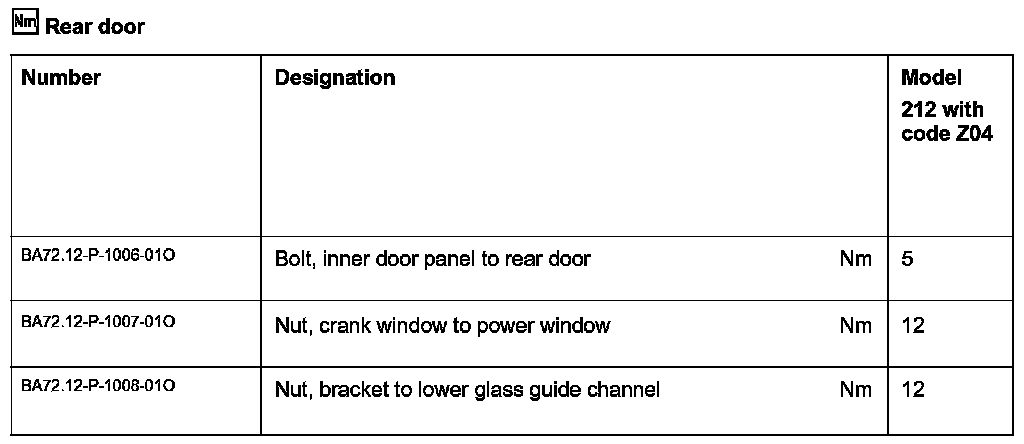

Rear Door:

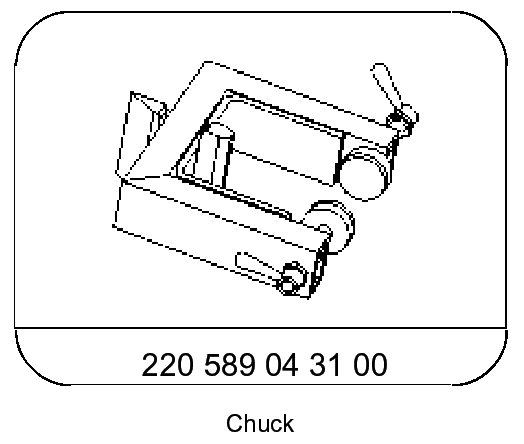

Special Tool:

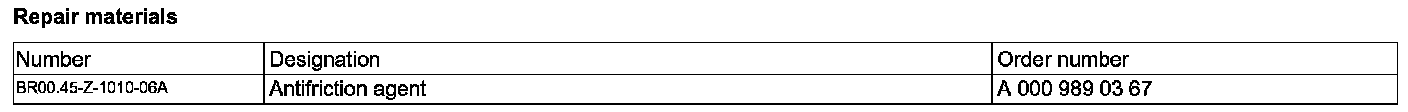

Repair Materials:
