AR72.12-P-1910CW Remove/Install Crank Window In Rear Door



AR72.12-P-1910CW Remove/Install Crank Window In Rear Door
- except CODE (Z04) Light armoring [model 212.0]

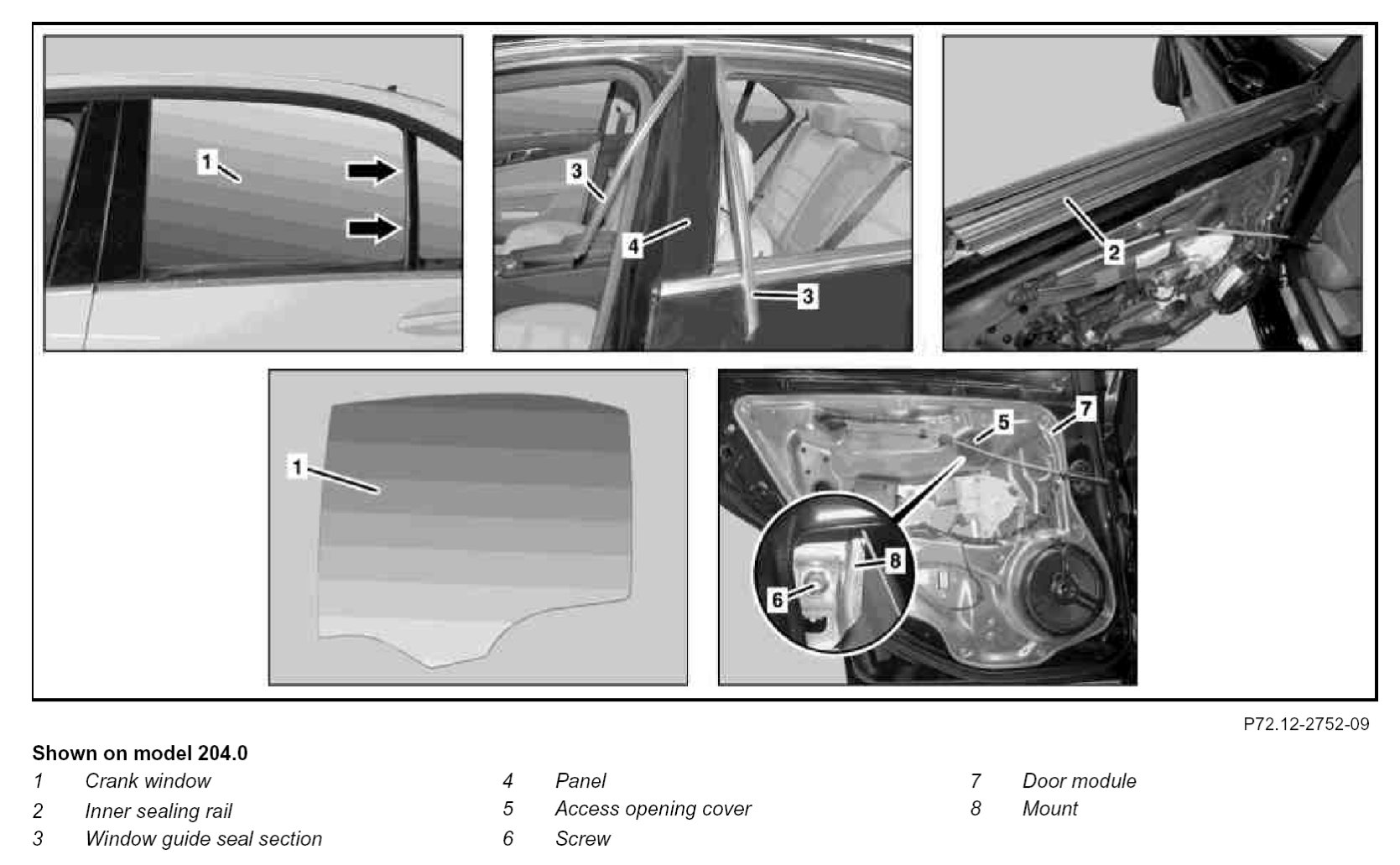

Component Identification:

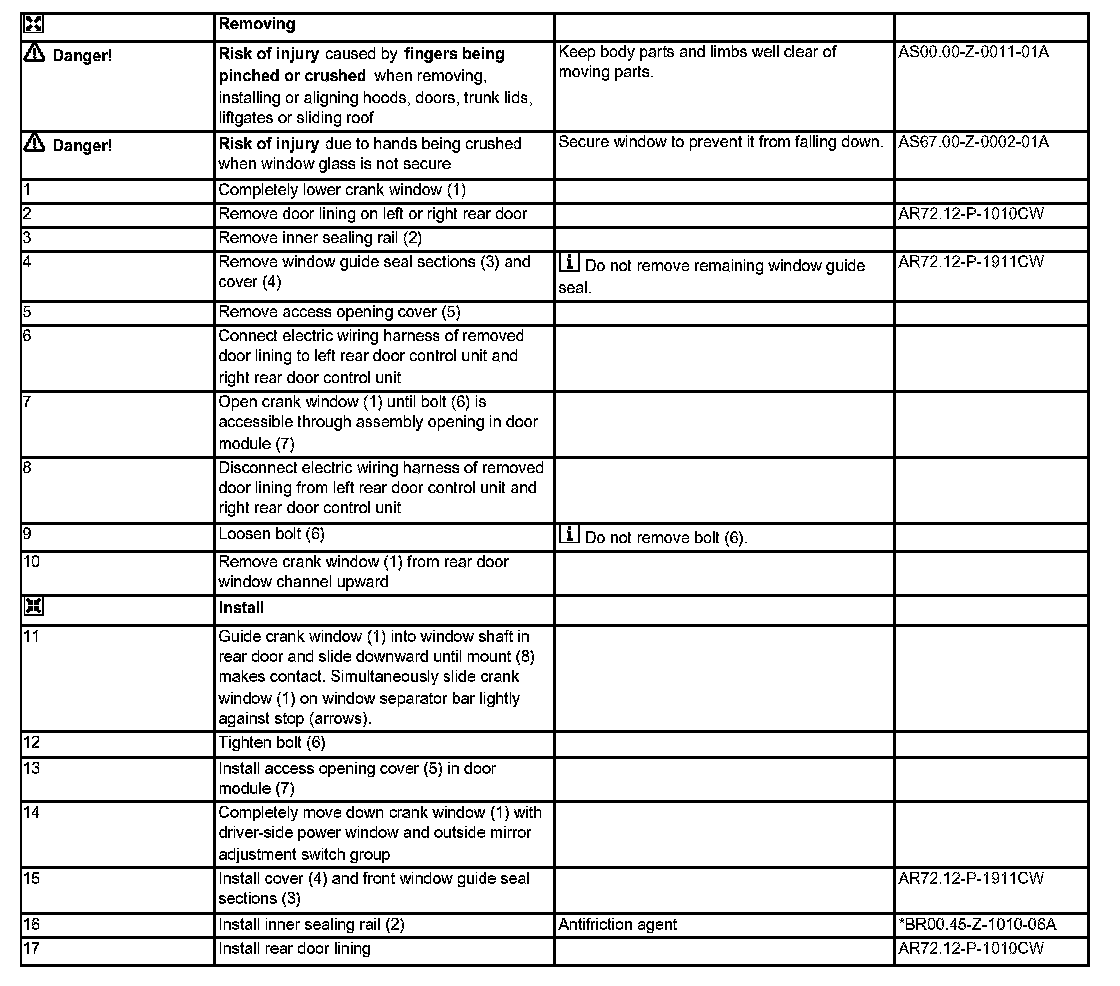

Steps 1 - 17:




Repair Materials:
