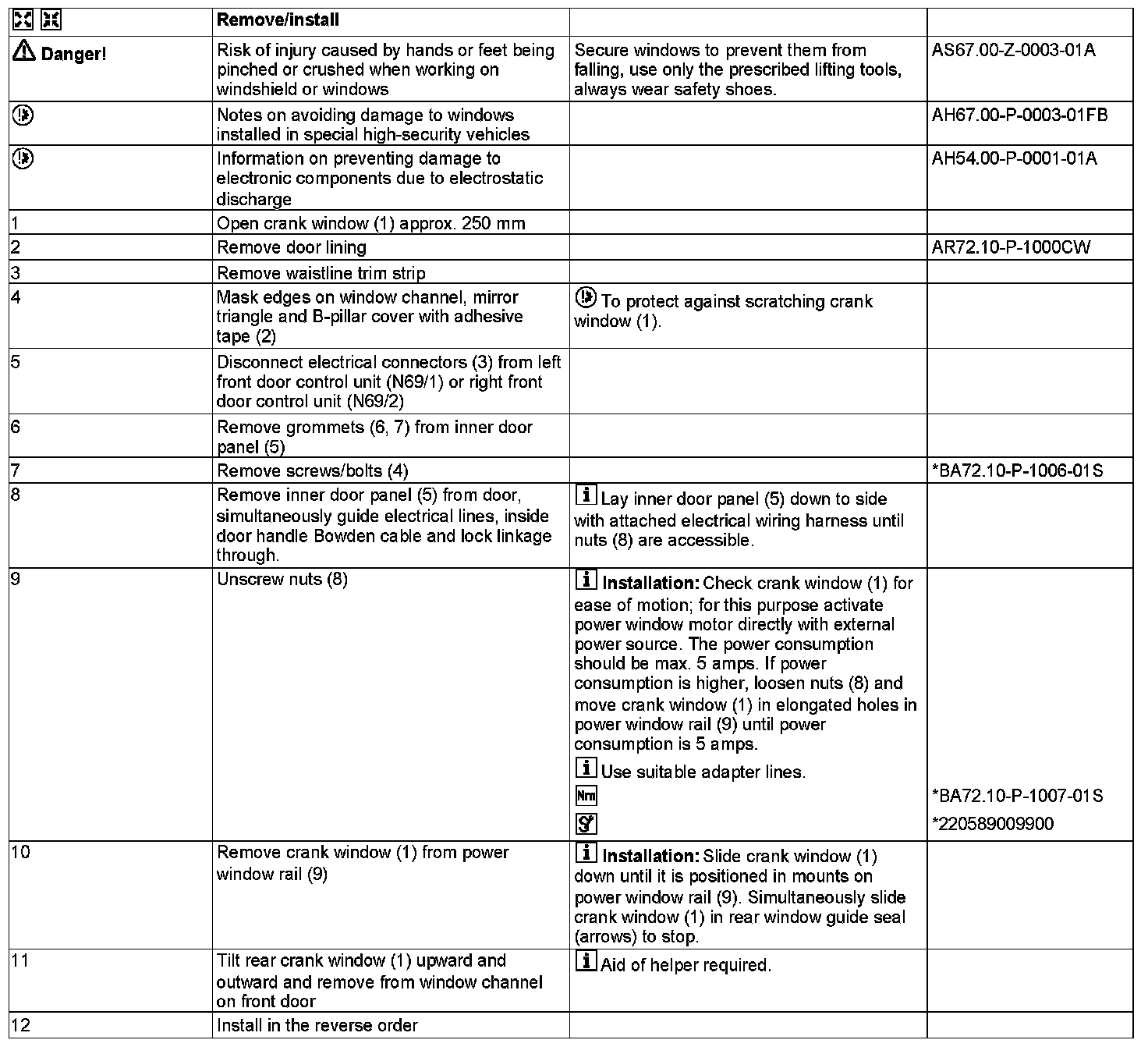

AR72.10-P-1900EG Remove/Install Crank Window in Front Door

AR72.10-P-1900EG Remove/Install Crank Window in Front Door
MODEL 212
- with CODE (Z04) Light armoring

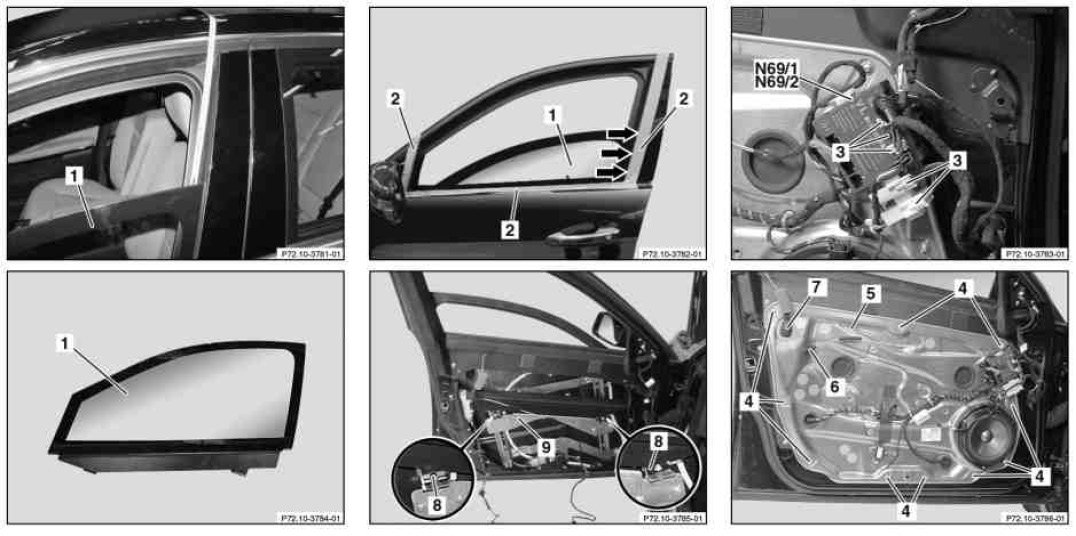

1 Crank window
2 Adhesive tape
3 Electrical connectors
4 Bolts
5 Inner door panel
6 Grommet
7 Grommet
8 Nuts
9 Power window guide rail

N69/1 Left front door control unit
N69/2 Right front door control unit














220 589 00 99 00
Electrical connection kit
