AR72.10-P-1900CW Remove/Install Crank Window In Front Door



AR72.10-P-1900CW Remove/Install Crank Window In Front Door
- except CODE (Z04) Light armoring [models 212]

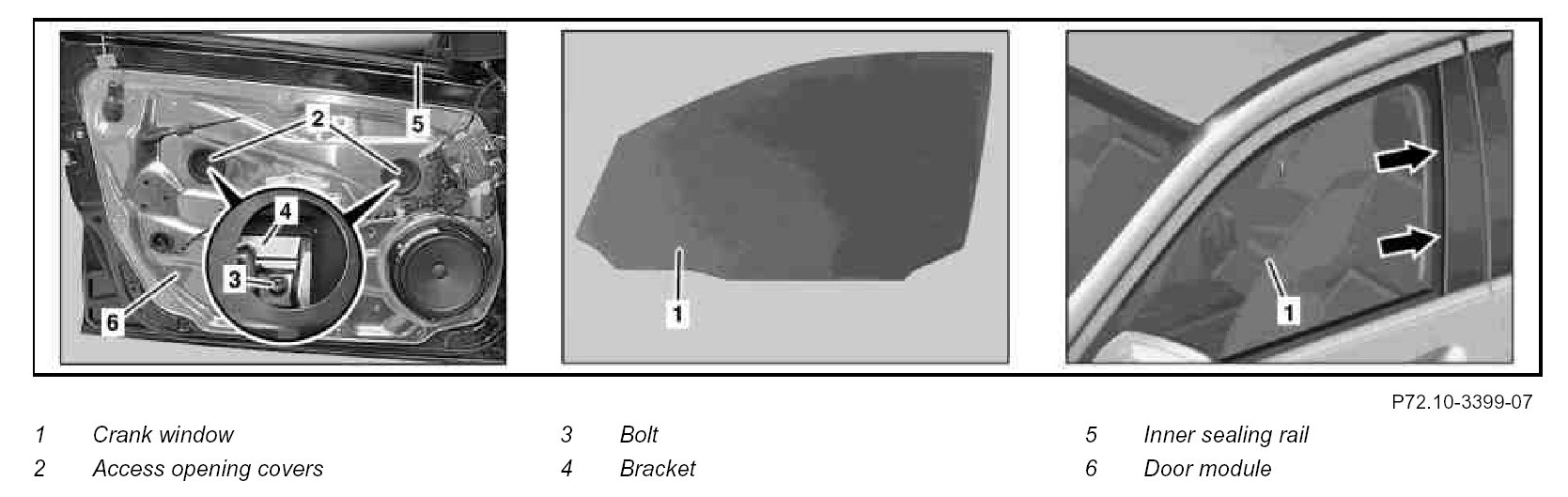

Component Identification:

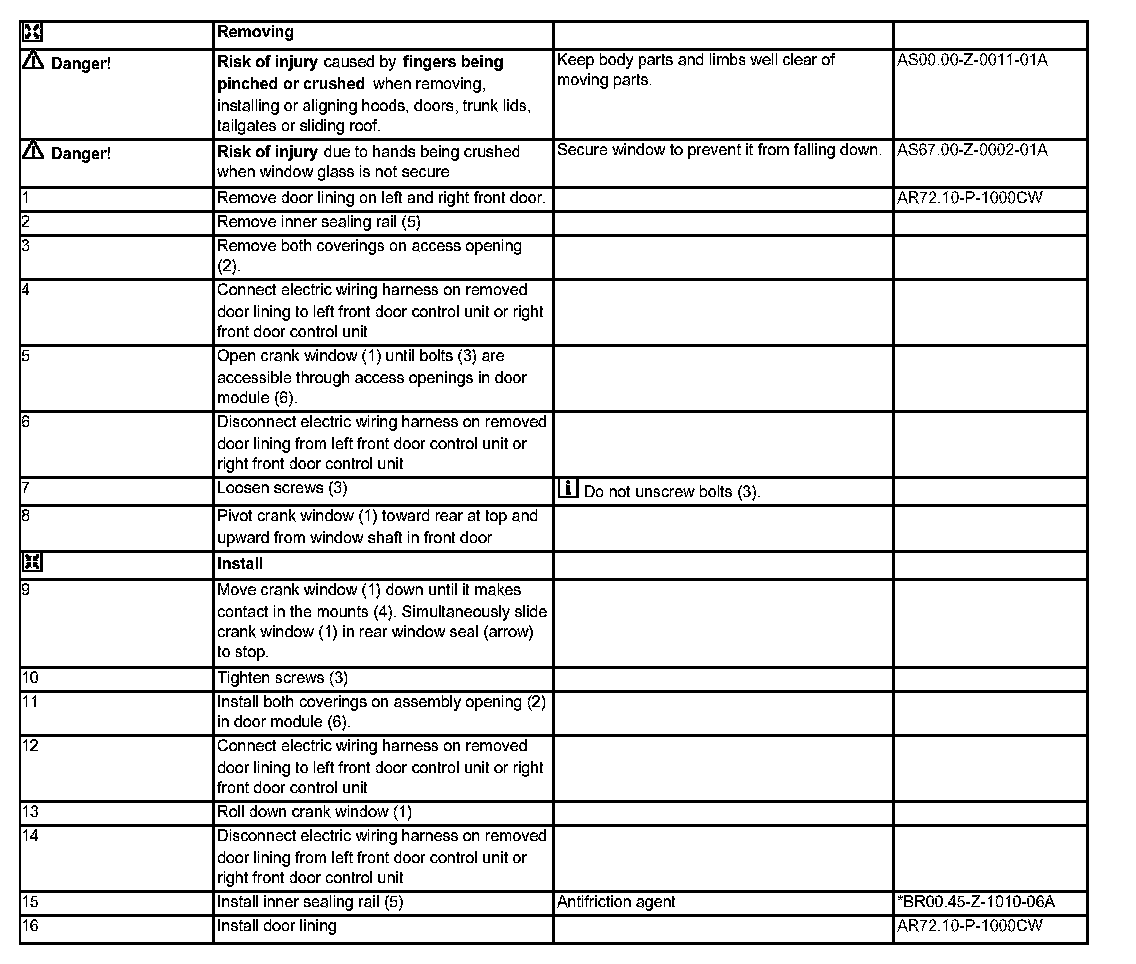

Steps 1 - 16:

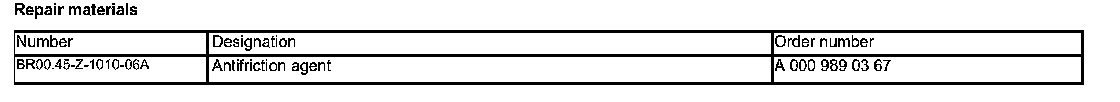

Repair Materials:
