AR67.20-P-2000EG Remove/Install Rear Wall Window
AR67.20-P-2000EG Remove/Install Rear Wall Window
AR67.20-P-2000EG Remove/Install Rear Wall Window
MODEL 212.0
-
with CODE (Z04) Light armoring

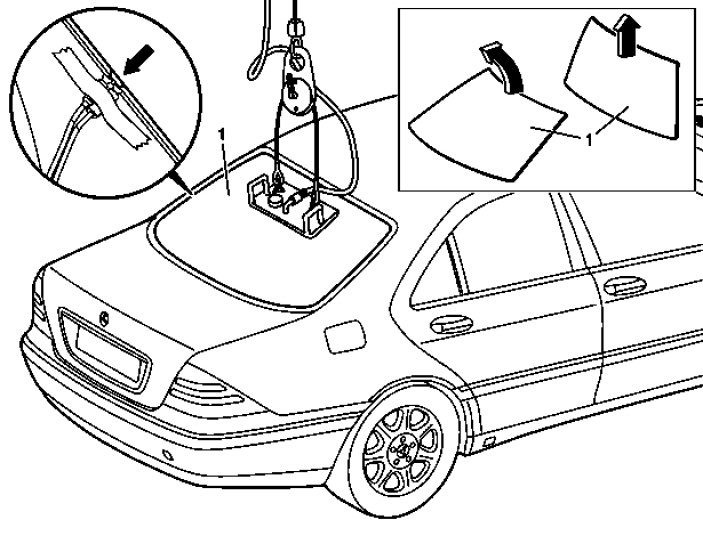

Shown on model 220
1 Rear window
000 589 86 63 00
Intermediate piece
129 589 03 21 00
Feeler gauge
