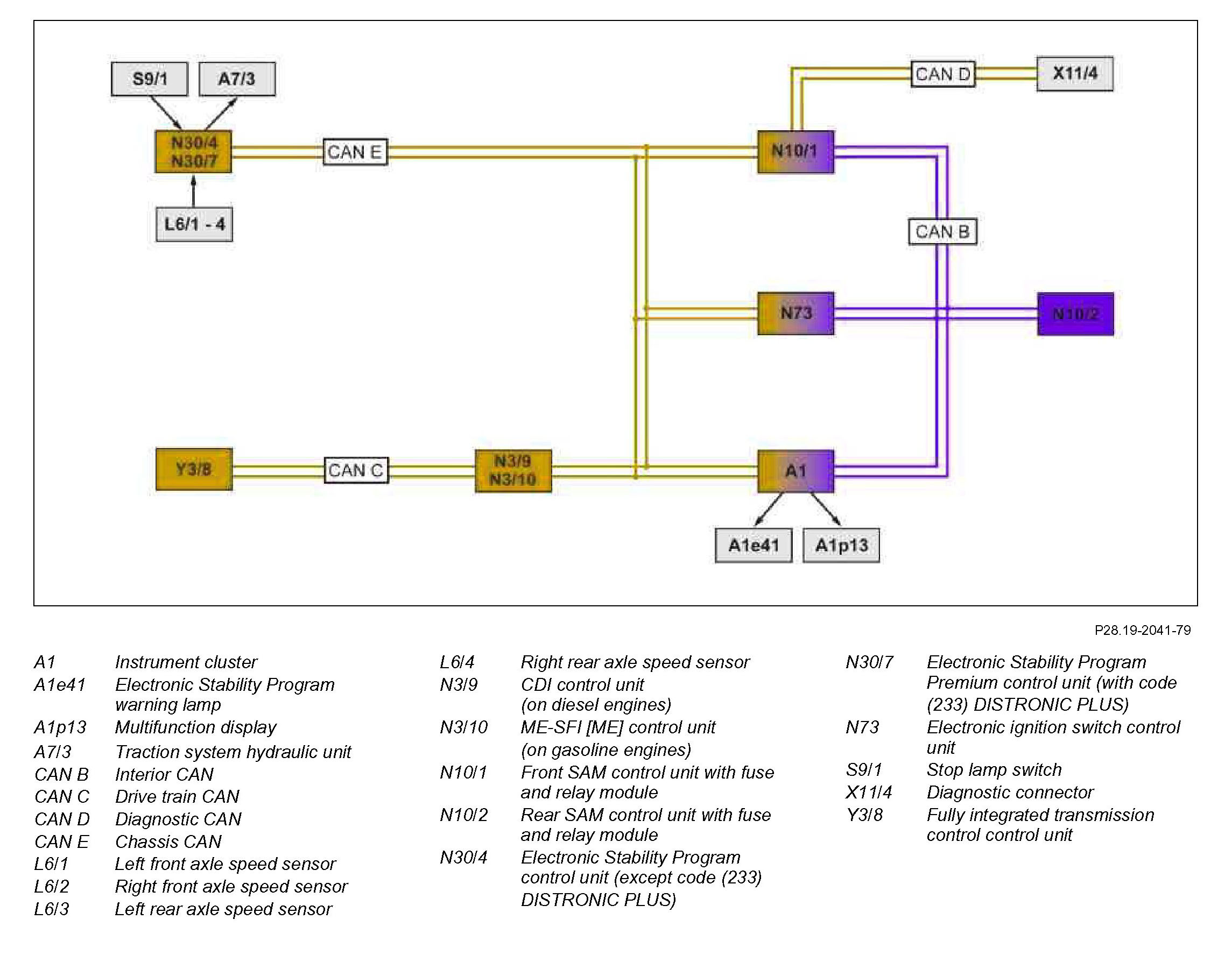

GF28.00-P-0001-04AVA Automatically Controlled All-Wheel Drive (4MATIC), Block Diagram



GF28.00-P-0001-04AVA Automatically controlled all-wheel drive (4MATIC), block diagram
- Transmission 722.960/961/962
